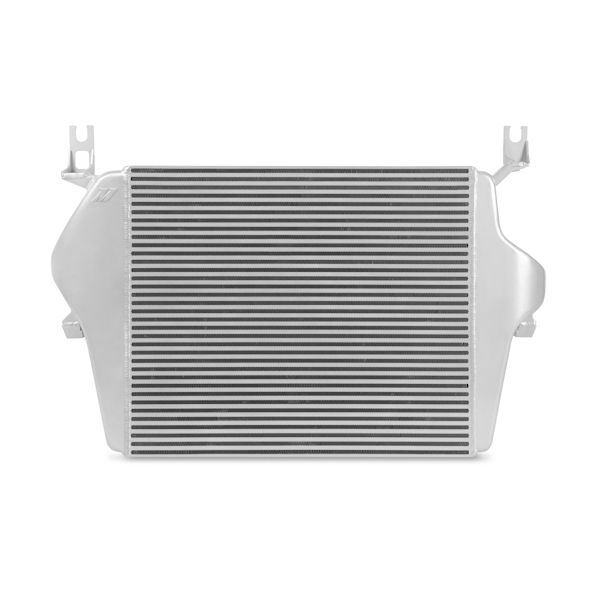

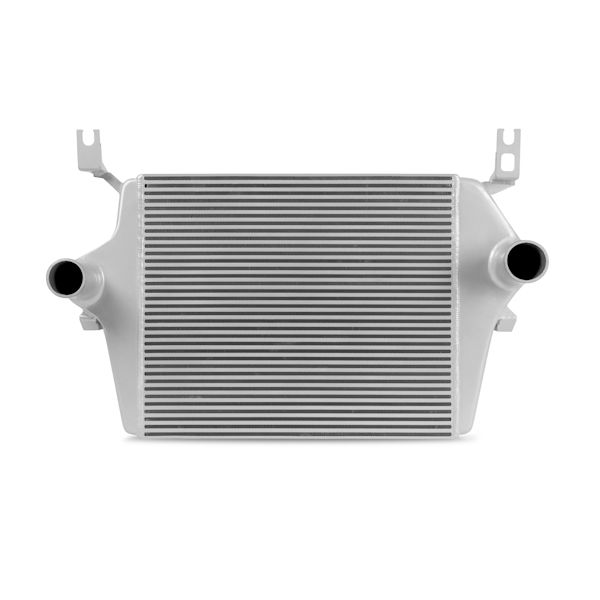

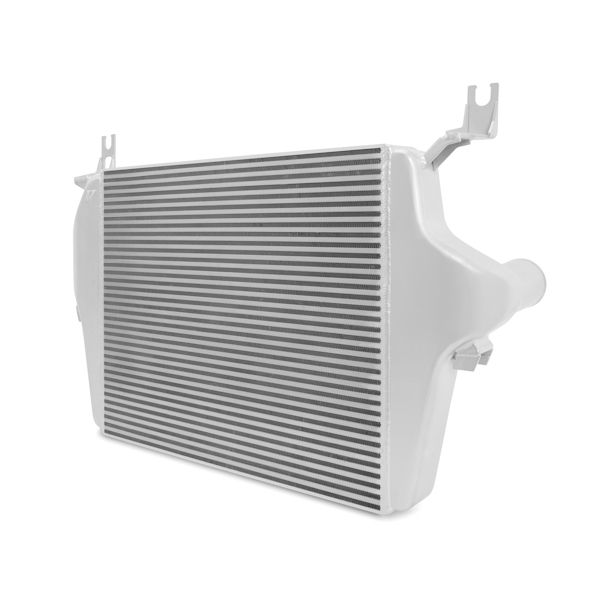

Ford 6.0L Powerstroke Intercooler, Silver

this results in numerous performance benefits including increased pressure tolerance and lower EGTs.We engineered this intercooler to provide substantial benefits on a stock truck, and also to support the power and boost levels of a highly modified truck.Offered in black or silver, the Mishimoto 6.0L Powerstroke intercooler is protected by our signature lifetime warranty.

Additional Attributes:

GTIN: 00748666005433
Install Difficulty: 3
OptionLabel: Silver
Prop 65 – Short Label: WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2003-2007 Ford 6.0L Powerstroke
SellingPoint02: 3.35-in bar-and-plate core is 33-percent thicker than factory
SellingPoint03: 32.5-percent increase in core volume
SellingPoint04: End tanks strategically designed for optimal airflow
SellingPoint05: Air diverter in hot-side end tank reduces turbulence and evenly distributes airflow across core
SellingPoint06: Reduces turbo stress and extends life
SellingPoint07: Available in Sleek Silver and Stealth Black
SellingPoint08: Provides improved airflow and lowers intake air temperatures
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2003-2007 Ford F-250 w/ 6.0L Powerstroke–2003-2007 Ford F-350 w/ 6.0L Powerstroke–2003-2007 Ford F-450 w/ 6.0L Powerstroke–2003-2007 Ford F-550 w/ 6.0L Powerstroke–2003-2005 Ford Excursion w/ 6.0L Powerstroke
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 21.54
TechSpec Core Length (in): 25.75
TechSpec Core Thickness (in): N/A
TechSpec Core Type: Bar-and-Plate
TechSpec Engine Codes: N/A
TechSpec Includes: (1) Mishimoto Intercooler–Mishimoto Lifetime Warranty
TechSpec Inlet (in): 3.25
TechSpec Installation Notes: N/A
TechSpec Maximum Recommended Boost Pressure (PSI): N/A
TechSpec Maximum Recommended Horsepower: N/A
TechSpec Note: N/A
TechSpec Outlet (in): 3
TechSpec Overall Height (in): 25.2
TechSpec Overall Length (in): 38.5
TechSpec Overall Width (in): 7.5
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): N/A

Extended Information:

Emissions : EPA Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 48.5 x 10.5 x 28 inches
Weight: 85.9 PG
