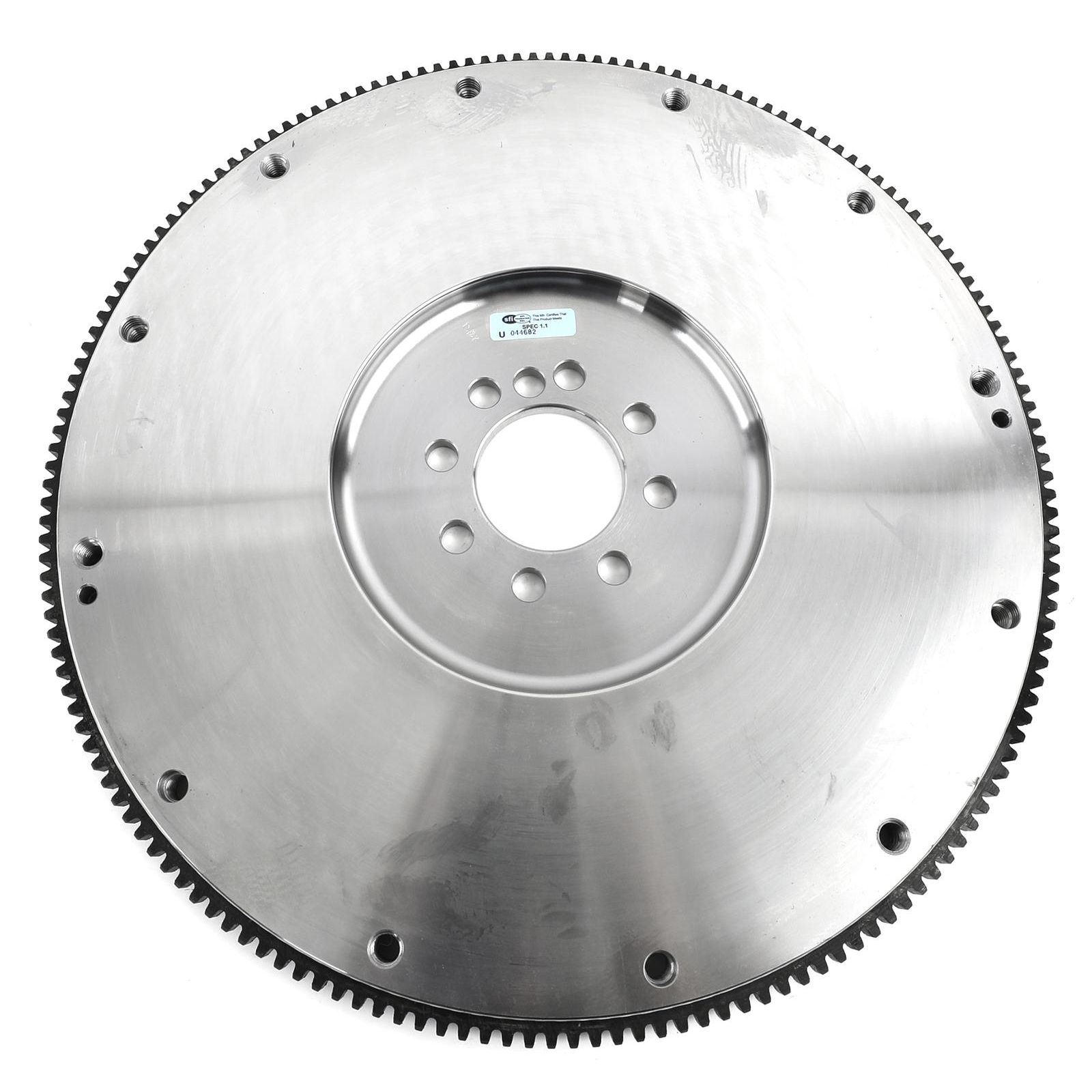

Flywheel:Steel:Chevrolet:2009-UP LSX,LSA,LT1,LT4:9 Bolt Crank:168T:30 lbs.:+.400

McLeod steel flywheels are perfect for street applications where easy stop light acceleration is desired. Steel flywheels come in various weights and dimensions. For race applications, a heavier steel unit is ideal for helping launch a heavy car with a smaller engine with less torque and horsepower. They are CNC machined from billet alloy steel and have 1045 hardened steel ring gears.

Additional Attributes:

GTIN: 00887753317216
Crankshaft to Flywheel Bolt Quantity: 9-bolt
Disc Diameter (in.): 11.000/12.000 in.
Engine Balance: Internal
Engine: 2009-13 LS9 9 Bolt Crank (Retro Fit Application Only)
Flywheel Material: Billet steel
Make: Chevrolet
Marine Use: No
Notes: .400In. of material added to face to put clutch assembly in same position as SBC/BBC.
Pressure Plate Style: Borg & Beck/Diaphragm
Quantity: Sold individually.
Rear Main Seal Style: 1-piece
Replaceable Friction Surface: No
Ring Gear Tooth Quantity: 168-tooth
SFI 1.1 Approved: Yes
Weight: 30.000 lbs.

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 14.5 x 14.5 x 2 inches
Weight: 30 PG

PDF:

McLeodProductInstructions
