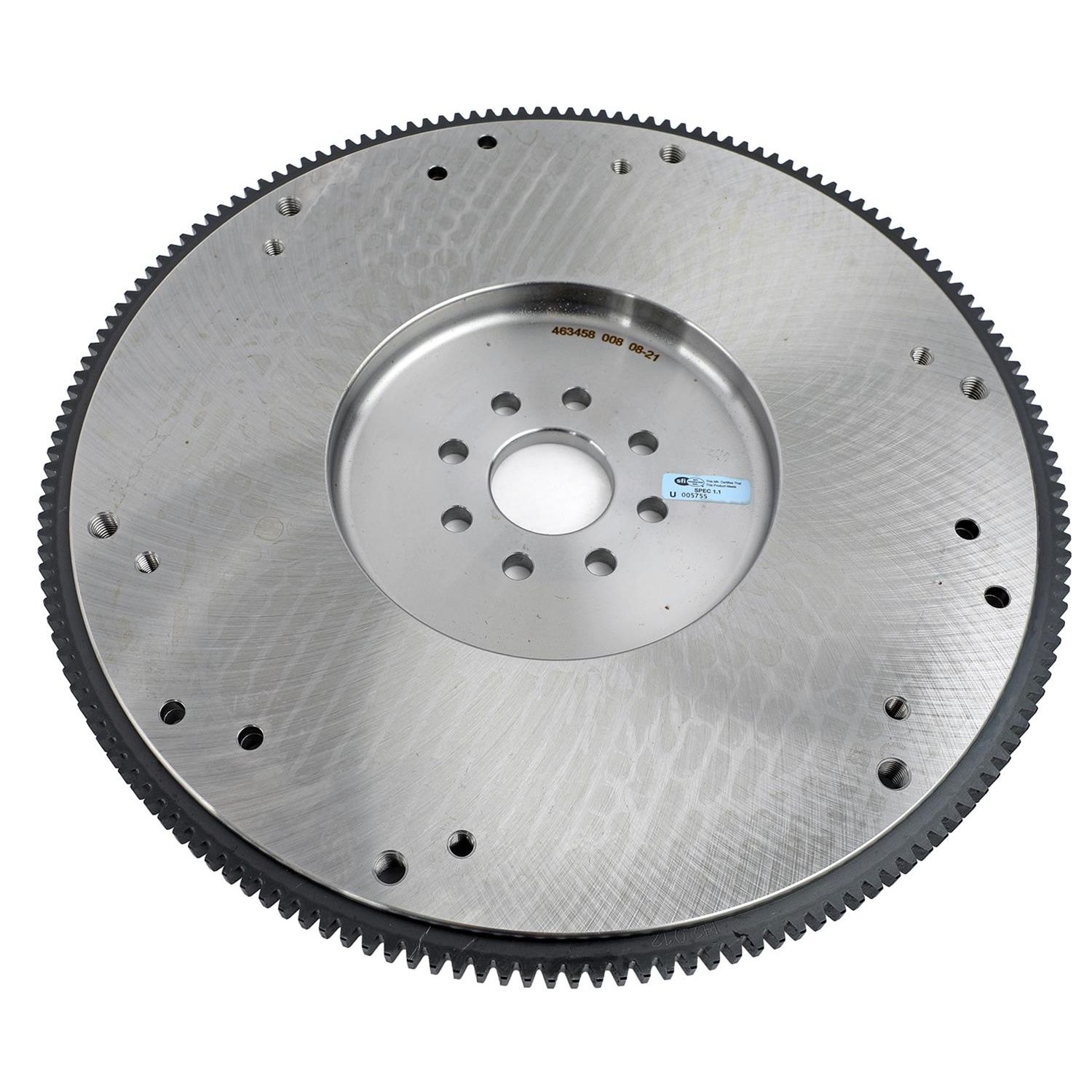

Flywheel: Steel: Ford Modular 2010-14 5.4L GT500: 8 Bolt: 164T: RST/RXT ONLY

McLeod steel flywheels are perfect for street applications where easy stop light acceleration is desired. Steel flywheels come in various weights and dimensions. For race applications, a heavier steel unit is ideal for helping launch a heavy car with a smaller engine with less torque and horsepower. They are CNC machined from billet alloy steel and have 1045 hardened steel ring gears.

Additional Attributes:

GTIN: 00887753012128
Crankshaft to Flywheel Bolt Quantity: 8-bolt
Disc Diameter (in.): 9.688
Engine Balance: Internal
Engine: 2010-2014 Ford Mustang GT500 5.4L/5.8L 8 bolt crank
Flywheel Material: Billet steel
Make: Ford
Marine Use: No
Notes: This flywheel is made specifically for the McLeod RST/RXT and will not fit a conventional style clutch. Please call McLeod Tech for more details at 714-630-2764
Pressure Plate Style: Diaphragm
Quantity: Sold individually.
Replaceable Friction Surface: No
Ring Gear Tooth Quantity: 164-tooth
SFI 1.1 Approved: Yes
Weight: 22.000 lbs.

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 14.5 x 14.5 x 2 inches
Weight: 17.5 PG

PDF:

McLeodProductInstructions
