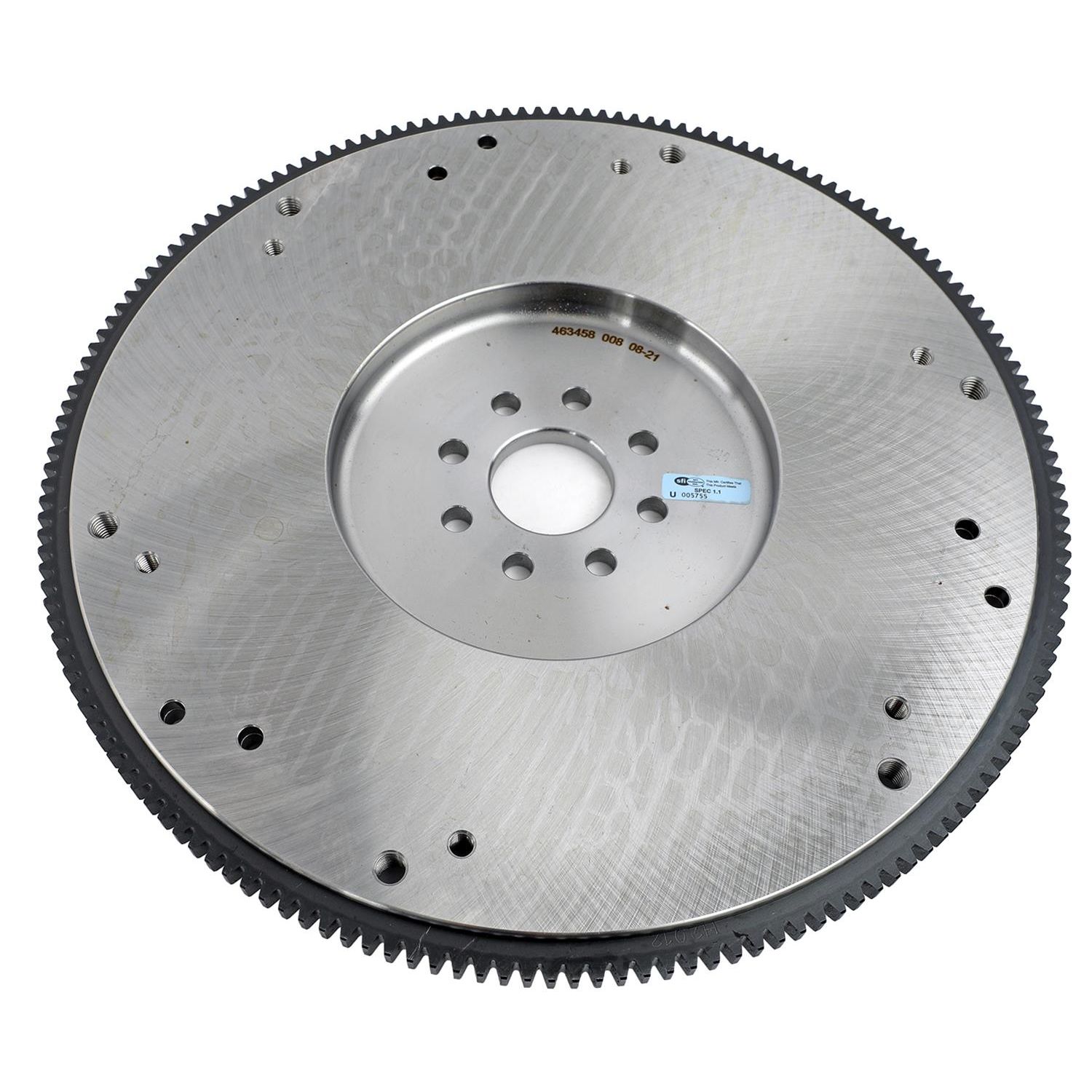

Flywheel: Steel: Ford: 1996-04 4.6L: 2011-17 3.7L,5.0L: 8Bolt Crank:164T: 30 Lbs

McLeod steel flywheels are perfect for street applications where easy stop light acceleration is desired. Steel flywheels come in various weights and dimensions. For race applications, a heavier steel unit is ideal for helping launch a heavy car with a smaller engine with less torque and horsepower. They are CNC machined from billet alloy steel and have 1045 hardened steel ring gears.

Additional Attributes:

GTIN: 00887753011879
Crankshaft to Flywheel Bolt Quantity: 8-bolt
Disc Diameter (in.): 10.500/11.000 in.
Engine Balance: Internal
Engine: 1996-2017 4.6L/5.0L/5.4L, 2011-2017 3.7L 8 bolt crank
Flywheel Material: Billet steel
Make: Ford
Marine Use: No
Notes: This flywheel does NOT contain 2012-Up GT/Boss 302 9 bolt pressure plate pattern.
Pressure Plate Style: Diaphragm
Quantity: Sold individually.
Replaceable Friction Surface: No
Ring Gear Tooth Quantity: 164-tooth
SFI 1.1 Approved: Yes
Weight: 30.000 lbs.

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 14.5 x 14.5 x 2 inches
Weight: 30 PG

PDF:

McLeodProductInstructions
