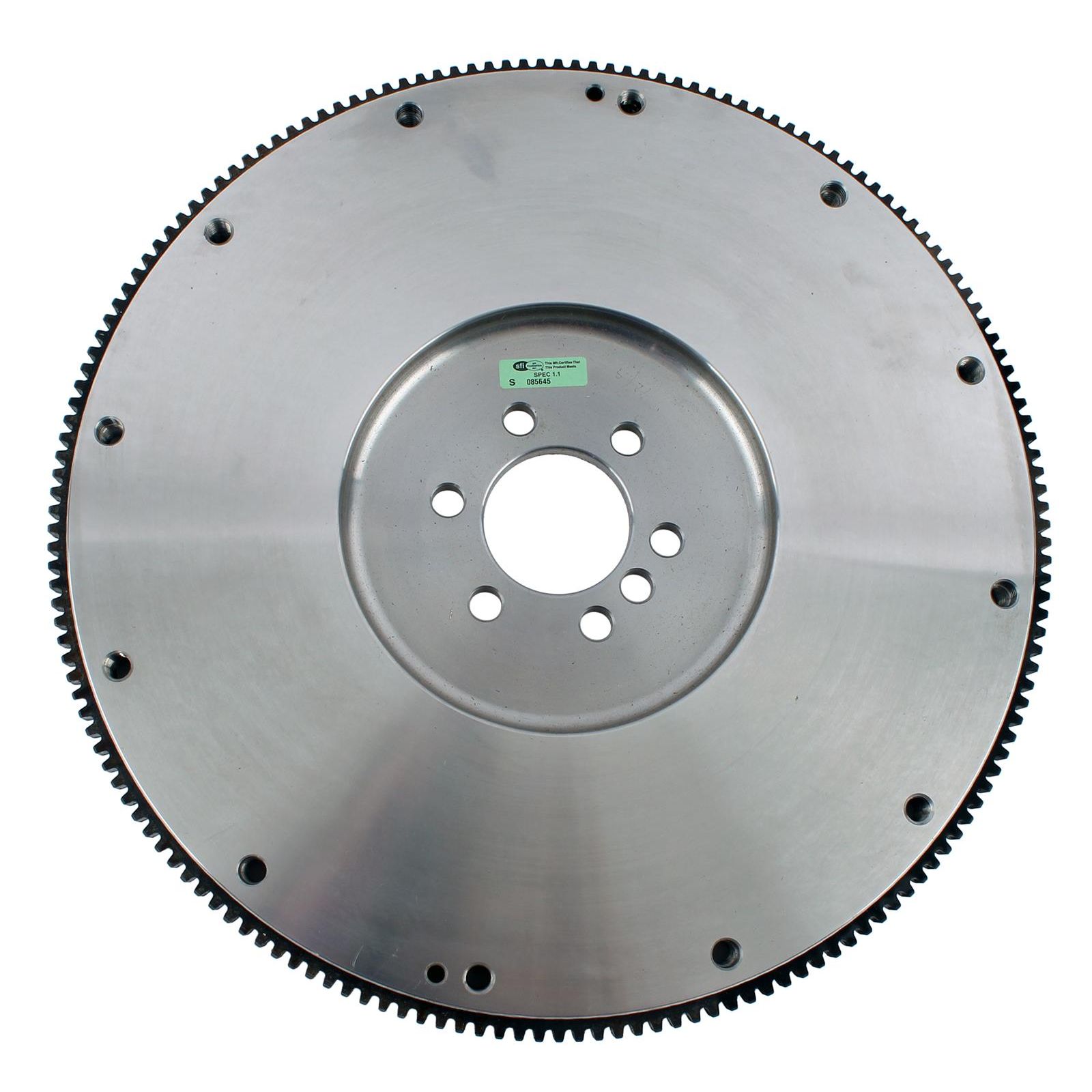

Flywheel: Steel: Chevrolet: 1997-13 LS-X: 168T: 28 LBS: +.200″ to Face

McLeod steel flywheels are perfect for street applications where easy stop light acceleration is desired. Steel flywheels come in various weights and dimensions. For race applications, a heavier steel unit is ideal for helping launch a heavy car with a smaller engine with less torque and horsepower. They are CNC machined from billet alloy steel and have 1045 hardened steel ring gears.

Additional Attributes:

GTIN: 00887753019455
Crankshaft to Flywheel Bolt Quantity: 6-bolt
Disc Diameter (in.): 11.000/12.000 in.
Engine Balance: Internal
Engine: 1997-2013 LS1/LS2/LS3/LS6/LS7
Flywheel Material: Billet steel
Make: Chevrolet
Marine Use: No
Notes: .200In. of material added to face to put clutch assembly in same position as SBC/BBC.
Pressure Plate Style: Borg & Beck/Diaphragm
Quantity: Sold individually.
Rear Main Seal Style: 1-piece
Replaceable Friction Surface: No
Ring Gear Tooth Quantity: 168-tooth
SFI 1.1 Approved: Yes
Weight: 30.000 lbs.

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 14.5 x 14.5 x 2 inches
Weight: 30 PG

PDF:

McLeodProductInstructions
