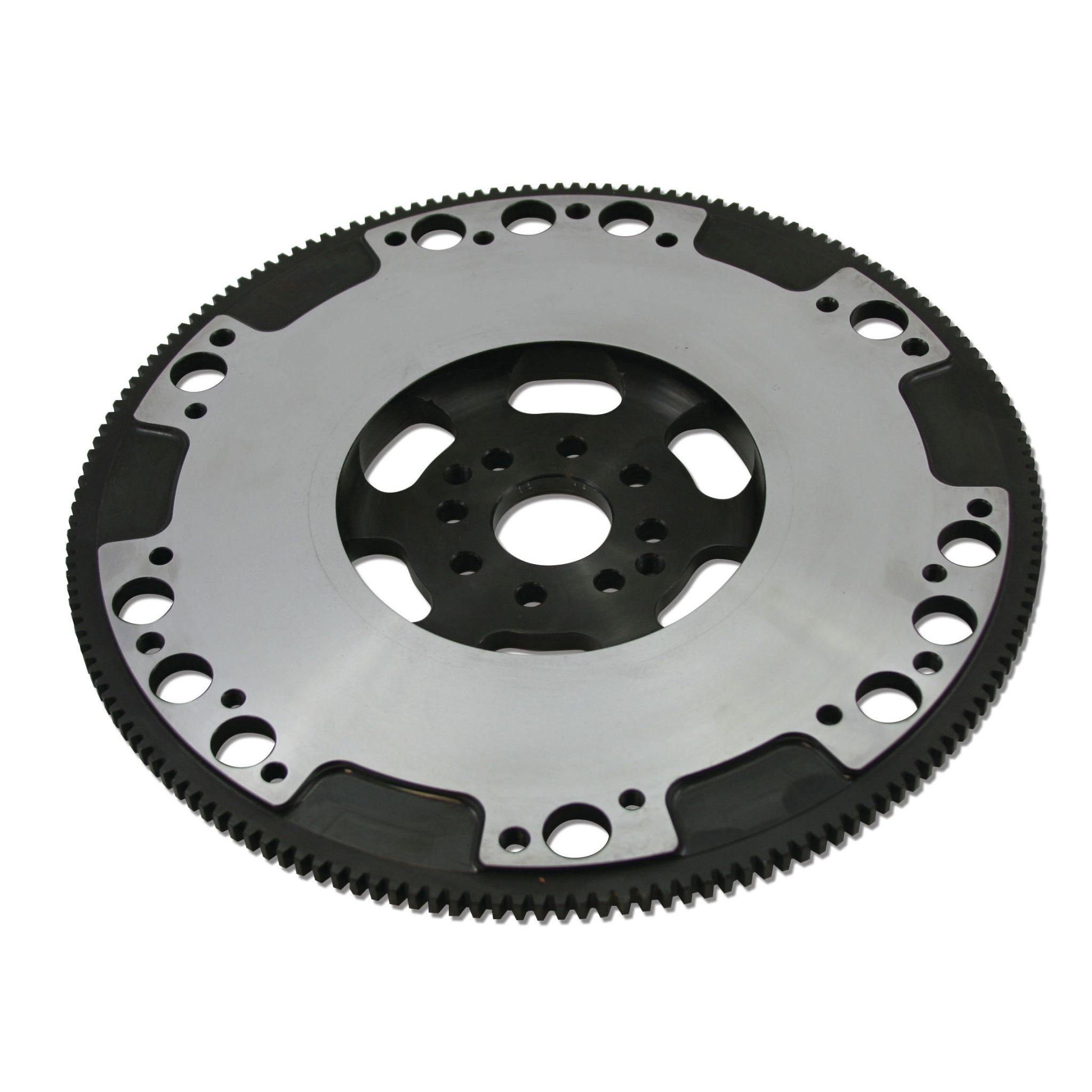

Flywheel: Chromoly: Ford: 1996-04 4.6L: 2011-17 3.7L,5.0L: 8 Bolt: 164T: 20 Lbs

Mcleod Chrome Moly Flywheels Offer Mustang Owners A Lightweight Yet Incredibly Strong Flywheel Option. With A Heat-Treated Friction Area And Integrated Ring Gear, Chrome Moly Flywheels Are An Excellent Choice For Any Performance Mustang Application.

Additional Attributes:

GTIN: 00887753314659
Clutch Pattern 1: 1986-Up 10.5In. Mustang Diaphragm with Dowel Pins.
Clutch Pattern 2: 11In. Mustang With Dowel Pin Pattern
Disc Diameter (in.): 10.5In./11In.
Engine Balance: Internal
Engine: 1996-2017 4.6L/5.0L/5.4L 8 Bolt Crank
Flywheel Material: Chromoly
Make: Ford
Marine Use: No
Notes: This flywheel will not work with RST/RXT Twin disc applications. Please call McLeod Tech for more info at 714-630-2764
Quantity: Sold individually.
Replaceable Friction Surface: No
Ring Gear Tooth Quantity: 164-tooth
SFI 1.1 Approved: No
Weight: 16.000 lbs.

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 16 x 17 x 5.5 inches
Weight: 25 PG

PDF:

McLeodProductInstructions
