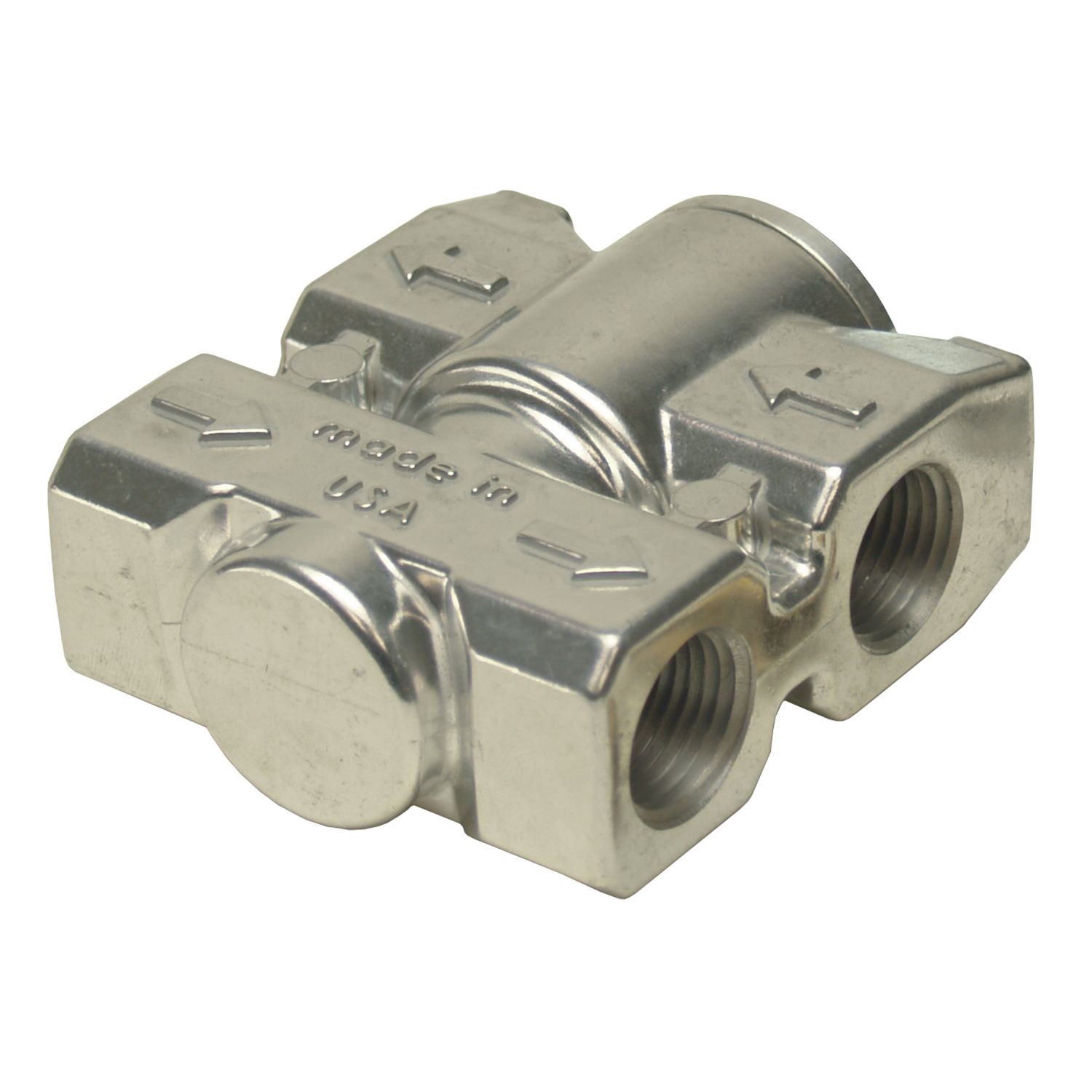

Fluid Control Thermostat, 3/8″ NPT

This Billet Style Cast Aluminum Fluid Control Thermostat with 3/8” NPT ports allows the oil to bypass the cooler until it reaches 180°F at which point the internal thermostatic valve will close and force 100% of the oil through the cooler while maintaining a constant pressure system. This process allows the engine/transmission to achieve the ideal operating temperature quicker before passing the oil through the cooler. The unit can be rotated 180° to change flow direction.

Additional Attributes:

GTIN: 00083277250118
Activating temperature: 180°
Color: Silver
Inlet size: 3/8 NPT
Material: Aluminum
Prop 65: Yes

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 4.375 x 7 x 2.25 inches
Weight: 1 PG

PDF:

25011
