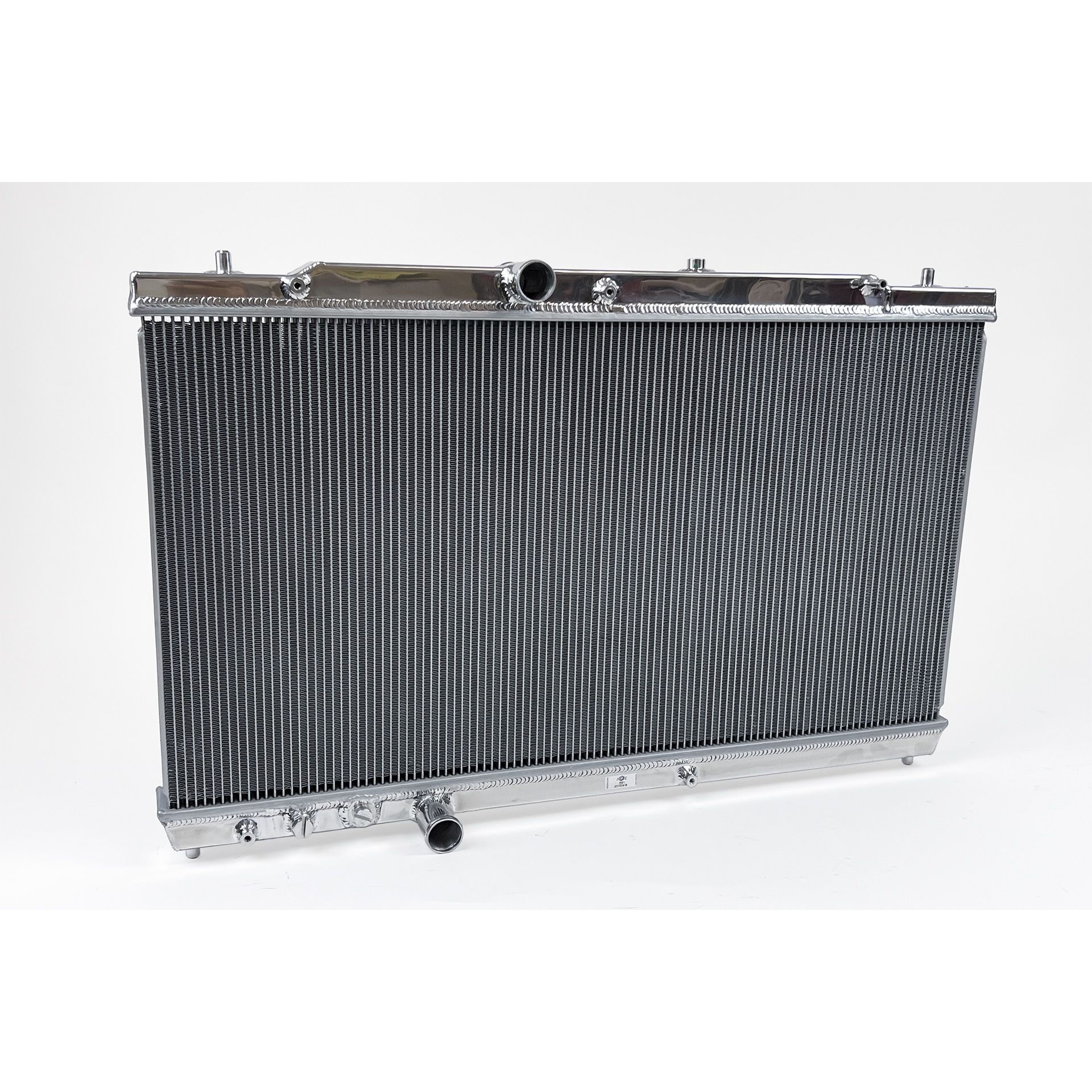

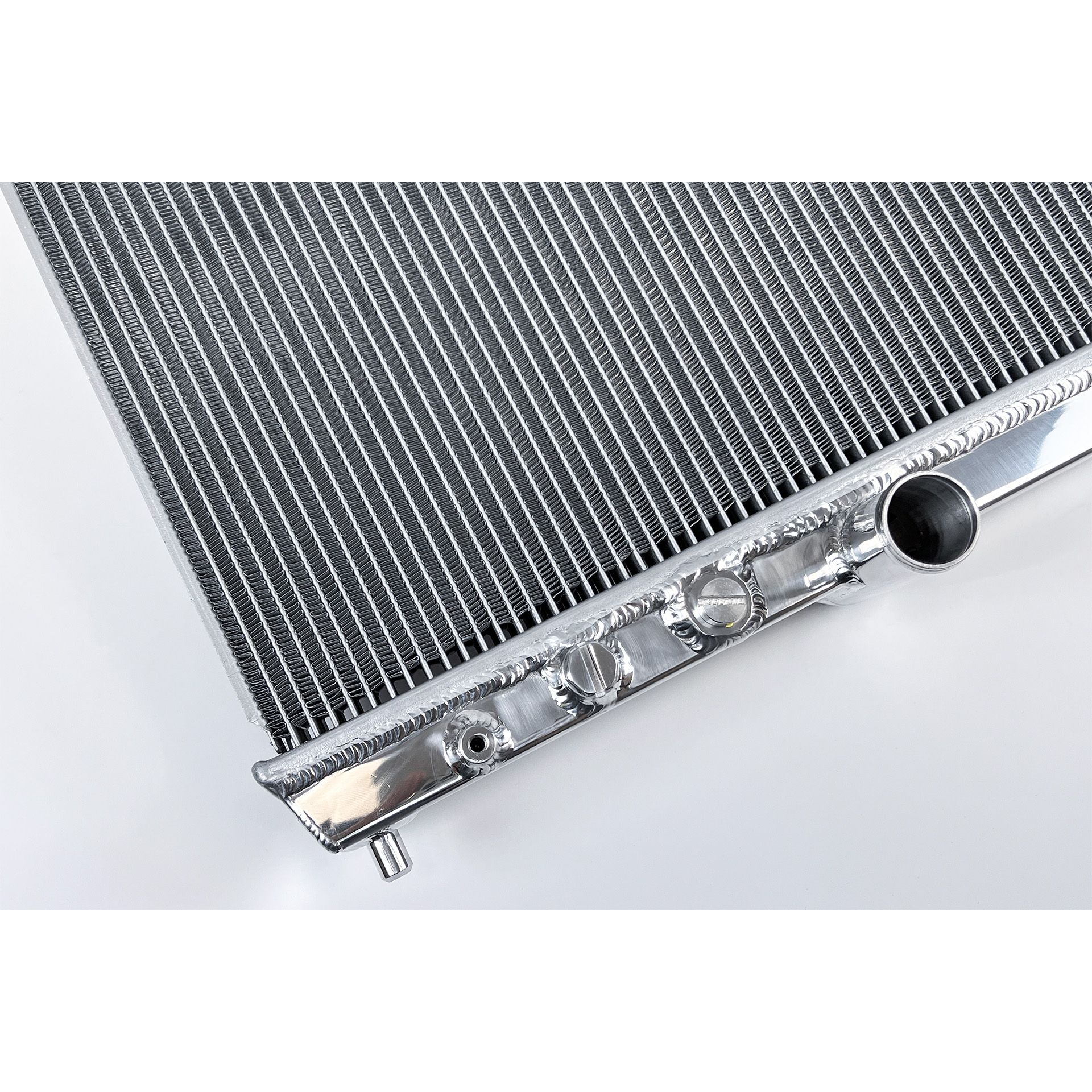

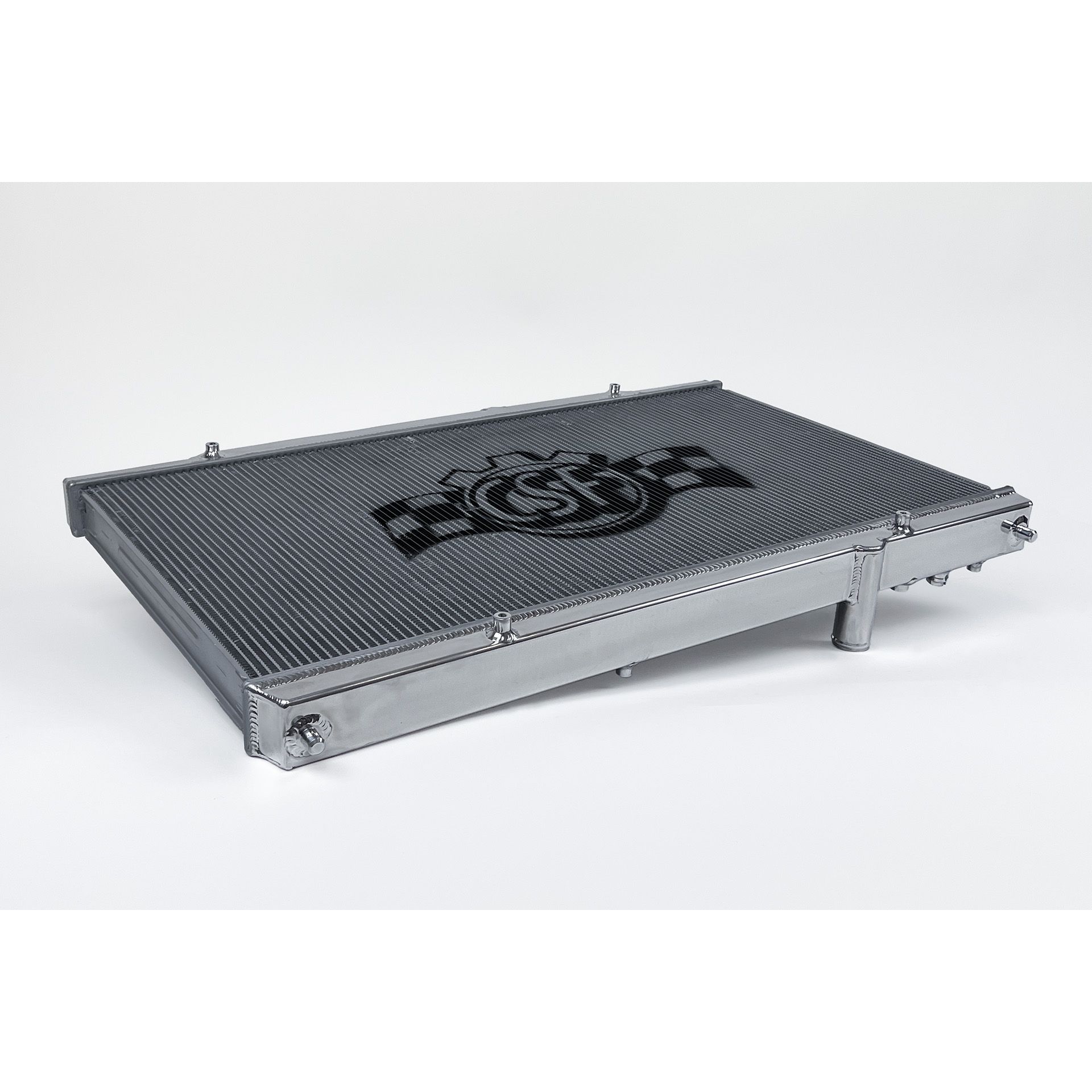

FL5 Civic Type R / DE5 Integra Type S High-Performance All-Aluminum Radiator

Testing was performed on a FL5 Civic Type R tuned to 294 whp and equipped with an upgraded/larger Front Mount Intercooler. The larger front mount intercooler has been shown to raise engine coolant temperatures by 7%. This is due to the airflow restriction over the radiator. Test results show a decrease of of 8 deg C engine coolant temperature with the CSF Radiator vs OEM. As you can see, a radiator upgrade will be very important to anyone running a larger intercooler. The upgraded radiator will also be beneficial to anyone tracking their car.

Additional Attributes:

GTIN: 00710353072219
Coolant Hose Inlet Connection Type: OE Type Connection
Coolant Hose Outlet Connection Type: OE Type Connection
Core Height: 15.75 in.
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 42mm
Core Width: 29.6875 in.
Down Flow Or Cross Flow Type: Down Flow
Finish/Color: Polished
Frame Included: No
Grade Type: Performance
Inlet Connector Type: Slip On
Inlet Diameter: 1.625 in.
Inlet Location: Top Left
Installation Type: Drop-In Fit Installation
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: No
Mounting Hardware Included: No
Mounting Type: Mounts with OE Hardware
Outlet Connector Type: Slip On
Outlet Diameter: 1.625 in.
Outlet Location: Bottom Left
Prop 65 Yes/No: No
Radiator Cap Included: No
Tank Material: Aluminum
Thermostat Included: No

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 34 x 23 x 7 inches
Weight: 19 PG
