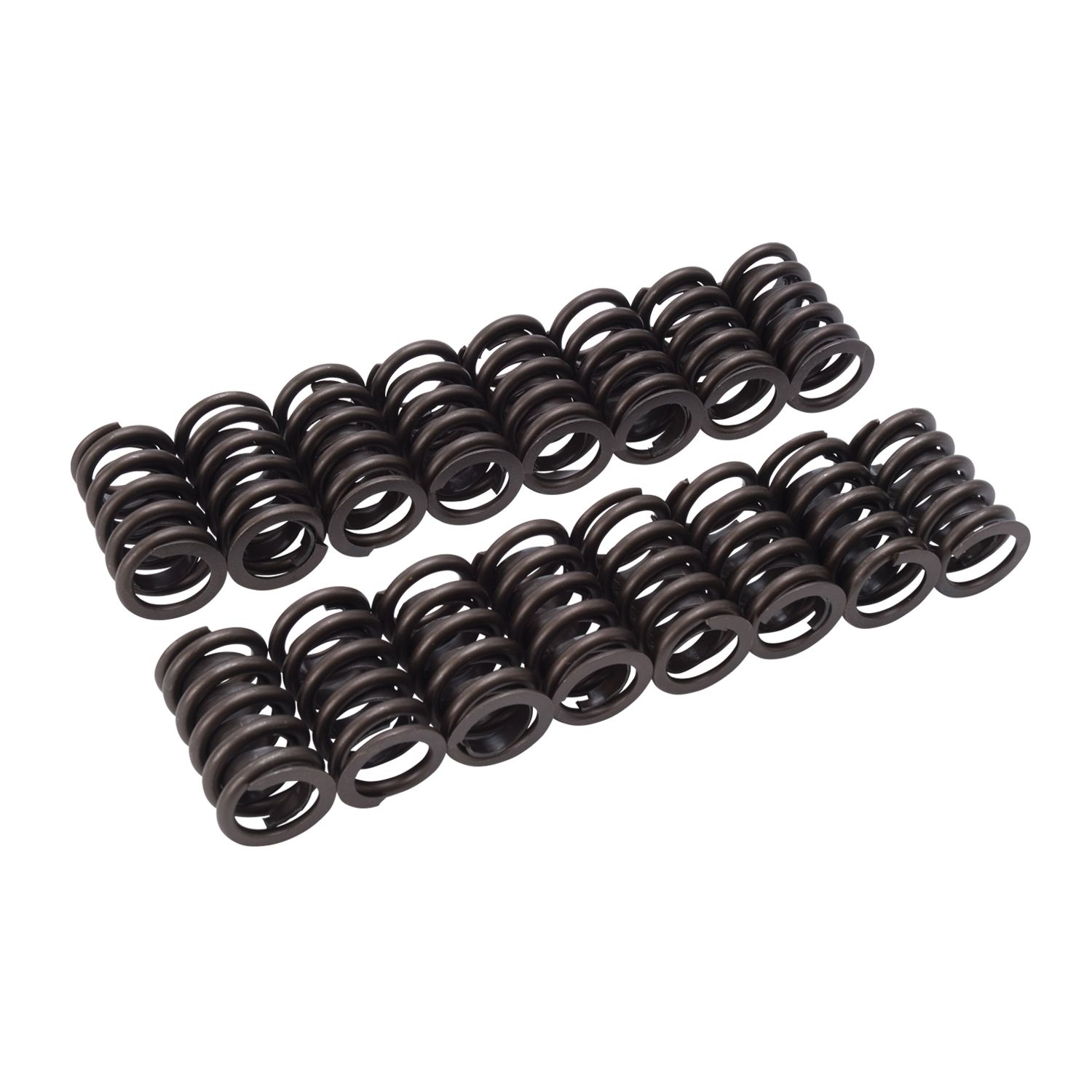

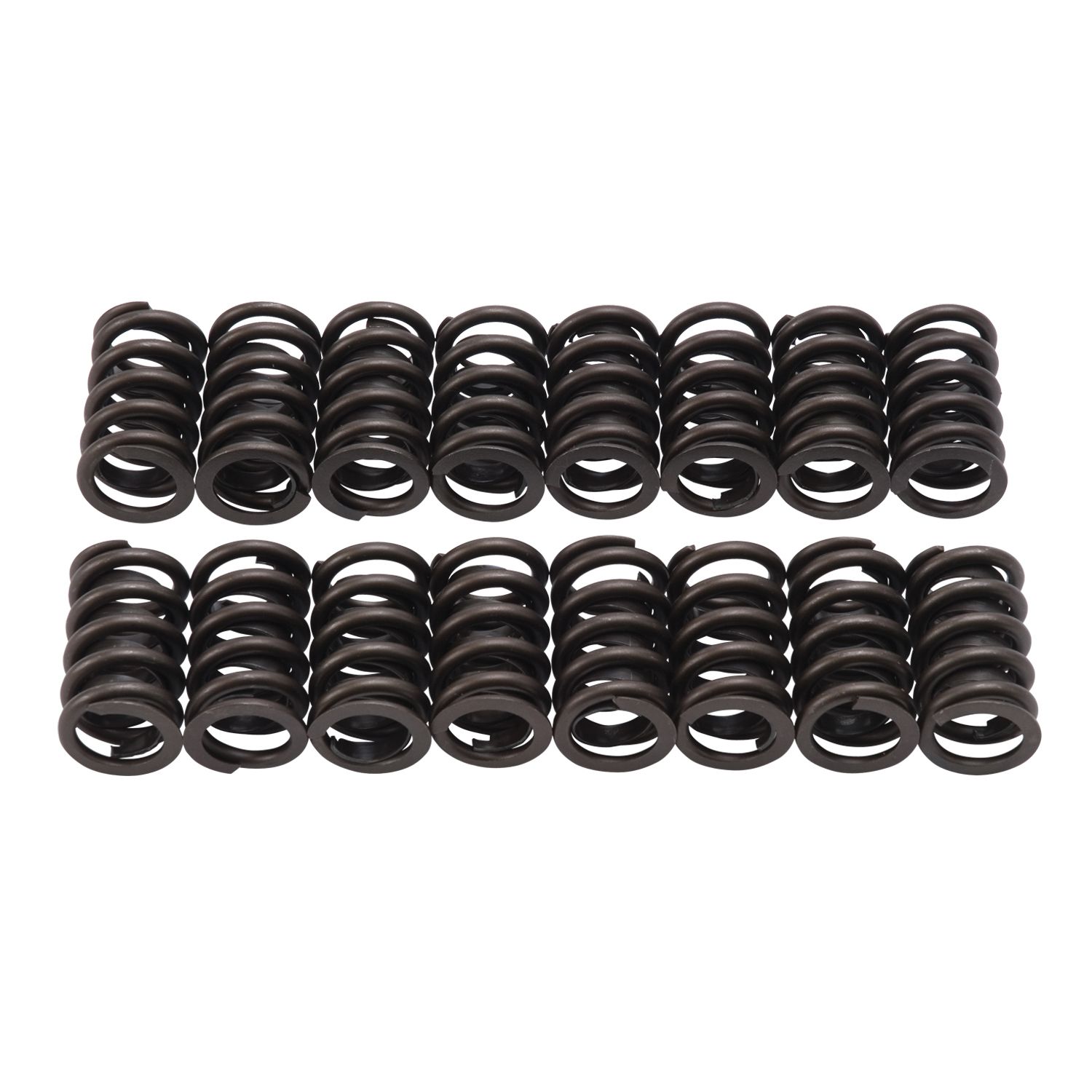

Engine Valve Spring Kit

Edelbrock part #5824 Sure Seat Valve Spring Kit are replacement valve springs for early E-Street Cylinder heads with 1.250" dia. Valve springs. Made of highest quality spring wire and precision wound to close tolerances. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application. Set of 16. Valve Spring Specifications: Type: Non-Rotator Seat Pressure: 90 lbs. Installed Height: 1.750" Outside diameter: 1.250" Open Pressure: 325 lbs. @ 0.550" Coil Bind: 1.150"

Additional Attributes:

GTIN: 00085347058242
Camshaft Type: Flat Tappet
Coil Bind Height: 1.15
Inside Diameter: 0.88
Installed Height: 1.750
Installed Pressure: 125
Open Pressure: 325
Outside Diameter: 1.250
RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Spring Open Height: 1.200
Spring Type: Standard

Extended Information:

Emissions : EPA Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 12.5 x 2.5 x 3.5 inches
Weight: 3.2 PG
