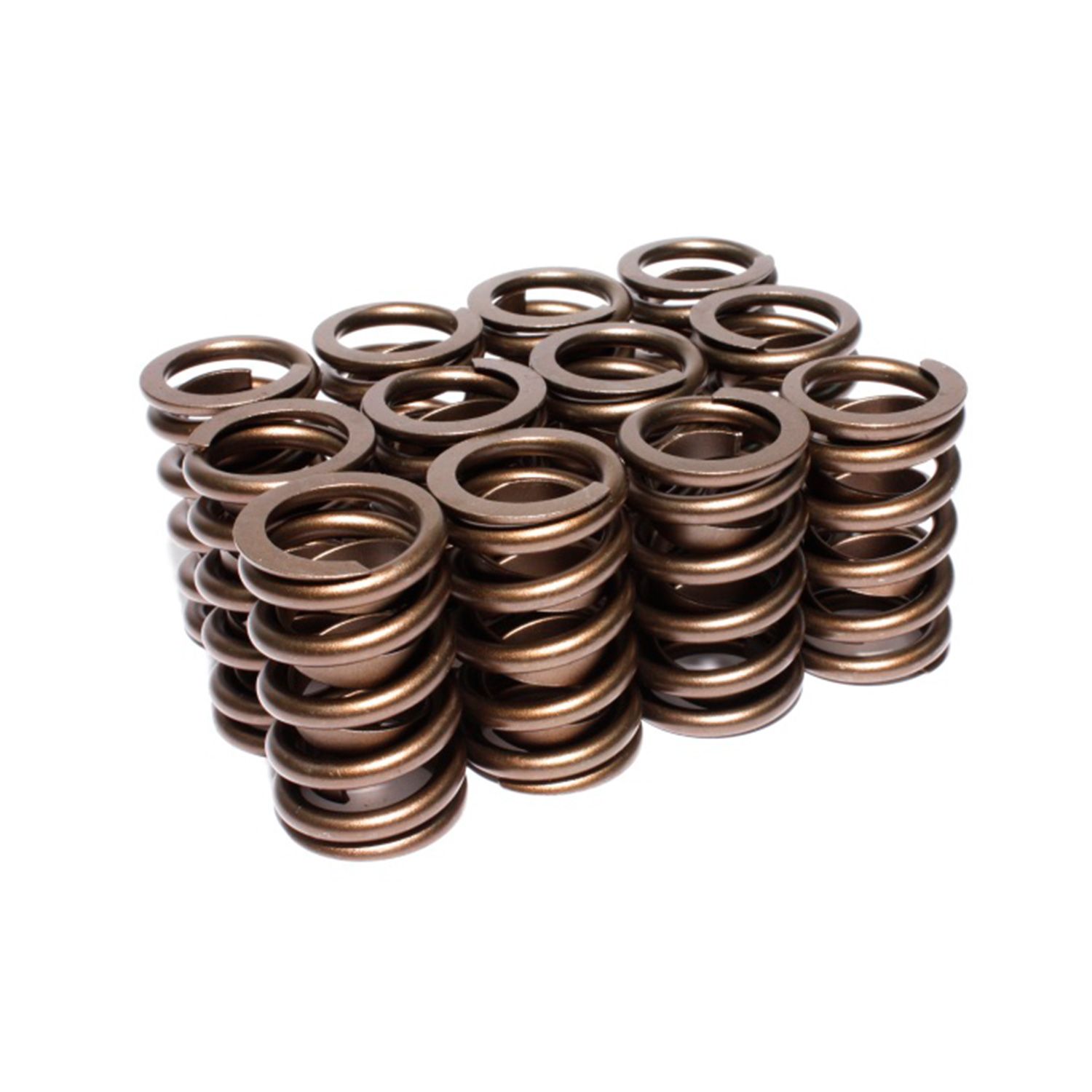

Engine Valve Spring Kit

The Edelbrock #5814 Sure Seat Valve Spring for Chevy 4.3L 90 Deg V6 1987-95 O.E Cast iron cylinder heads are made of highest quality spring wire and precision wound to close tolerances, our Sure Seat Valve Spring sets are for use on original equipment heads when installing Edelbrock Performer-Plus camshafts. These are the same high-performance springs used on Edelbrock Performer and RPM cylinder heads. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application.

Additional Attributes:

GTIN: 00085347058143
Camshaft Type: Hydraulic Flat Tappet
Coil Bind Height: 1.160
Damper Spring Included: Yes
Inside Diameter: 0.750
Installed Height: 1.700
Installed Pressure: 110
Material: Chromium Silicon
Open Pressure: 285
Outside Diameter: 1.250
Quantity: Set of 12
RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Spring Open Height: 0.490
Spring Type: Cylindrical
Springs Per Valve: Single

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 12.25 x 3.38 x 2.25 inches
Weight: 3.25 PG
