Engine Valve Spring Kit

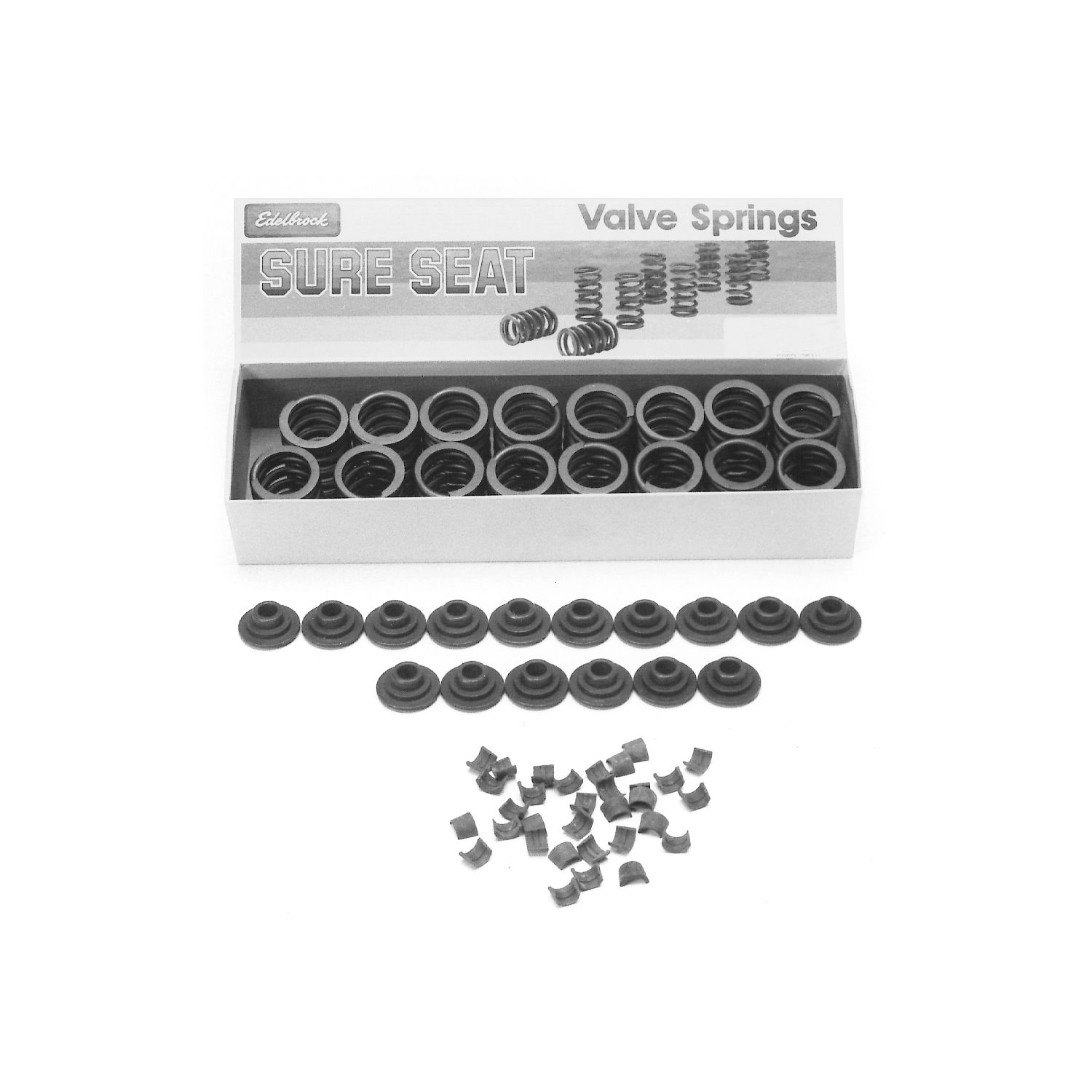

Edelbrock part #5794 Sure Seat Valve Spring Kit is designed for Small-Block Chevy O.E Cast Iron Heads. Made of highest quality spring wire and precision wound to close tolerances. This Sure Seat Valve Spring set is for use on original equipment heads when installing Edelbrock Performer-Plus camshafts. The valve springs are designed for use with OEM valve rotators. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application. Set of 16. Valve Spring Specifications: Type: Non-Rotator Seat Pressure: 110 lbs. Installed Height: 1.700" Open Pressure: 285 lbs. @ 0.490" Outside Diameter: 1.265" Inside Diameter: 1.060" Coil Bind: 1.160"

Additional Attributes:

GTIN: 00085347057948
Camshaft Type: Hydraulic Flat Tappet
Coil Bind Height: 1.160
Damper Spring Included: Yes
Inside Diameter: 0.880
Installed Height: 1.700
Installed Pressure: 110
Locks Included: Yes
Material: Chromium Silicon
Open Pressure: 285
Outside Diameter: 1.265
Quantity: Kit
Retainers Included: Yes
RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Spring Open Height: 0.490
Spring Type: Cylindrical
Springs Per Valve: Single

Extended Information:

Emissions : EPA Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 12.25 x 3.38 x 2.25 inches
Weight: 4.2 PG
