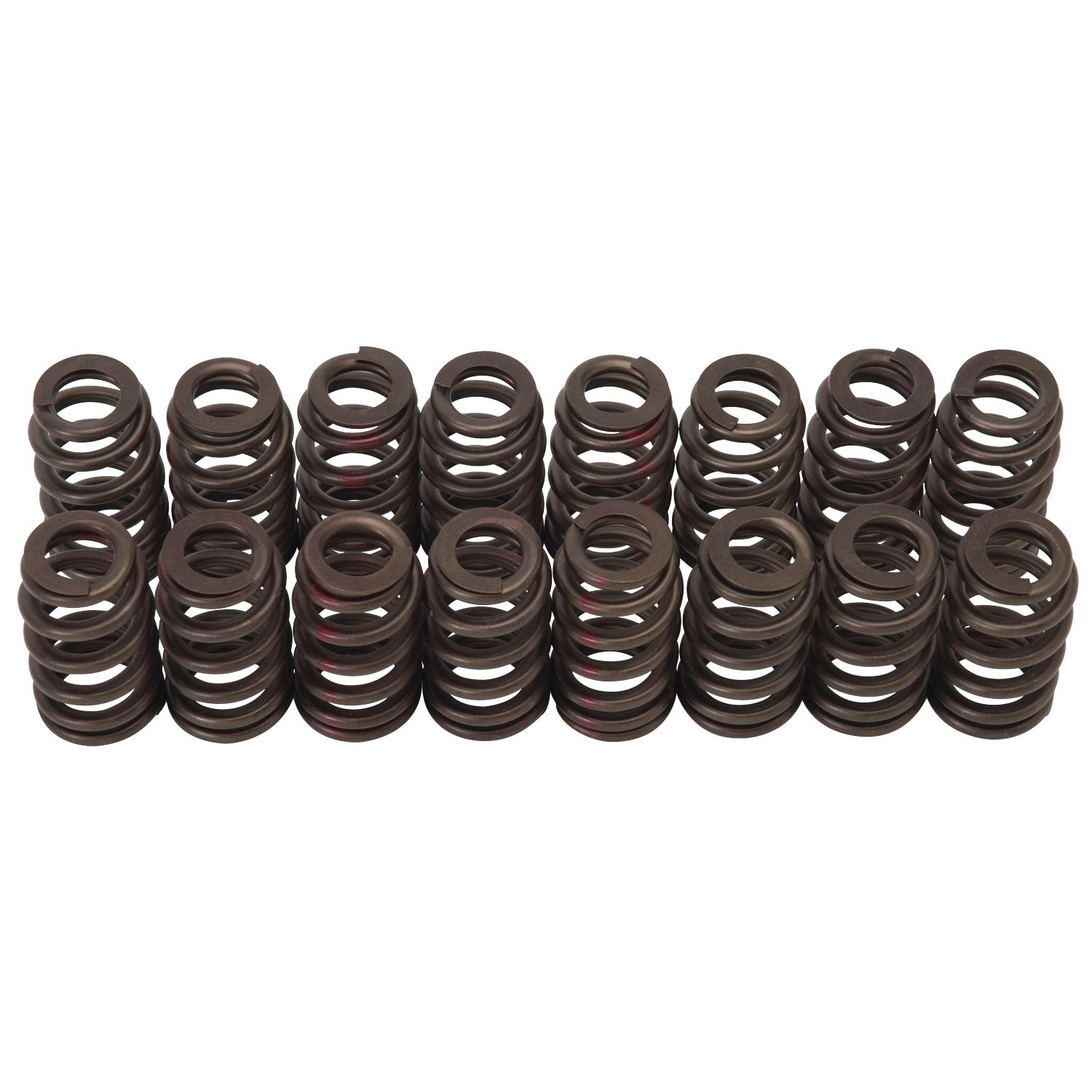

Engine Valve Spring Kit

The Edelbrock #5768 Sure Seat Valve Spring for Chevy LS V8 O.E Cast iron cylinder heads are made of highest quality spring wire and precision wound to close tolerances, our Sure Seat Valve Spring sets are for use on original equipment heads when installing Edelbrock Performer-Plus, Performer RPM and Torker-Plus camshafts. These are the same high-performance springs used on Edelbrock Performer and RPM cylinder heads. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application.

Additional Attributes:

GTIN: 00085347057689
Camshaft Type: Hydraulic Roller
Coil Bind Height: 1.140
Damper Spring Included: No
Inside Diameter: (Top) 0.650 in, (Bottom) 0.885
Installed Height: 1.800
Installed Pressure: 138
Material: Chromium Silicon
Open Pressure: 326
Outside Diameter: (Top) 1.066 in, (Bottom) 1.300
Quantity: Set of 16
RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Spring Open Height: 0.600
Spring Type: Beehive
Springs Per Valve: Single

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 12.25 x 3.38 x 2.25 inches
Weight: 4 PG
