Engine Intake Manifold Installation Kit

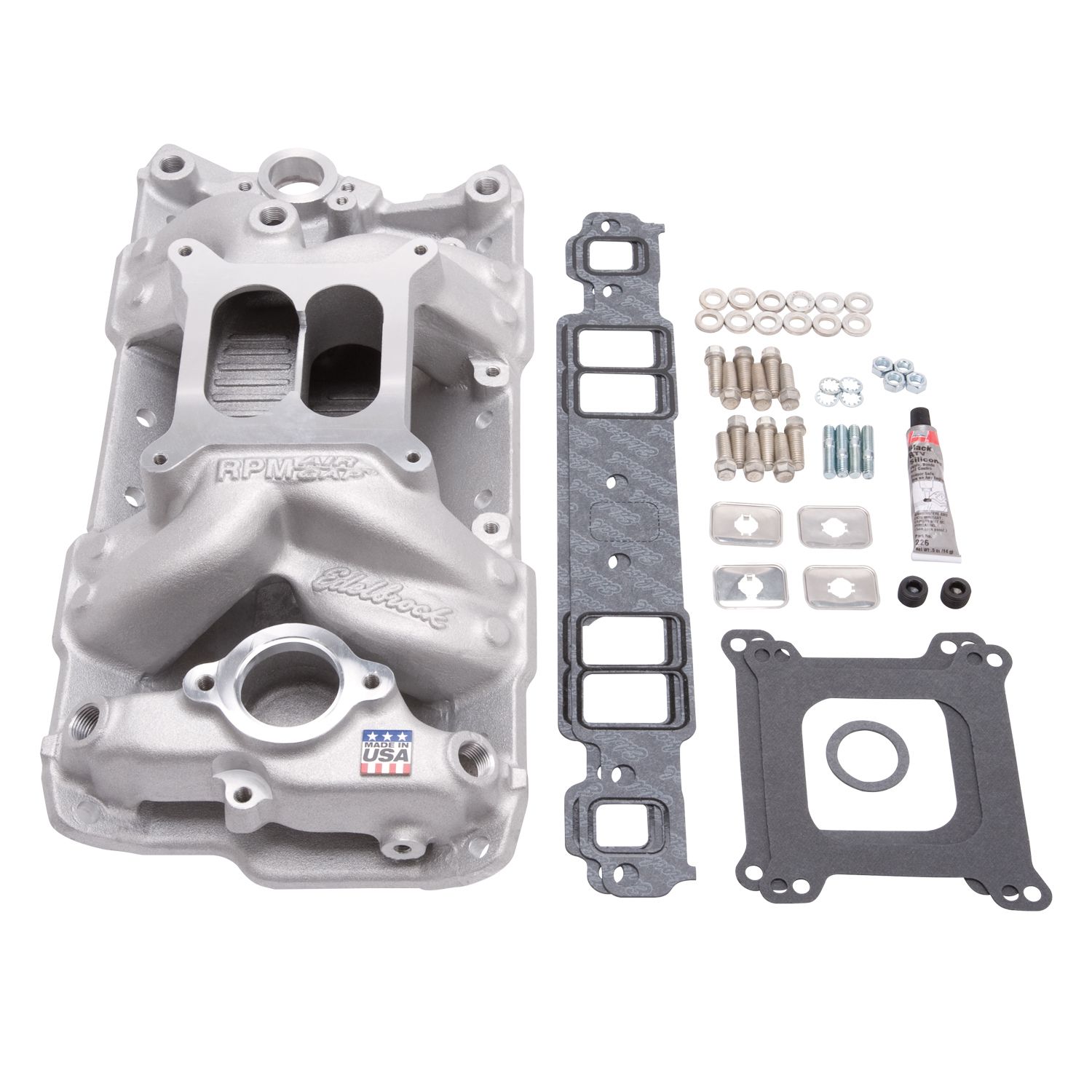

Edelbrock part #2042 Manifold Installation kit will simplify the process of adding more power and efficiency to your street rod or muscle car. It combines all the necessary components to replace your stock iron intake manifold with an Edelbrock aluminum intake manifold. Kit includes: Performer RPM Air Gap intake manifold #7501, intake gasket set, carburetor base gasket, RTV sealant, intake bolts and carb studs.

Additional Attributes:

GTIN: 00085347020423
Angle: (Carb) 3
Basic Operating RPM Range: 1500-6500
Bolts Or Studs Included: Yes
Carburetor Quantity: One
Center Maximum Height: (Carb Pad) 4.72
CNC Ported: No
Deck Height: Standard
EGR Port: No
Family: RPM Air-Gap
Fastener Material: Steel
Finish: Satin
Flange Type: 4150
Front Maximum Height: (A) 4.20
Gasket Or Seal Included: Yes
Hardware Included: Yes
Intake Manifold Type: Part #7501
Material: Aluminum
Mounting Hole Diameter: (Carb Bolt) 5/16-18 UNC
Mounting Hole Quantity: (Carb Bolt) 4
Port Exit Dimensions: 1.14 x 1.95
Quantity: Kit
Rear Maximum Height: (B) (Measured To Engine Block) 5.25
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Series: RPM Air-Gap
Single Or Dual Plane Type: Dual
Vehicle Model: Chevrolet

Extended Information:

Emissions : EPA Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 23.625 x 14.75 x 7.5 inches
Weight: 20 PG
