Engine Intake Manifold

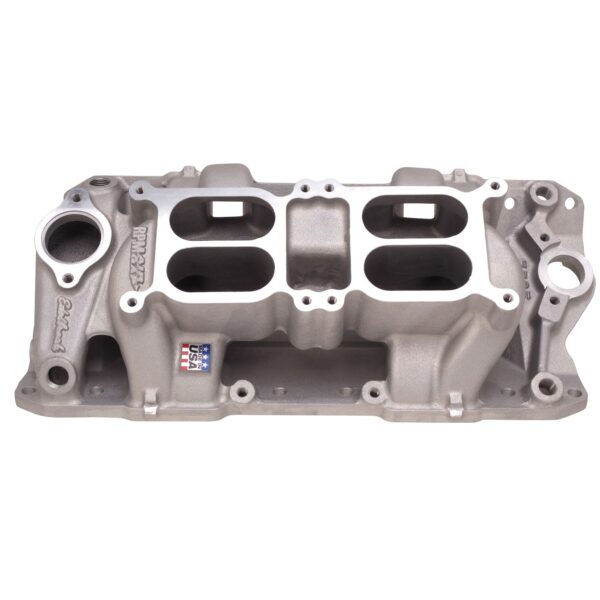

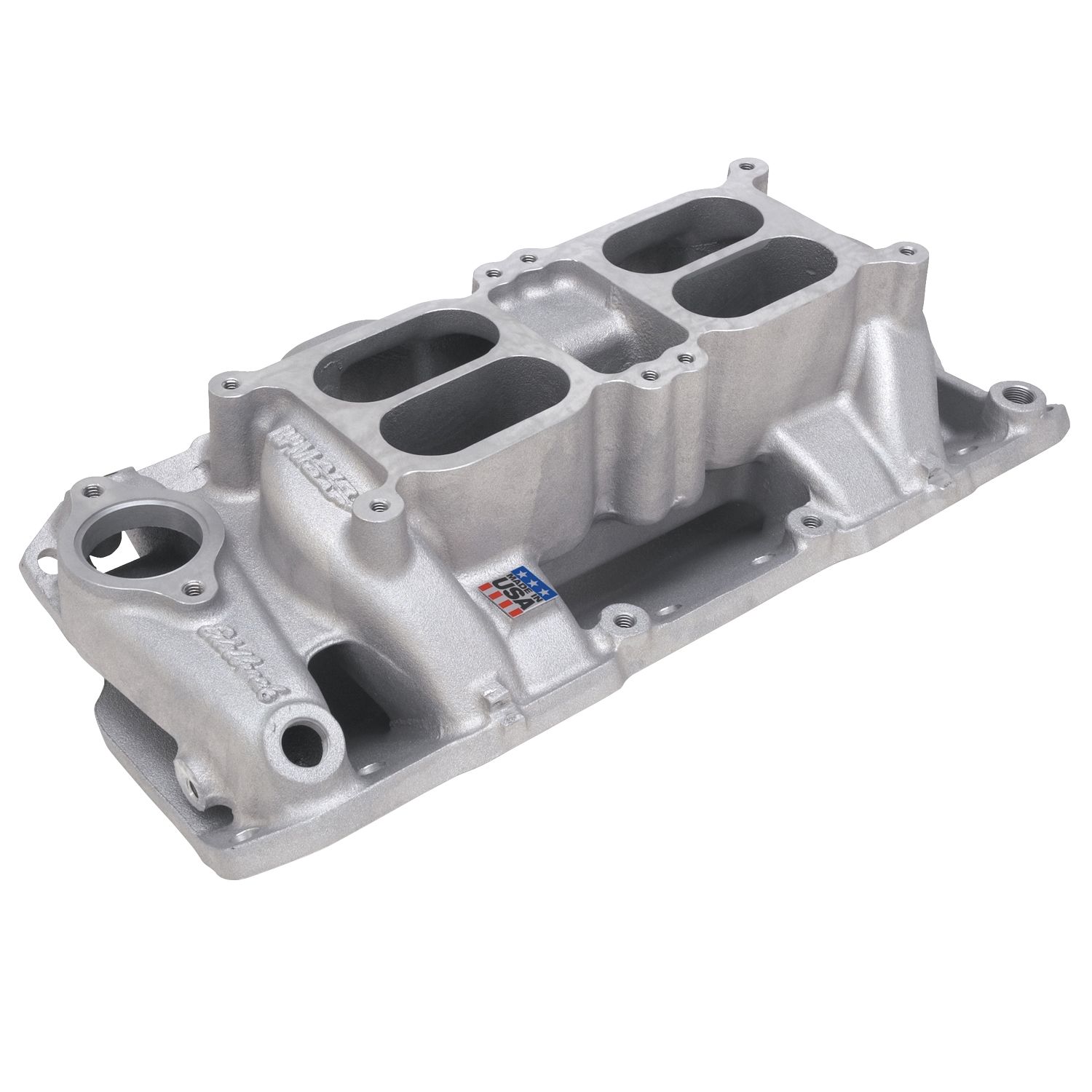

Edelbrock part #7525 RPM Air-Gap dual-quad intake manifold is designed for 1955-86 S/B Chevys, this intake stands 1-5/8" taller than the low-profile C-26 intake and offers performance improvements in the 1500-6500 rpm range. The large runners feature our unique Air-Gap design that separates the runners from the hot engine valley for a cooler, denser charge. Will not fit under stock Corvette hood.

Additional Attributes:

GTIN: 00085347075256
Basic Operating RPM Range: 1500-5500
Center Maximum Height: 4.890
CNC Ported: No
EGR Port: No
Finish: Satin
Flange Type: 4150 Dual-Quad (4-Barrel Square Bore)
Front Maximum Height: 4.570
Gasket Or Seal Included: No
Grade Type: Performance
Material: Aluminum
Rear Maximum Height: 5.200
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Series: RPM Air-Gap
Single Or Dual Plane Type: Dual
Vehicle Model: Chevrolet

Extended Information:

Emissions : EPA Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 23.625 x 14.75 x 7.5 inches
Weight: 19.6 PG
