Engine Intake Manifold

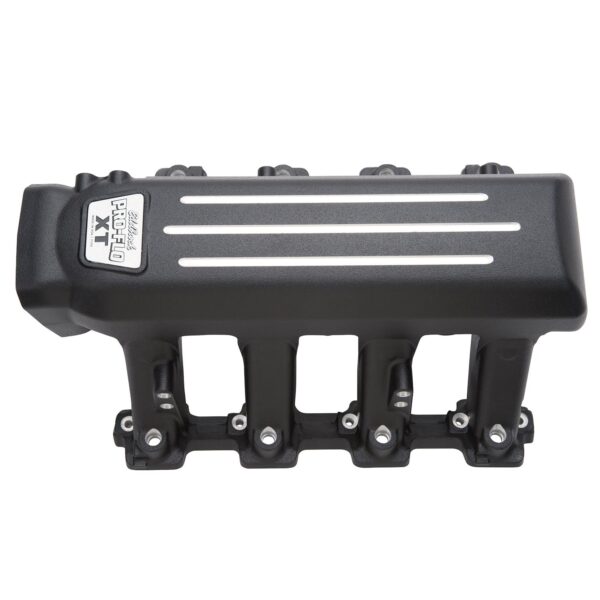

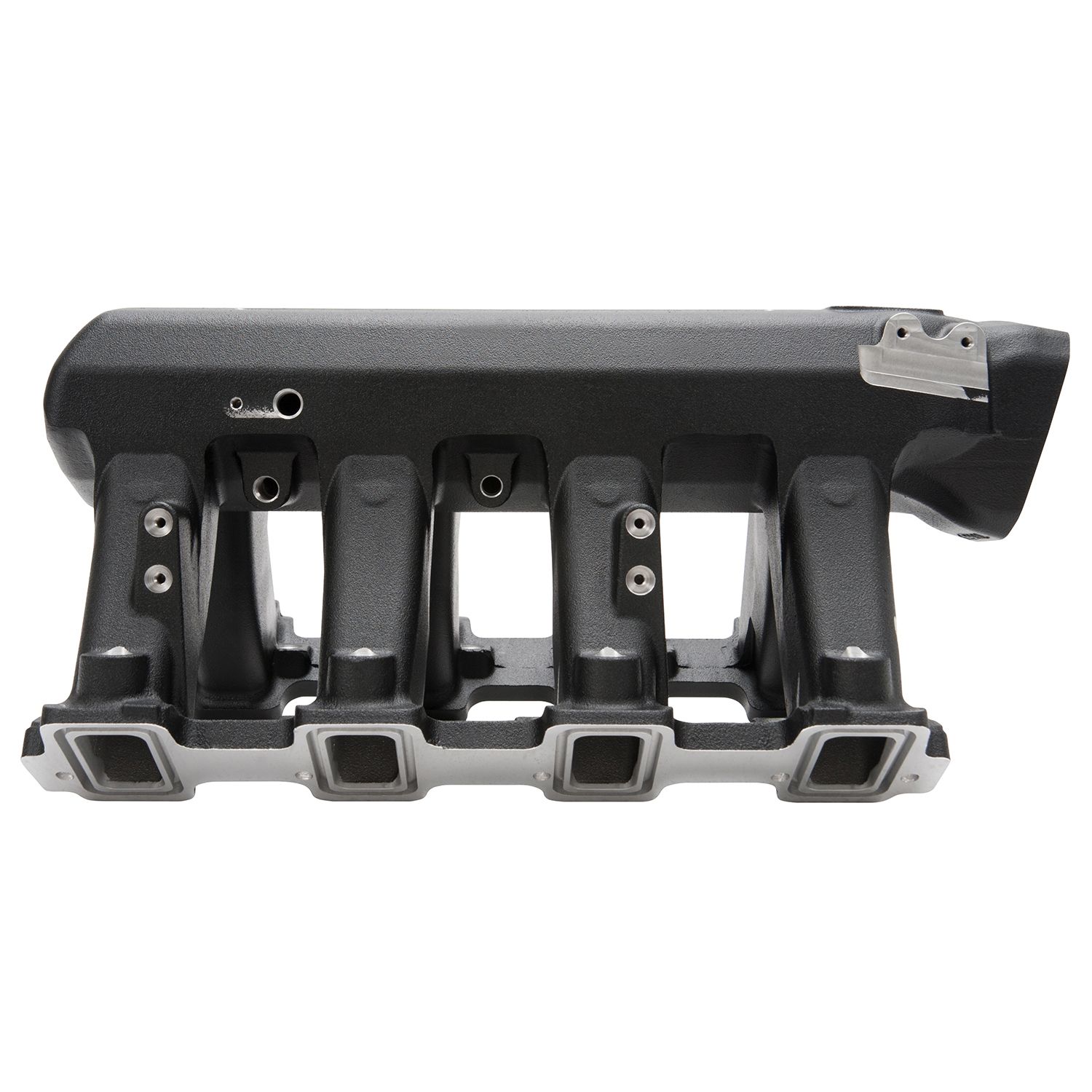

Edelbrock part #7142 Pro Flo XT LS3 intake manifold is designed for use on GM LS3 engines. This manifold will accept late model LS Drive-By-Wire throttle bodies or Edelbrock 90mm mechanical throttle body and is offered in a black powder coat finish. This manifold is not intended to be a direct replacement for late model vehicle applications due to hood/cowl clearance and emissions incompatibility.

Additional Attributes:

GTIN: 00085347071425
Basic Operating RPM Range: 1500-7000
Center Maximum Height: 9.680
CNC Ported: No
EGR Port: No
Finish: Black Powder Coated
Flange Type: Throttle Body XT
Front Maximum Height: 9.280
Gasket Or Seal Included: No
Grade Type: Performance
Material: Aluminum
Rear Maximum Height: 9.680
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Series: Pro-Flo XT
Single Or Dual Plane Type: Single
Vehicle Model: Chevrolet

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 24 x 15 x 13 inches
Weight: 42 PG
