Engine Intake Manifold

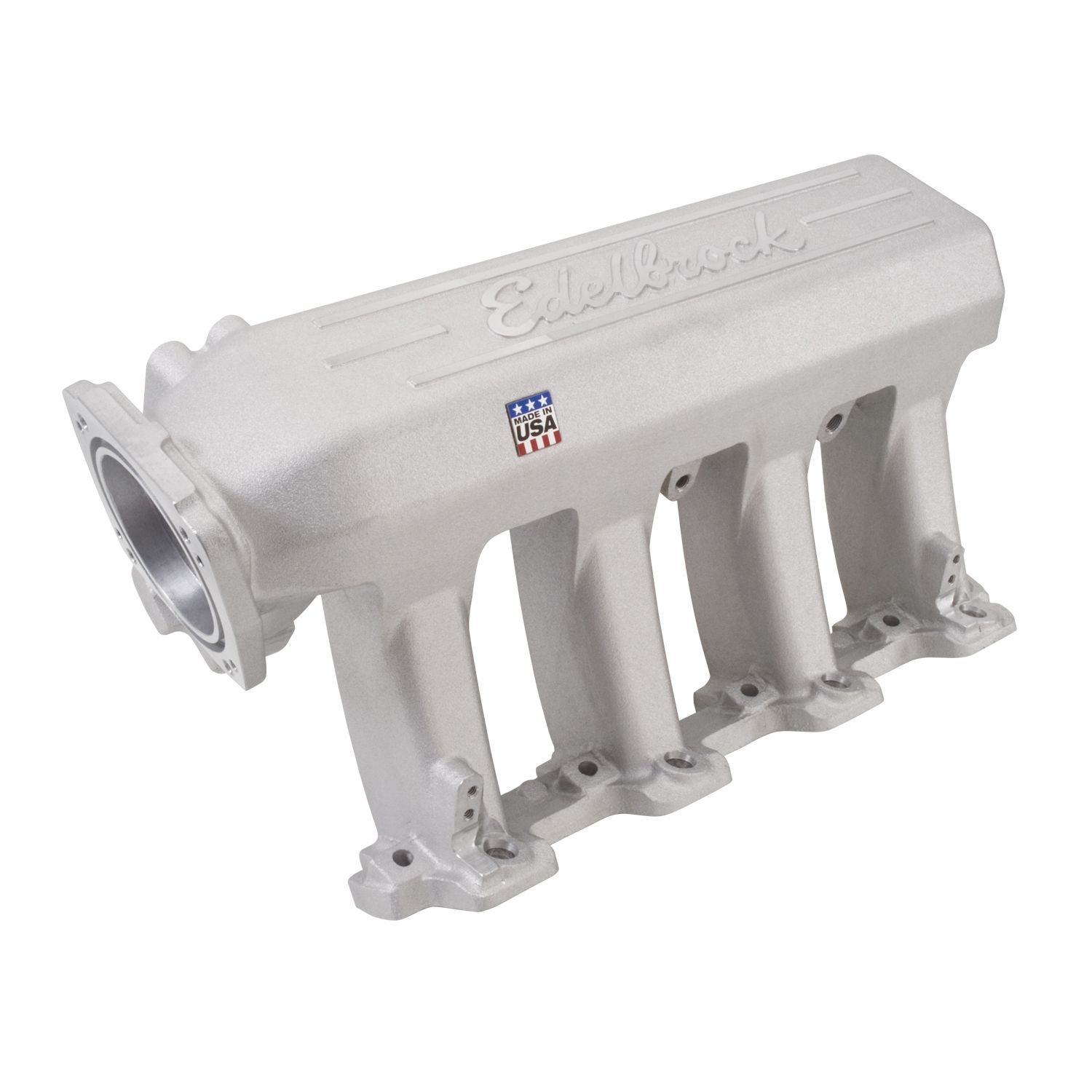

Edelbrock part #7140 Pro-Flo XT LS2 EFI intake manifold is engineered with a large plenum and tapered runners to deliver maximum horsepower and broad torque band throughout the rpm range (1500-7000 rpm). Features a 90mm throttle bore opening and 2.75" port exit height. This manifold produced 30 more horsepower over a stock LS6 manifold at 6500 rpm. This Pro-Flo XT LS2 intake manifold accepts GM OEM 90mm or Edelbrock #3869 throttle bodies. Compatible with LS1 Fuel Rail Kit #3629 (sold separately), which features -6 AN inlet and outlet.

Additional Attributes:

GTIN: 00085347071401
Basic Operating RPM Range: 1500-7000
Center Maximum Height: 10.200
CNC Ported: No
EGR Port: No
Finish: Satin
Flange Type: Throttle Body XT
Front Maximum Height: 10.200
Gasket Or Seal Included: No
Grade Type: Performance
Material: Aluminum
Rear Maximum Height: 10.000
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Series: Pro-Flo XT
Single Or Dual Plane Type: Single
Vehicle Model: Chevrolet

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 24 x 14.75 x 14.375 inches
Weight: 25.2 PG
