Engine Intake Manifold

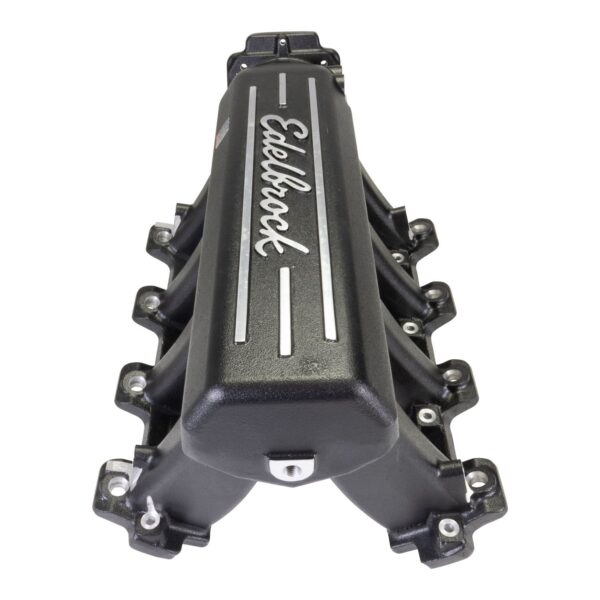

Edelbrock part #71393 Pro-Flo XT LS1 EFI intake manifold is engineered with a large plenum and tapered runners to deliver maximum horsepower and broad torque band throughout the rpm range (1500-7000 rpm). Features a 90mm throttle bore opening and 2.75" port exit height. This manifold produced 30 more horsepower over a stock LS6 manifold at 6500 rpm. The Edelbrock Pro-Flo XT LS1 #71393 EFI intake manifold Accepts Pro-Flo XT throttle body #3869 or adapter #2737 and standard LS1 throttle bodies. Compatible with LS1 Fuel Rail Kit #3629 (sold separately), which features -6 AN inlet and outlet. This manifold offers a durable black power coated finish for long lasting protection and a distinctive look.

Additional Attributes:

GTIN: 00085347713936
Basic Operating RPM Range: 1500-7000
Center Maximum Height: 10.200
CNC Ported: No
EGR Port: No
Finish: Black Powder Coated
Flange Type: Throttle Body XT
Front Maximum Height: 10.200
Gasket Or Seal Included: No
Grade Type: Performance
Material: Aluminum
Rear Maximum Height: 10.000
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Series: Pro-Flo XT
Single Or Dual Plane Type: Single
Vehicle Model: Chevrolet

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 24 x 14.75 x 14.375 inches
Weight: 24.25 PG
