Engine Intake Manifold

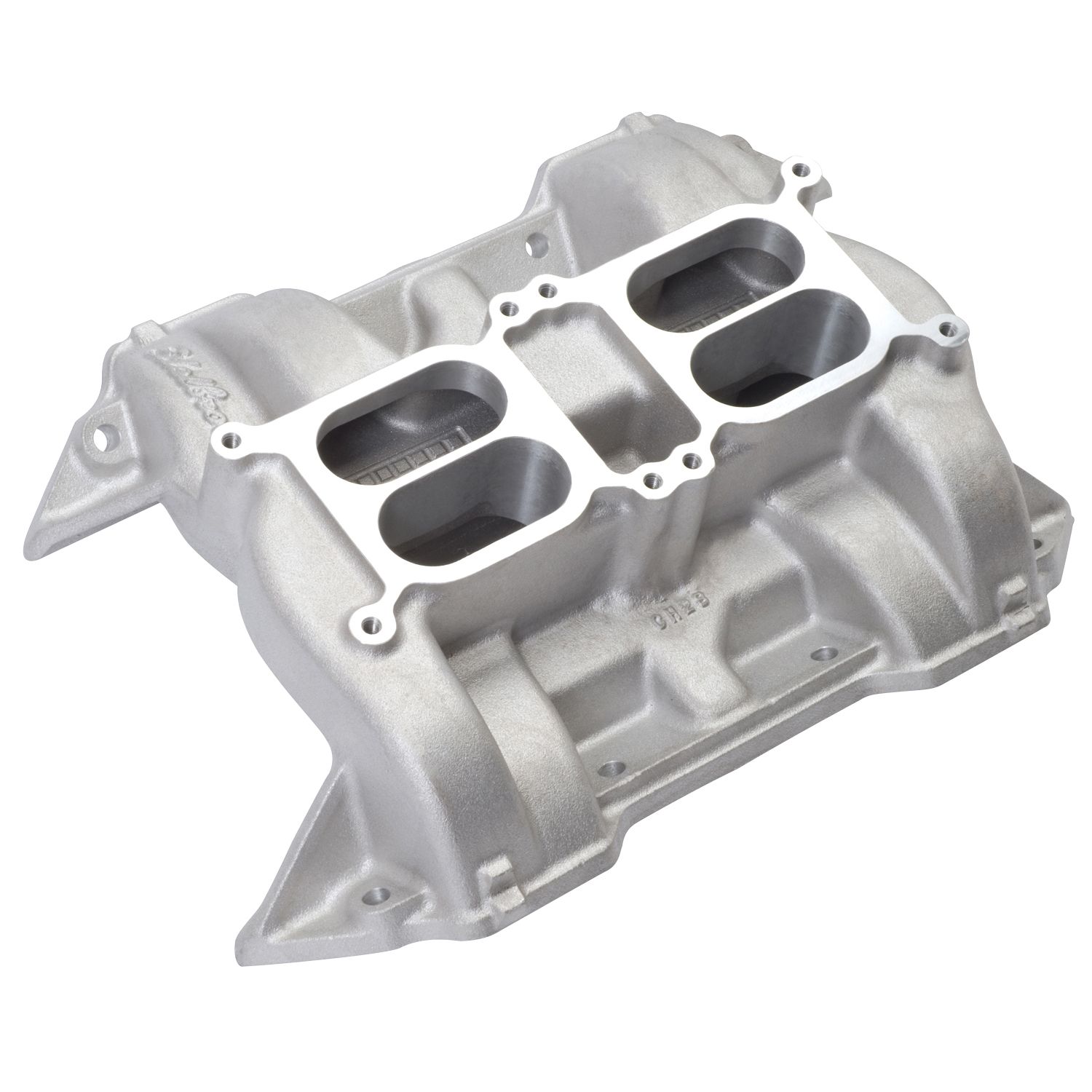

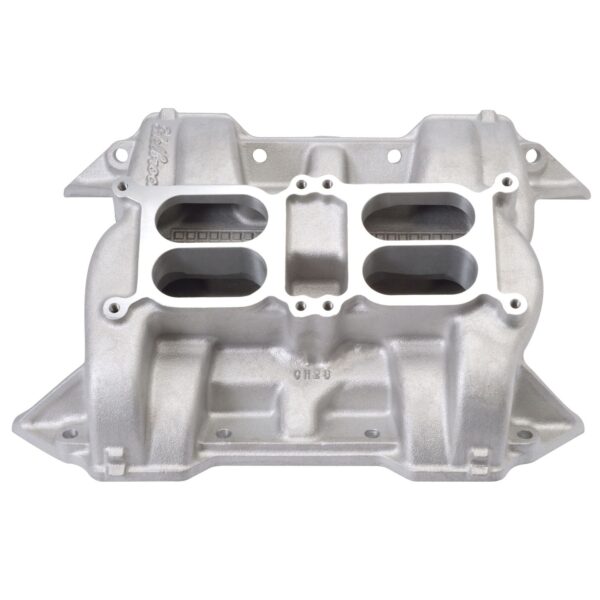

Edelbrock part #5440 Chrysler CH-28 Dual-Quad intake manifold is designed for 413-426-440 c.i.d. Chrysler V8's. Use with Performer-Plus cam #2192 for low-end torque or Performer RPM cam #7194 for top-end power. Will not fit 1962-64 Max Wedge heads. Carb center to carb center: 6-7/16". Manifold measures 8.75" across block.

Additional Attributes:

GTIN: 00085347054404
Basic Operating RPM Range: 1500-6000
Center Maximum Height: 4.660
CNC Ported: No
Color: Satin
EGR Port: No
Flange Type: 4150 Dual-Quad (4-Barrel Square Bore)
Front Maximum Height: 4.450
Gasket Or Seal Included: No
Grade Type: Performance
Material: Aluminum
Rear Maximum Height: 4.880
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Series: Dual-Quad/Multi Carb
Single Or Dual Plane Type: Dual
Vehicle Model: Chrysler

Extended Information:

Emissions : 2
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 23.625 x 14.75 x 7.5 inches
Weight: 19.91 PG
