Engine Intake Manifold

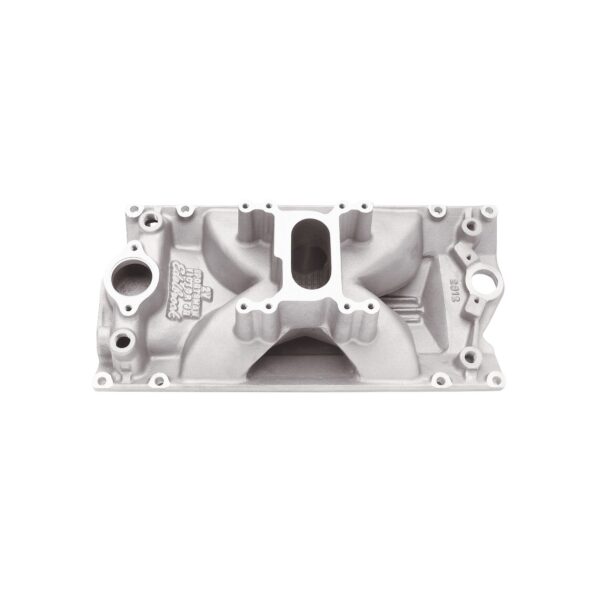

The Edelbrock Victor Jr. Sportsman 2V #2912 intake manifold is a dedicated design for the 2V racer and provides outstanding performance from 3500 to 7000 rpm. The runners are sized especially for 2V racing engines for the ultimate combination of torque and horsepower with better fuel distribution. An extra tall carburetor pad eliminates the need for spacers, and rear water outlets allow for a four corner coolant flow path if desired. It features dual distributor clamp locations, and port exits are sized to match cast iron Chevrolet Bowtie heads. Manifold accept standard restrictor plates and carb adapters.

Additional Attributes:

GTIN: 00085347029129
Center Maximum Height: 5.980
CNC Ported: No
Finish: Satin
Front Maximum Height: 5.980
Gasket Or Seal Included: No
Grade Type: Performance
Material: Aluminum
Rear Maximum Height: 5.980
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Single Or Dual Plane Type: Single Plane

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Obsolete

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 21 x 10.38 x 9.44 inches
Weight: 21.5 PG
