Engine Intake Manifold

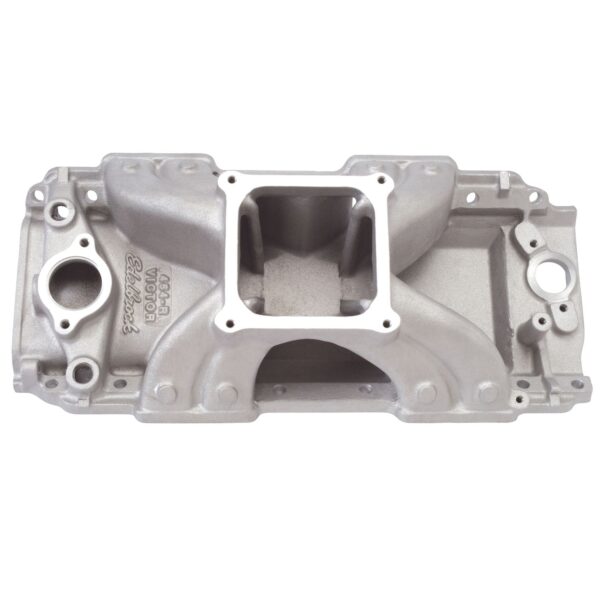

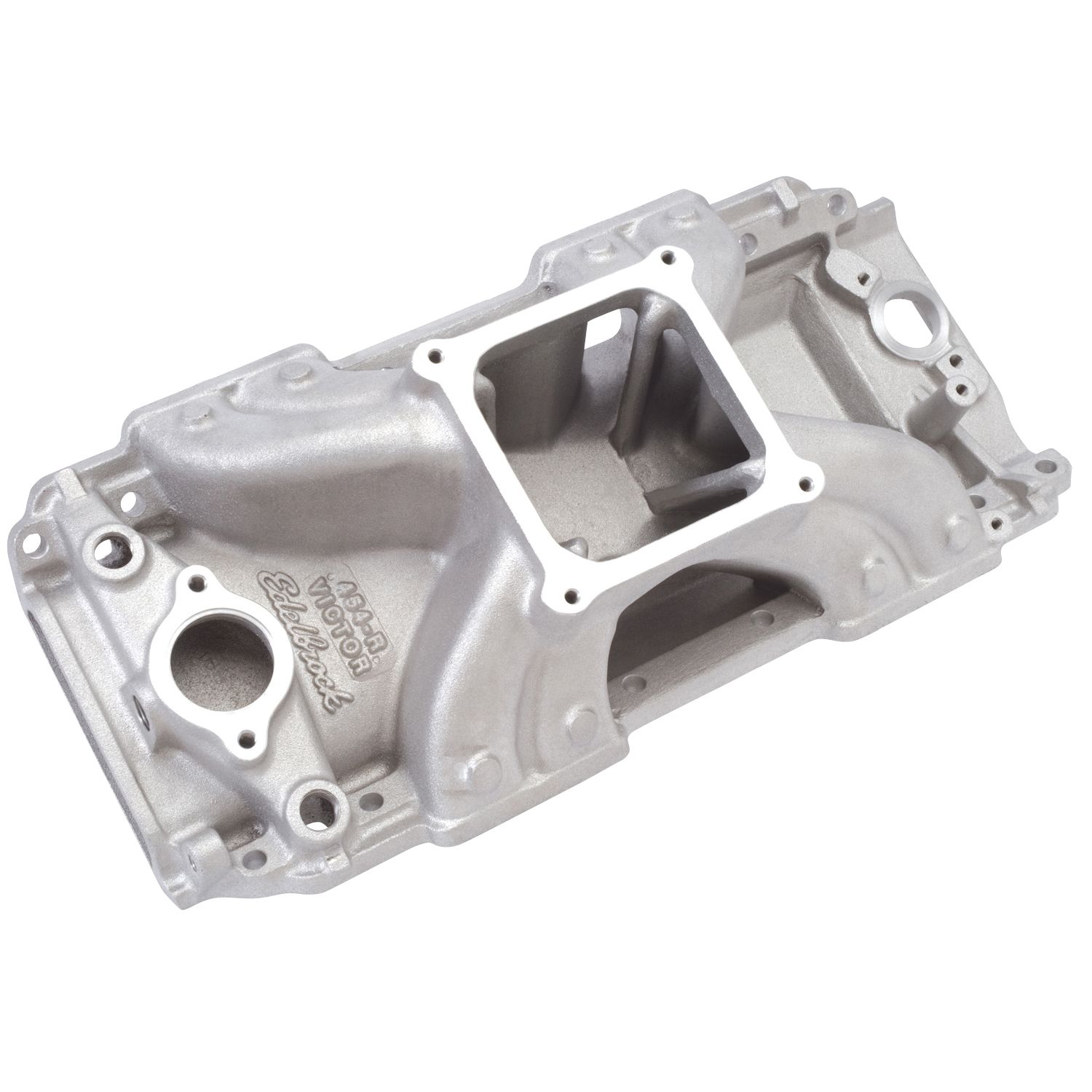

Edelbrock part #2911 Victor 454-TD intake manifold for big-blocks offer superior performance for drag racing and marine. This Intake manifold is for rectangular-port heads and fits the tall-deck (10.2") blocks. The manifold accepts 4500 Series carbs or standard-flange double-pumpers with our adapter #8716. For maximum hp with 4500 Series carbs, use 1" spacer #8717. The Victor 454-TD uses standard deck height distributor. This Victor intake manifold will fit Edelbrock Victor race heads #77609, #77409 and #77459.

Additional Attributes:

GTIN: 00085347029112
Center Maximum Height: 6.230
CNC Ported: No
Finish: Satin
Front Maximum Height: 6.230
Gasket Or Seal Included: No
Grade Type: Performance
Material: Aluminum
Rear Maximum Height: 6.230
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Single Or Dual Plane Type: Single Plane

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Obsolete

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 23.625 x 14.75 x 7.5 inches
Weight: 24.05 PG
