Engine Intake Manifold

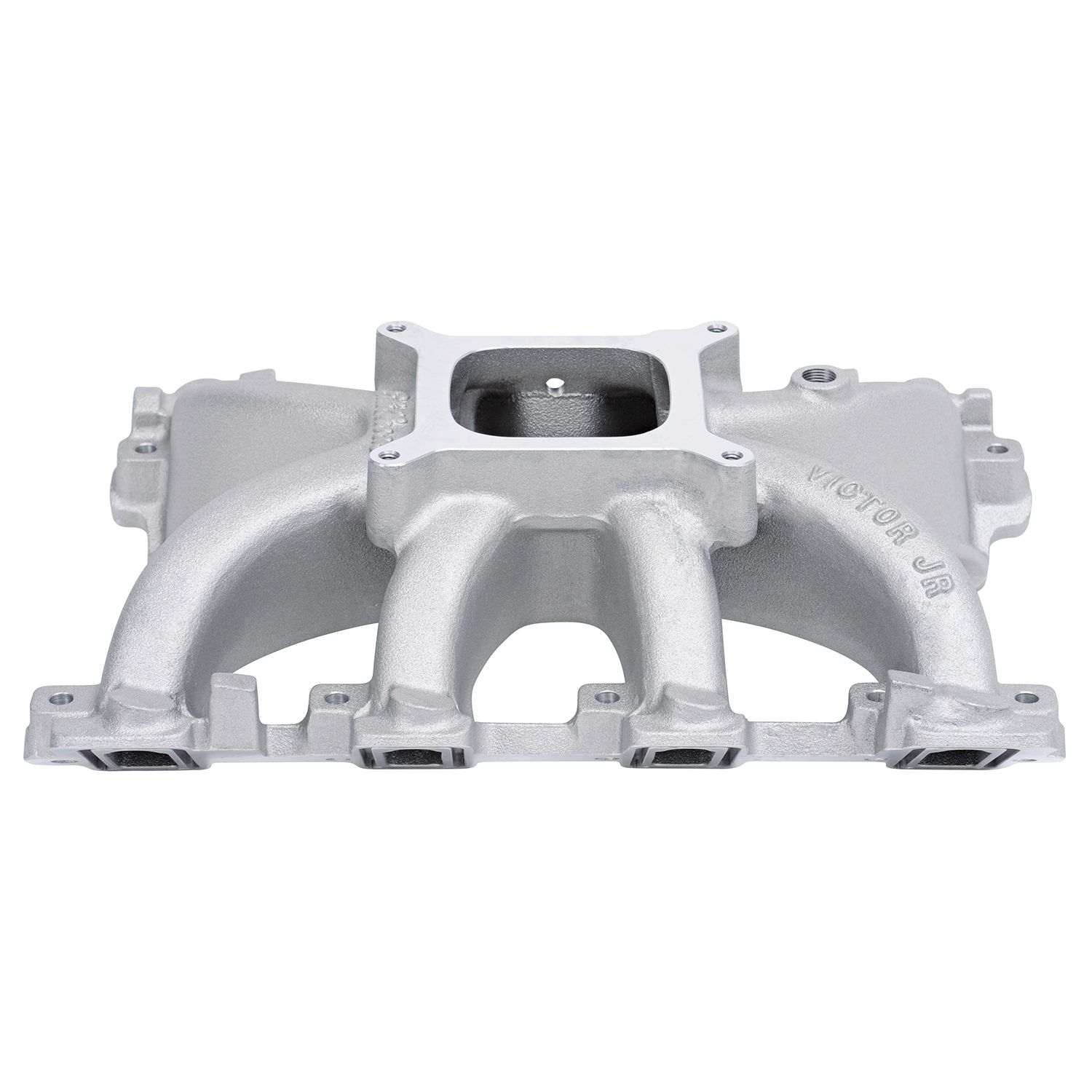

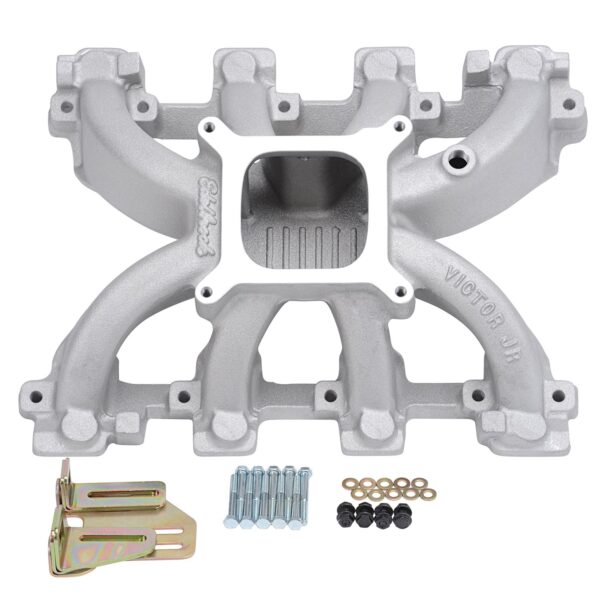

Edelbrock part #29087 Victor Jr. LS1 intake manifold is a high-rise single-plane intake capable of supporting up to 600 hp. The Victor Jr. LS1 features a flange that accepts a square-bore carburetors. It can be used on LS2 applications when matched with MSD's #6012 LS2 ignition controller (available through MSD Performance). Includes a throttle bracket designed to work with 700R-4, 200R-4 and Turbo 350 transmissions. Most applications will require hood modification.

Additional Attributes:

GTIN: 00085347290871
Basic Operating RPM Range: 3500-7500
Center Maximum Height: 4.950
CNC Ported: No
EGR Port: No
Finish: Satin
Flange Type: 4150
Front Maximum Height: 4.950
Gasket Or Seal Included: No
Grade Type: Performance
Material: Aluminum
Rear Maximum Height: 4.950
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Series: Victor
Single Or Dual Plane Type: Single
Vehicle Model: Chevrolet

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 23.625 x 14.75 x 7.5 inches
Weight: 17 PG
