Engine Intake Manifold

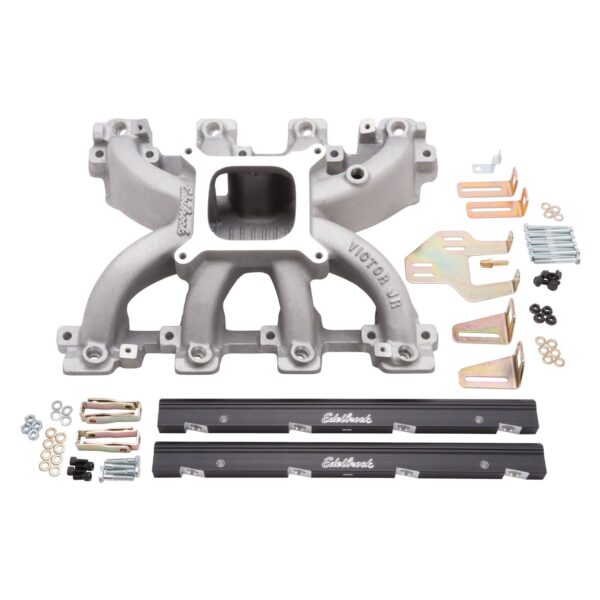

Edelbrock part #29086 Victor Jr. LS1 EFI intake manifold accepts a standard square bore throttle body. This compact single-plane intake is capable of supporting up to 650 hp. The Edelbrock Victor Jr. LS1 EFI intake manifold continues the Edelbrock tradition of enhanced engine breathing and balanced cylinder-to-cylinder air/fuel distribution for improved performance. Includes a throttle bracket designed to work with 700-R4, 200-4R and Turbo 350 transmissions, as well as Edelbrock Fuel Rail Kit #3638. Most applications will require hood modification.

Additional Attributes:

GTIN: 00085347290864
Basic Operating RPM Range: 3500-7500
Center Maximum Height: 4.950
CNC Ported: No
EGR Port: No
Finish: Satin
Flange Type: 4150
Front Maximum Height: 4.950
Gasket Or Seal Included: No
Grade Type: Performance
Material: Aluminum
Rear Maximum Height: 4.950
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Series: Victor
Single Or Dual Plane Type: Single
Vehicle Model: Chevrolet

Extended Information:

Emissions : EPA Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 23.625 x 14.75 x 7.5 inches
Weight: 19.3 PG
