Engine Intake Manifold

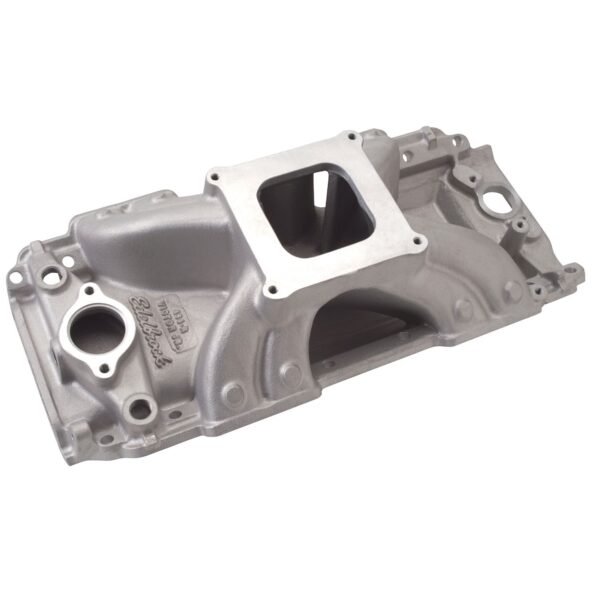

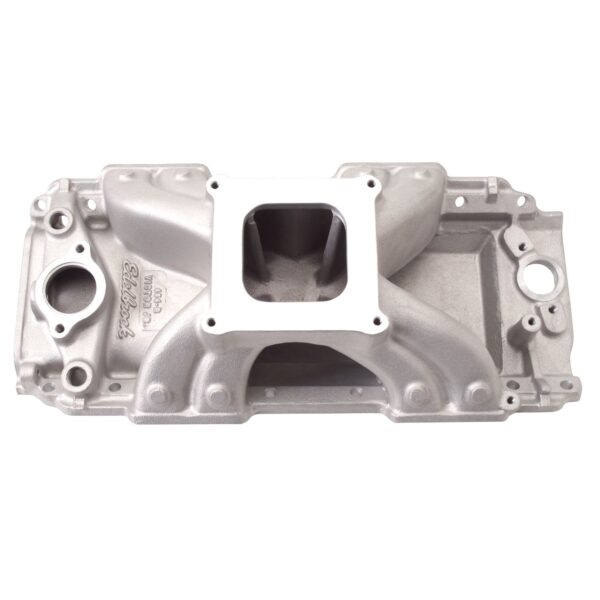

The Edelbrock Victor Jr. 454-R #29020 intake manifold with 3/4" radius filled-corner runners is designed for competition 396-502 big-block Chevys. This intake is designed to optimize the flow characteristics of an 850 cfm standard flange carb. Features include extended runner dividers, smaller plenum chambers and unique runner design for better 60 foot times and max power from 3500 to 7500 rpm. This manifold is especially suited to 502 c.i.d. and smaller competition engines. #29020 is a single plane 4150 flange competition manifold designed to fit standard deck blocks from 1965 to present. This manifold is cast with 3/8" more material in the corners of the ports for a final radius of 3/4". This extra material allows for custom port matching for use with various cylinder head applications. It is designed to be matched with our Edelbrock/Musi Victor 24 degree Pro-Port CNC heads #61419 or #61409 for 950+ hp out-of-the-box potential!

Additional Attributes:

GTIN: 00085347290208

Extended Information:

Life Cycle Status: Obsolete

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 23.625 x 14.75 x 7.5 inches
Weight: 23.05 PG
