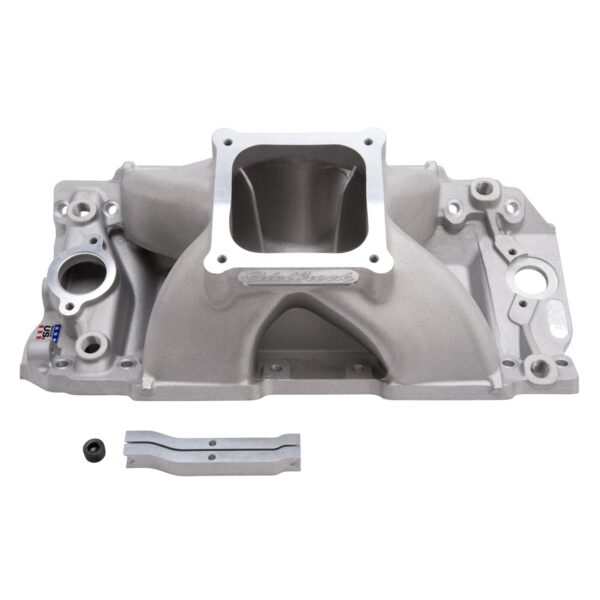

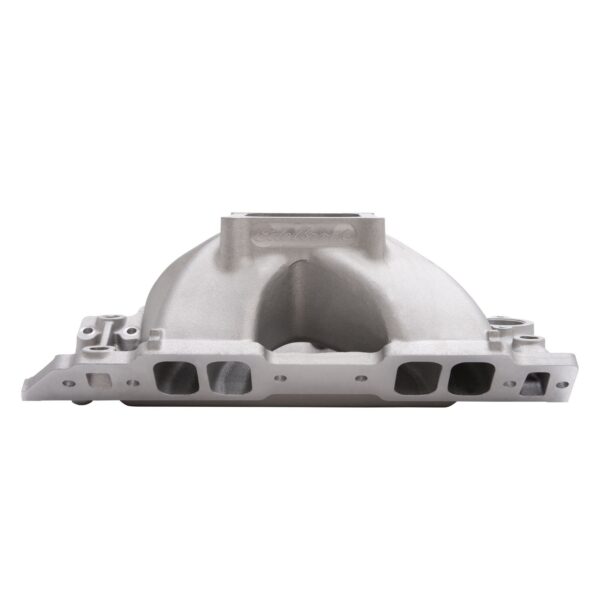

Engine Intake Manifold

Edelbrock part #28978 Super Victor II intake manifold is designed for use with large cubic inch big-block Chevy Tall-Deck engines using the latest design conventional rectangular port heads. This single-plane intake manifold is ideal for any 1,000+ horsepower drag race engine with high air flow requirements. The Super Victor II intake manifold is machined for use on tall-deck (10.2") blocks with Brodix SR20 cylinder heads with no modifications out of the box. Accepts standard height distributors. All manifolds have an extra large carburetor outer flange with a 5" x 5" opening to fit high flow carburetors and throttle stops.

Additional Attributes:

GTIN: 00085347289783
Basic Operating RPM Range: 3500-8500
Center Maximum Height: 7.280
CNC Ported: No
EGR Port: No
Finish: Satin
Flange Type: 4500
Front Maximum Height: 7.280
Gasket Or Seal Included: No
Grade Type: Performance
Material: Aluminum
Rear Maximum Height: 7.280
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Series: Victor
Single Or Dual Plane Type: Single
Vehicle Model: Chevrolet

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 23 x 16.125 x 9.25 inches
Weight: 27.95 PG
