Engine Intake Manifold

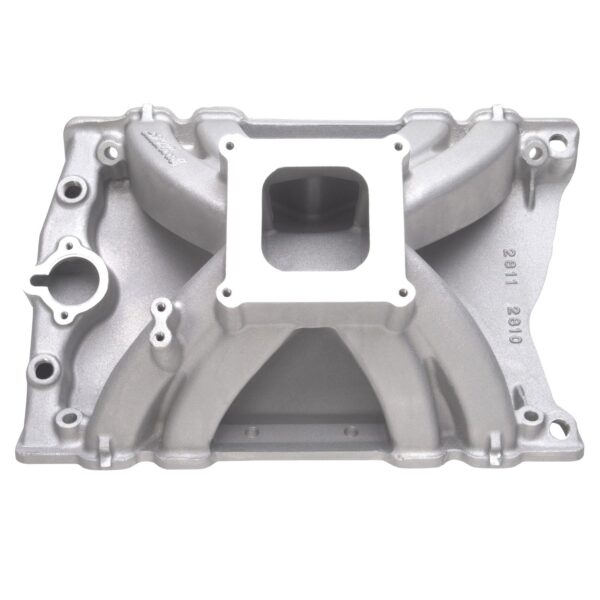

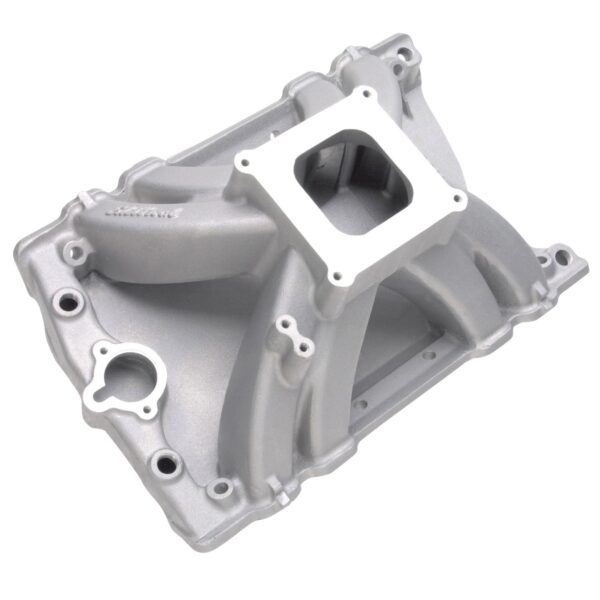

Edelbrock part #2810 Victor Oldsmobile 455 drag racing intake manifold provide power levels never before available for competition single-carb 455 Olds engines. In independent flow testing, our port-matched design out-flowed the best fully ported manifolds on the market. Featuring a single-plane "Air-Gap" design, they are available for square-bore or 4500 Series carbs to accommodate many competition applications, and offer significant horsepower increases over existing intakes in the 4500 to 7500 rpm range. With a carb mount pad height of 8.2", this manifold stand more than three inches taller than the Edelbrock Torker manifold and incorporate a high-flow 3.4-square-inch runner. We've removed the intake bolts between the runners, thus creating a smoother airflow path for higher airflow and more power! This intake manifold features a port size and shape that has been optimized to match the flow characteristics of Edelbrock Performer RPM #60519 aluminum cylinder heads.

Additional Attributes:

GTIN: 00085347028108
Basic Operating RPM Range: 3500-7500
Center Maximum Height: 8.200
CNC Ported: No
EGR Port: No
Finish: Satin
Flange Type: 4150
Front Maximum Height: 8.200
Gasket Or Seal Included: No
Grade Type: Performance
Material: Aluminum
Rear Maximum Height: 8.200
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Series: Victor
Single Or Dual Plane Type: Single
Vehicle Model: Oldsmobile

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 24 x 16.25 x 9.4 inches
Weight: 31.1 PG
