Engine Cylinder Head Stud

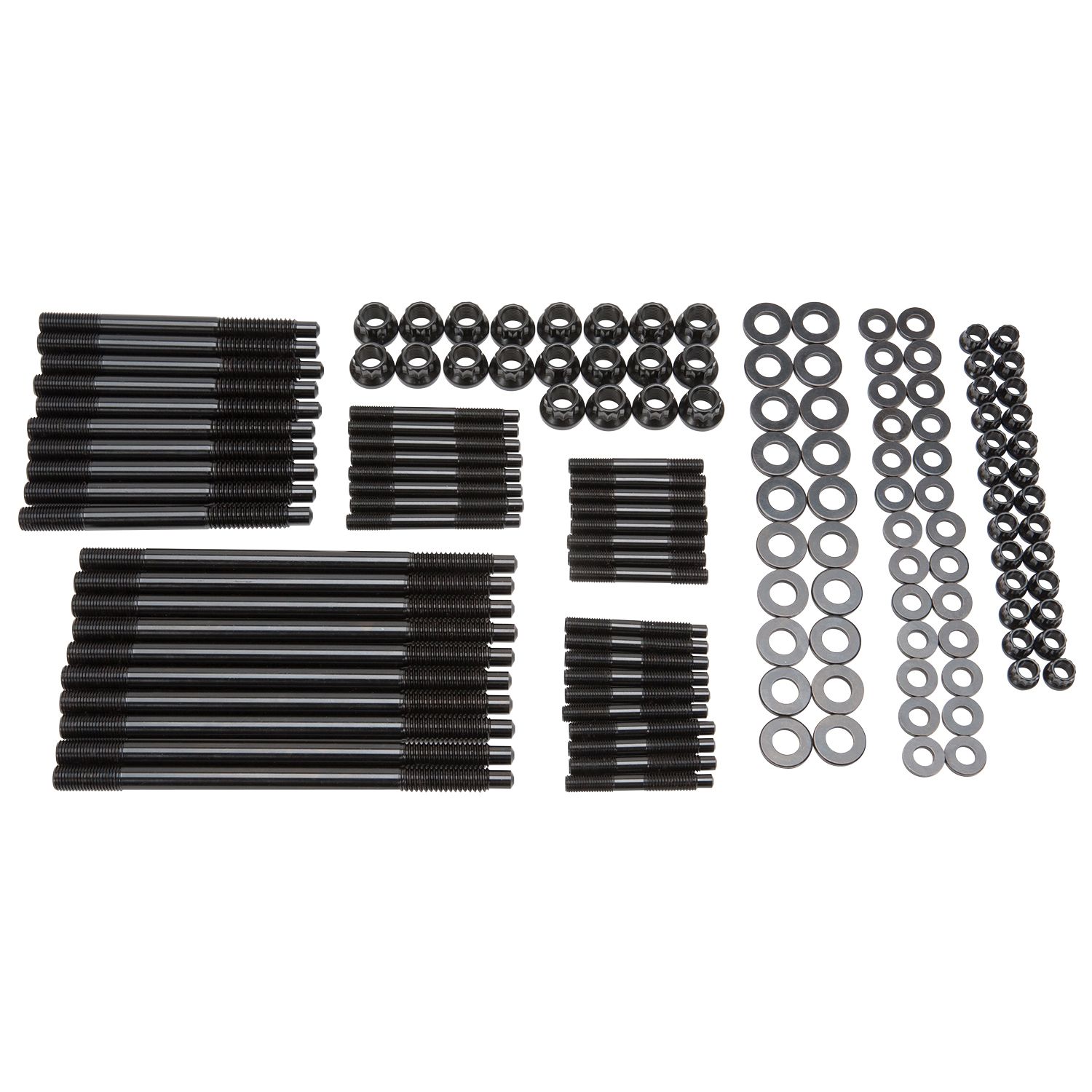

This head stud kit is required when using Edelbrock LS-R cylinder heads #770468 and #770469 on GM LSX engine blocks. Includes 10 7/16" long studs, 10 7/16" short studs, 8 5/16" exhaust studs, 10 5/16" intake flange studs, 8 5/16" valley studs, 20 7/16" washers with nuts and 26 5/16" washers with nuts.

Additional Attributes:

GTIN: 00085347085101
End 1 Thread Diameter: 0.4375
End 1 Thread Type: Fine
End 2 Thread Diameter: 0.3125
End 2 Thread Type: Fine
Finish: Black Oxide
Grade: Performance
Length: (8-Valley) 2.35 in, (10-Intake) 2.40 in, (8-Outside) 3.00 in, (10-Short) 4.95 in, (10-Long) 7.37
Material: Chromoly
Quantity: Kit
Recommended Use: With Part #770468, #770469
RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Washers Included: Yes

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 8.75 x 4.1875 x 2.5625 inches
Weight: 7.25 PG
