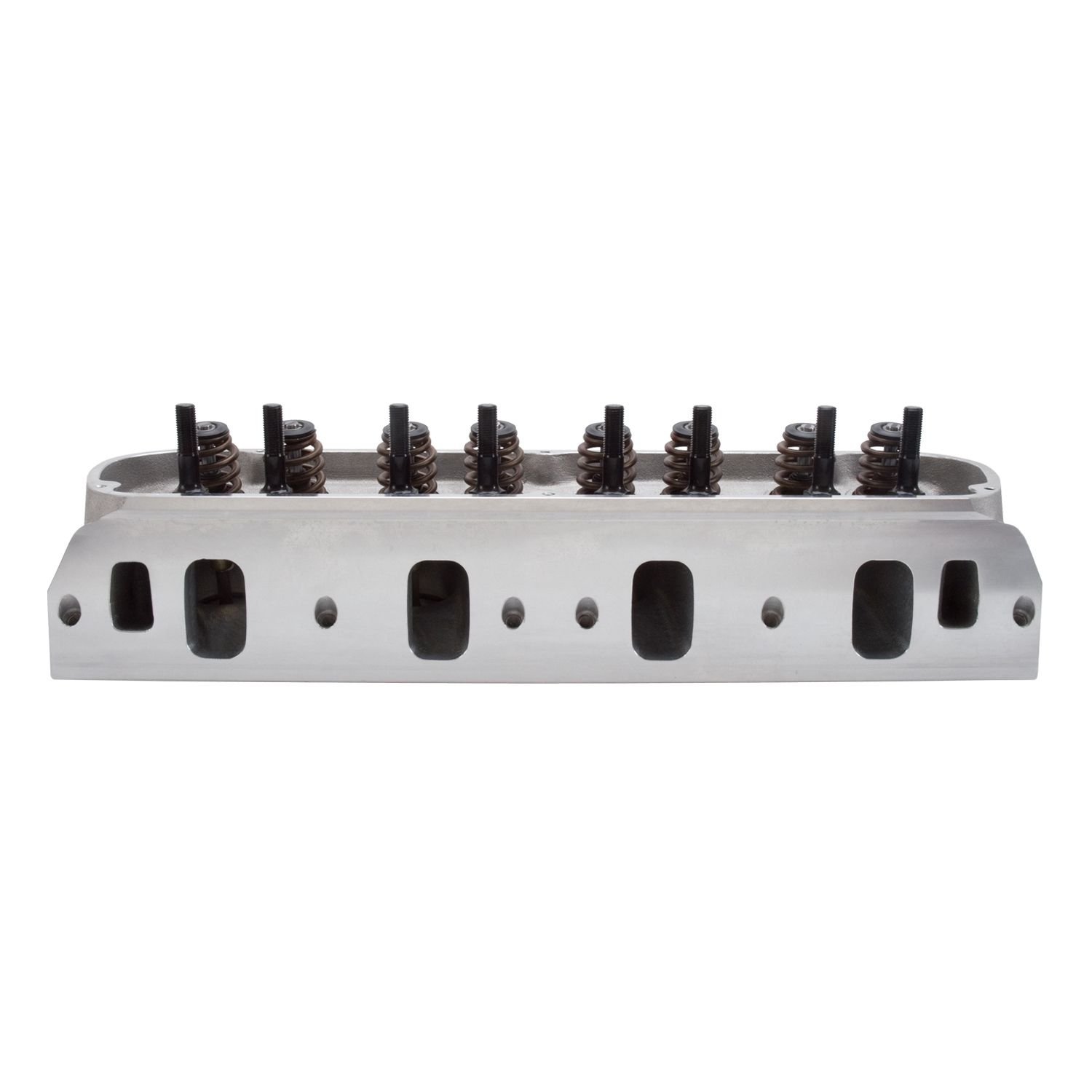

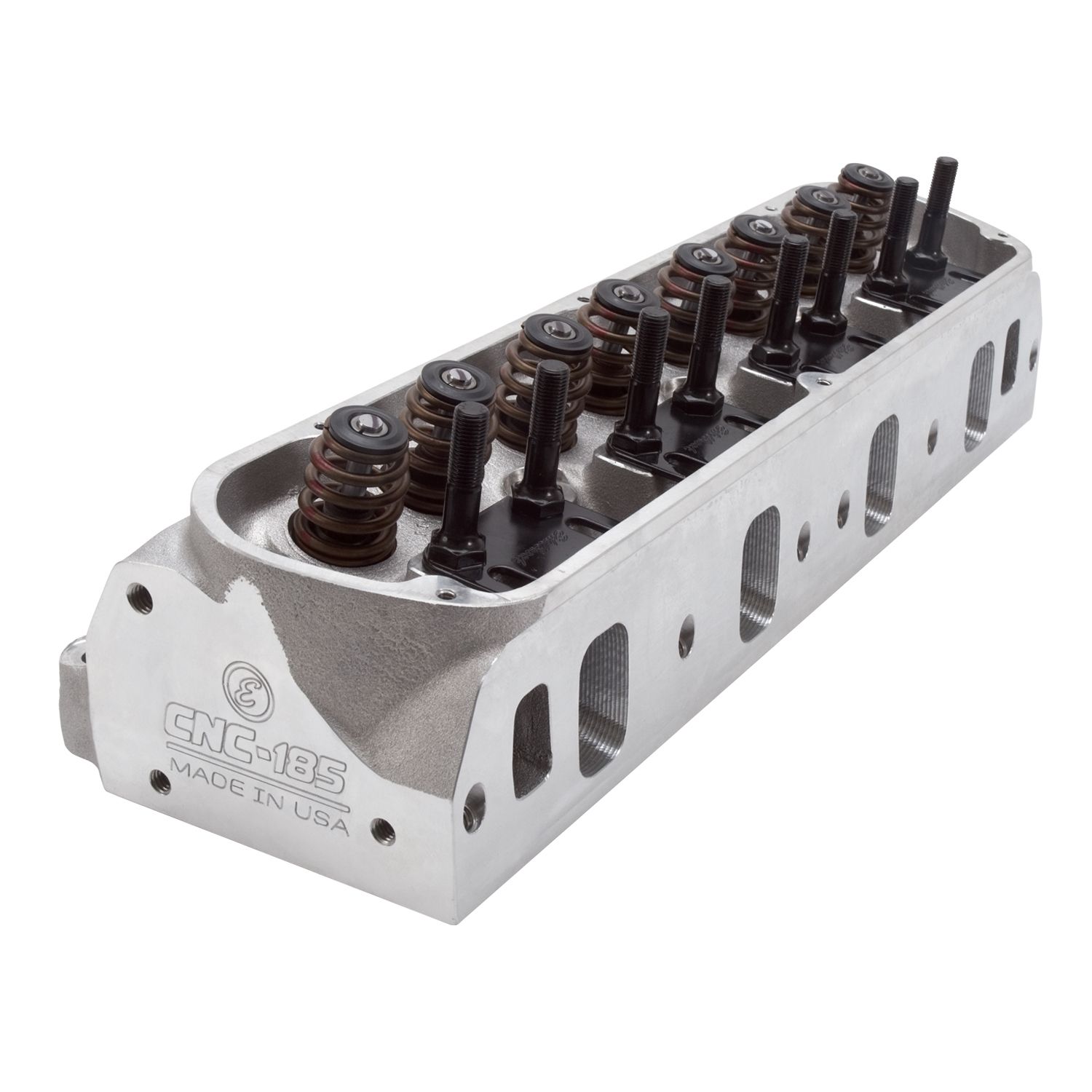

Engine Cylinder Head

The Edelbrock part #79259 Small Block Ford E-CNC 185 cylinder head is the ultimate in performance. This cylinder head is fully CNC ported for maximum horsepower and torque, making them ideal for high-performance's street and light duty racing applications. They also feature high-quality lightweight valve springs and heavy duty hardware for maximum lift and maintain the stock exhaust port location. E-CNC 185 FORD FEATURES: – CNC ported to achieve optimal air-flow for maximum horsepower and torque in high Performance's street and light duty racing applications – The casting and port designs are all new and engineered for great performance – Fully CNC'd intake ports, combustion chambers and exhaust ports for improved air-flow – Head feature 2.02" intake and 1.57" exhaust, 8mm stem valves and are equipped with conical valve springs and steel retainers for a lightweight and durable valve train combo – Aggressive 18deg valve angle for maximum performance and accepts common intake manifolds such as Edelbrock Performer RPM and RPM II – Equipped with valve springs for use in hydraulic roller applications – Combustion chamber size of 59cc – Maximum lift: .600"

Additional Attributes:

GTIN: 00085347792597
Camshaft Type: Hydraulic Roller
CNC Ported: Yes
Combustion Chamber Volume: 59
Construction Type: Complete
Deck Thickness: 0.625
EGR Port: No
Exhaust Port Location: Standard
Exhaust Runner Volume: 75
Exhaust Valve Diameter: 1.57
Family: E-CNC
Grade Type: Performance
Guide Material: Manganese Bronze
Guide Plate Material: Hardened Steel
Guide Plates Included: Yes
Head Casting Number: N/A
Horsepower: 350-500
Intake Runner Volume: 185
Intake Valve Diameter: 2.02
Material: Aluminum
Push Rod Diameter: (Suggested) 0.3125
Quantity: Sold Individually
Retainer Included: Yes
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Rocker Arm Stud Diameter: 0.4375
Seat Material: Ductile Iron
Series: E-CNC
Valve Angle: 18
Valve Included: Yes
Valve Spring Diameter: 1.30
Valve Spring Maximum Lift: 0.600
Valve Springs Included: Yes
Valve Stem Diameter: 0.314961

Extended Information:

Emissions : EPA Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 22.1875 x 10.125 x 7.1875 inches
Weight: 32.15 PG
