Engine Cylinder Head

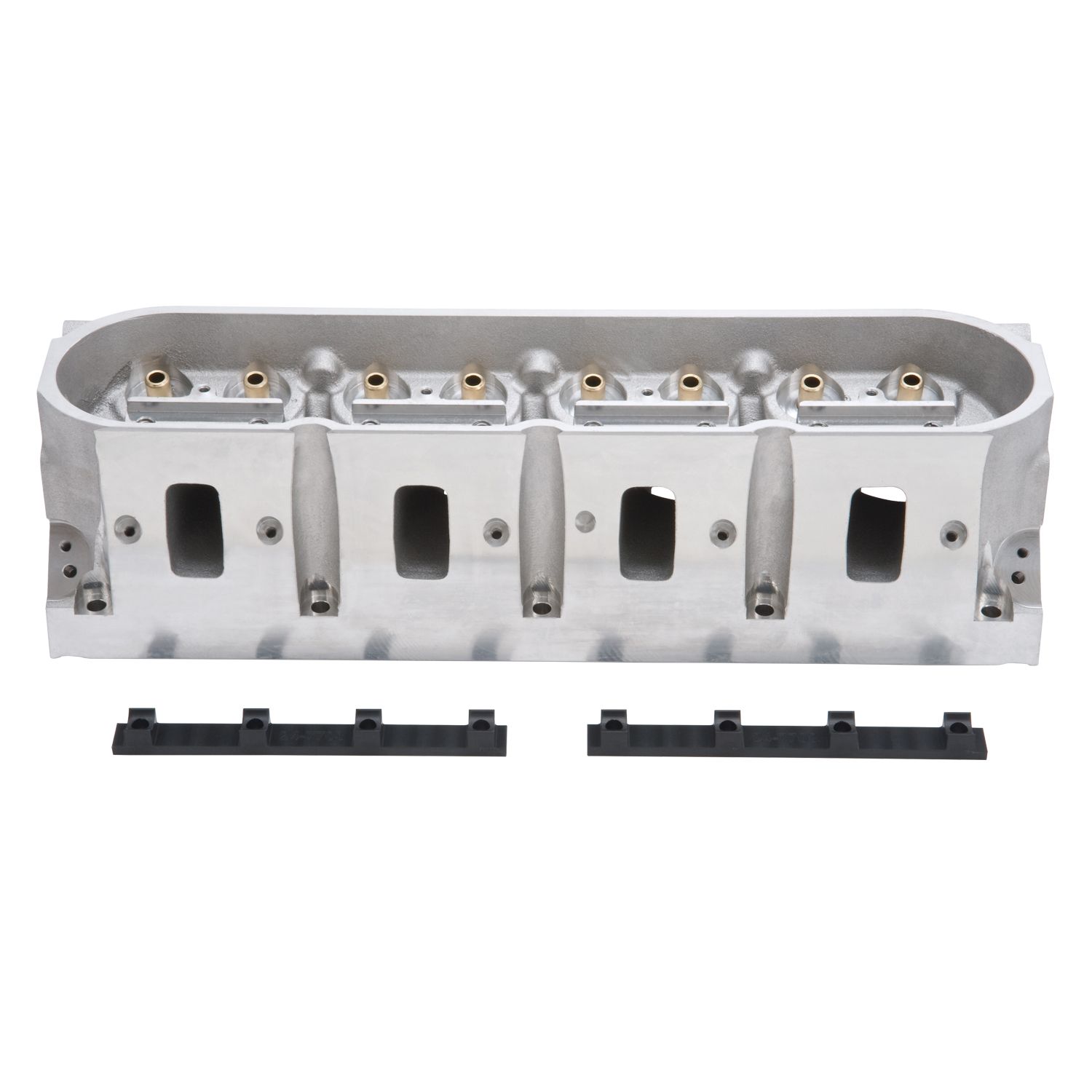

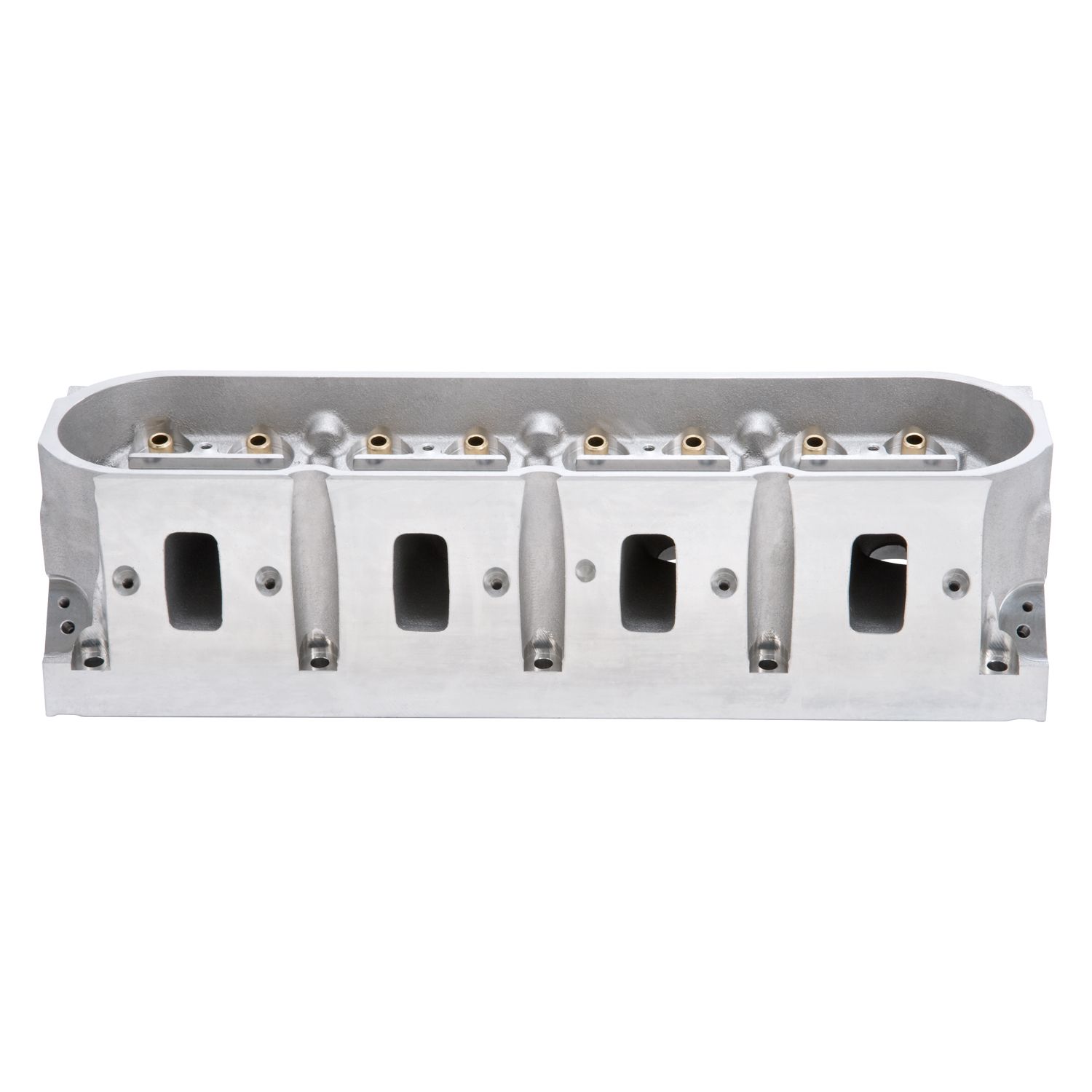

The Edelbrock 77369 Small Block Chevy LS7 Pro-Port Cylinder head is designed specifically for the professional cylinder head porter and engine builder. Like the other Edelbrock Cylinder head, The Pro-Port cylinder head is also cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting. In most cases, seats and manganese-bronze valve guides are included, but not installed. Please note: This head can not be used without professional head preparation. Pro-Port RAW Features Include: – Unported versions of Edelbrock race-winning Victor Series CNC head for the professional cylinder head porter and engine builder – The Pro-Port cylinder head is cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting – The only head designed specifically to accommodate almost any CNC port shape, size or location – Offers enough wall thickness for CNC machining to various port dimensions – In most cases seats and manganese-bronze valve guides are included – Some of the Edelbrock Pro-Port Raw Head Feature Our Special Hot Isostatic Pressing or HIP Process.

Additional Attributes:

GTIN: 00085347773695
CNC Ported: No
Combustion Chamber Volume: N/A
Construction Type: Pro-Port Raw
Deck Thickness: 0.625
EGR Port: #N/A
Exhaust Valve Diameter: (Suggested) 1.38 in x 1.00
Family: Victor Jr.
Grade Type: Performance
Guide Material: Manganese Bronze
Guide Plates Included: No
Head Casting Number: N/A
Intake Valve Diameter: (Suggested) 2.200
Material: Aluminum
Quantity: Sold Individually
Retainer Included: No
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Seat Angle: Exhaust 45 deg/Intake 45
Seat Material: Ductile Iron
Series: Pro-Port
Specialty: Hot Isostatic Pressing (HIP) Processing
Valve Angle: 12
Valve Included: No
Valve Springs Included: No

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Obsolete

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 26 x 10.875 x 8.375 inches
Weight: 31 PG
