Engine Cylinder Head

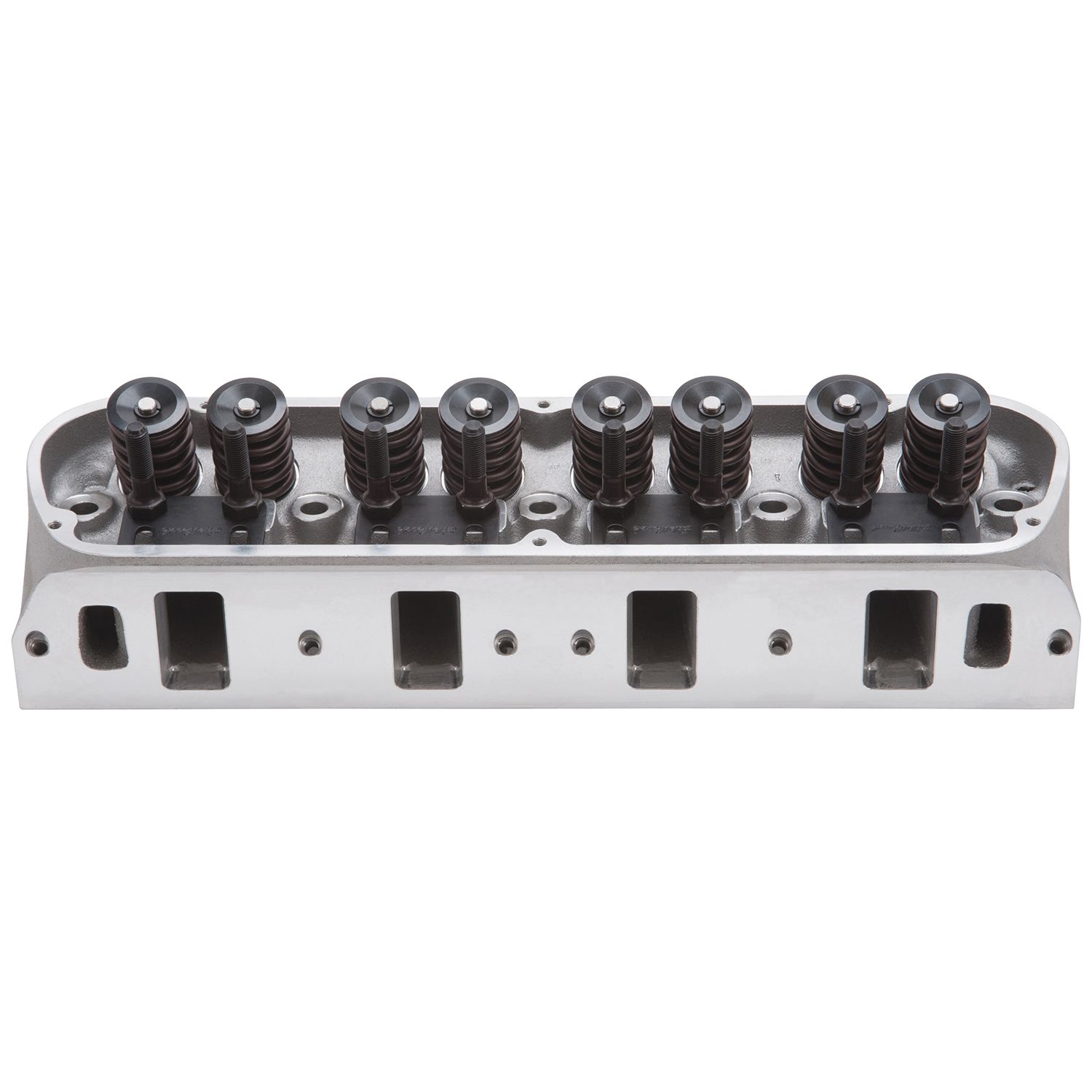

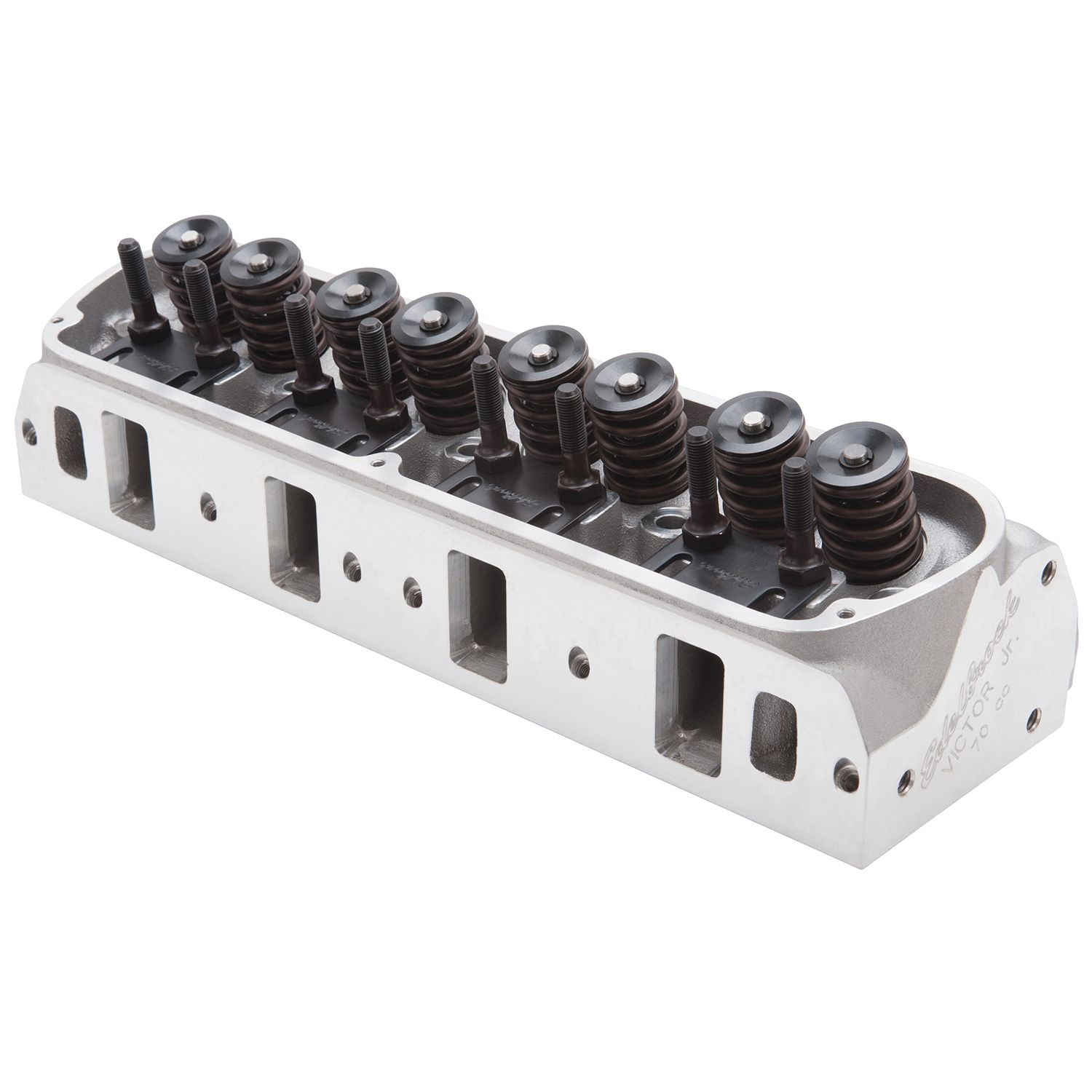

The Edelbrock 77359 Victor Jr. Small Block Ford cylinder heads offer high horsepower potential on competition level engines and are compatible with OE valve train and pistons for bolt-on convenience. VICTOR JR. 20 Deg – 210cc FEATURES: 500+ horsepower potential out-of-the-box using stock valve train geometry High-flowing 210cc intake ports and .130" raised 75cc exhaust ports Available with 60cc or 70cc combustion chambers 70cc combustion chambers are ideal for turbocharged and supercharged applications CNC gasket-matched port entries/exits with blended valve bowls Spark plug holes and valves are in the stock location Valve cover rail raised .150" A relief in the head allows most roller lifters to be changed without removing heads

Additional Attributes:

GTIN: 00085347773596
CNC Ported: No
Combustion Chamber Volume: 70.0
Deck Height: 9.5
Deck Thickness: 0.625
Exhaust Valve Diameter: 1.600
Grade Type: Performance
Guide Plate Material: Hardened Steel
Guide Plates Included: Yes
Head Casting Number: 7716F
Intake Runner Volume: 210.0
Intake Valve Diameter: 2.050
Material: Aluminum
Push Rod Diameter: 0.312
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Rocker Arm Stud Diameter: 0.437
Valve Angle: 20
Valve Spring Diameter: 1.550
Valve Spring Maximum Lift: 0.670
Valve Stem Diameter: 0.341

Extended Information:

Emissions : EPA Eligible
Life Cycle Status: Obsolete

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 26 x 10.85 x 8.55 inches
Weight: 25.75 PG
