Engine Cylinder Head

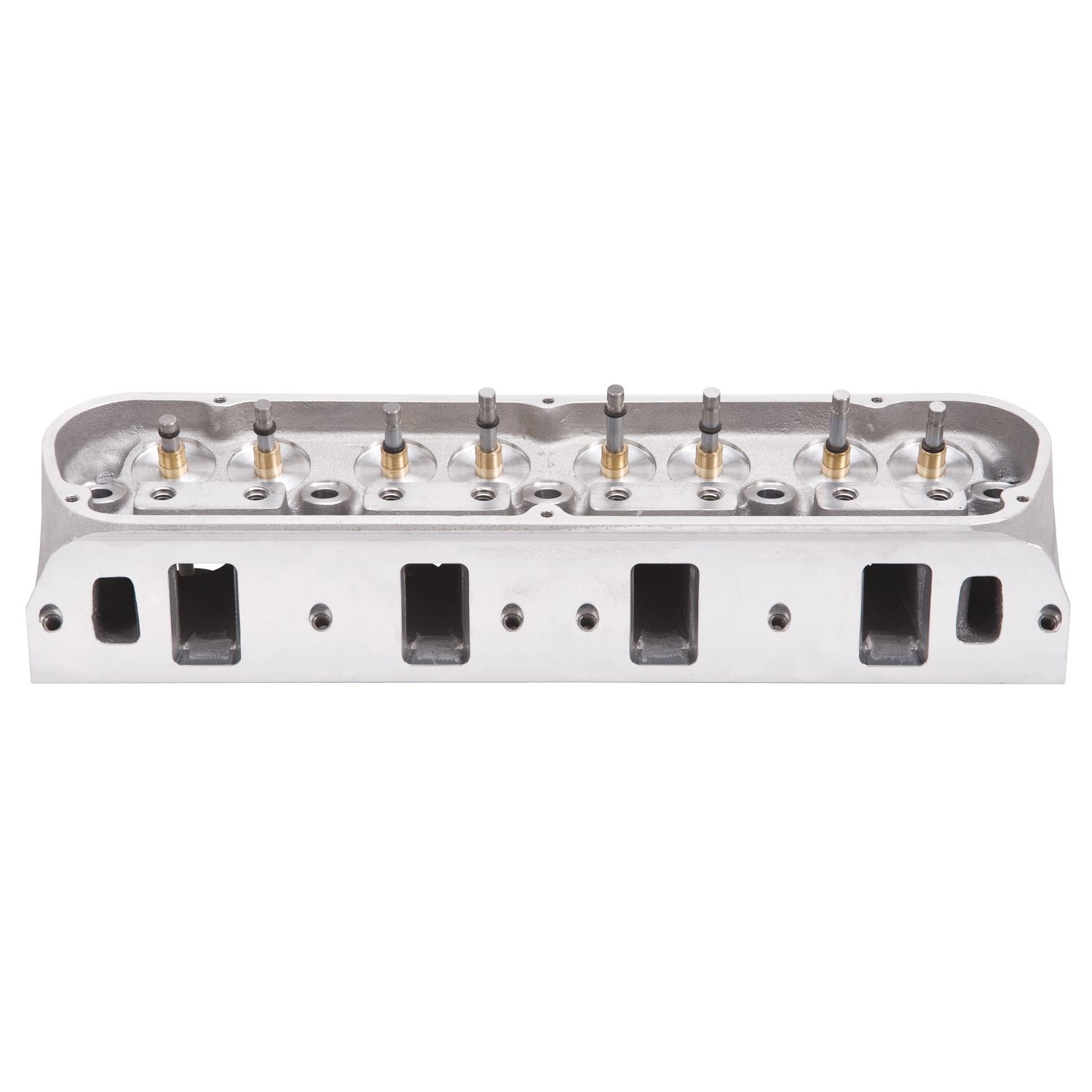

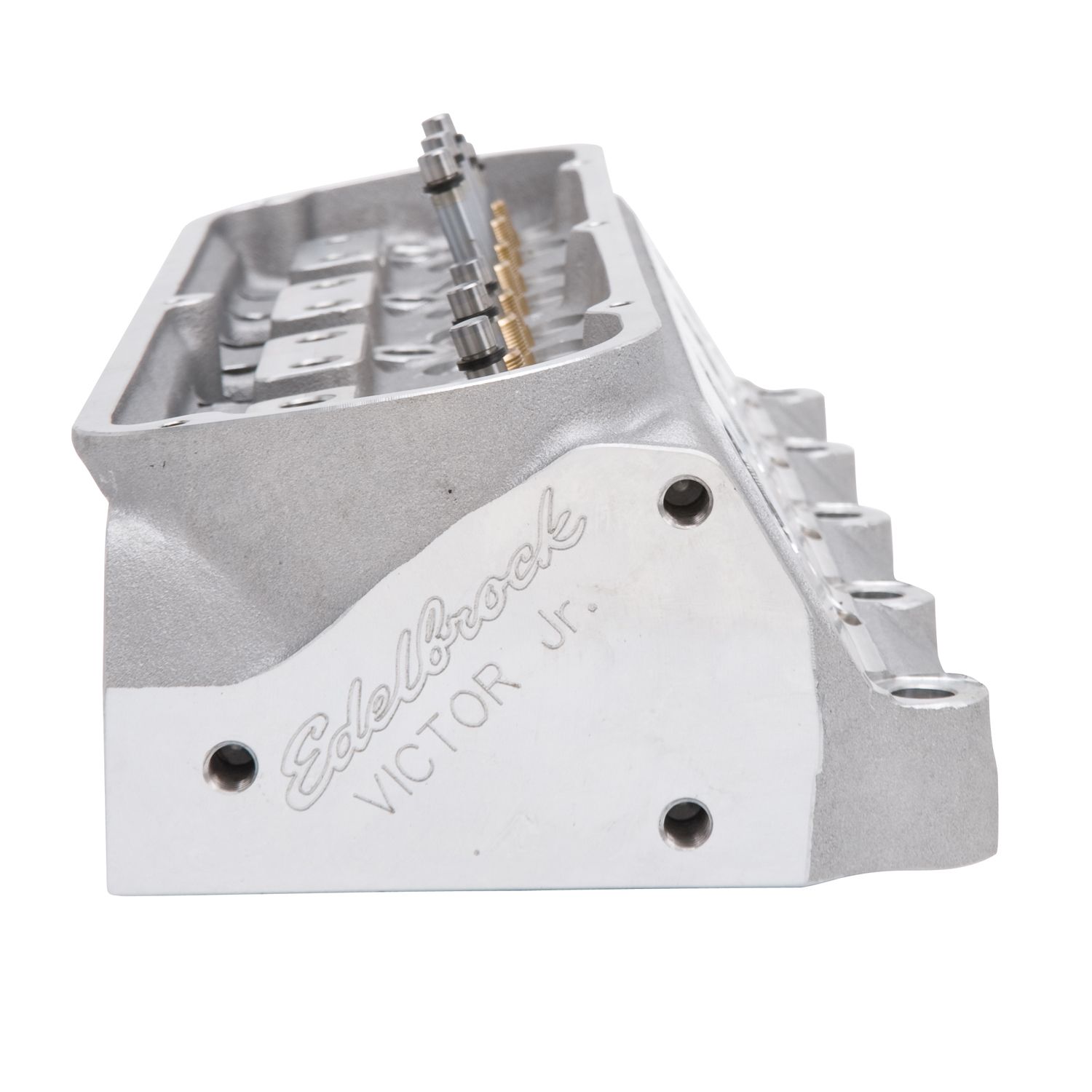

The Edelbrock 77169 Victor Jr. Small Block Ford cylinder head offers high horsepower potential on competition level engines and are compatible with OE valve train and pistons for bolt-on convenience. VICTOR JR. 20deg – 210cc FEATURES: 500+ horsepower potential out-of-the-box using stock valve train geometry High-flowing 210cc intake ports and .130" raised 75cc exhaust ports Available with 60cc or 70cc combustion chambers 70cc combustion chambers are ideal for turbocharged and supercharged applications CNC gasket-matched port entries/exits with blended valve bowls Spark plug holes and valves are in the stock location Valve cover rail raised .150" A relief in the head allows most roller lifters to be changed without removing the head

Additional Attributes:

GTIN: 00085347771691
CNC Ported: No
Combustion Chamber Volume: 60
Construction Type: Bare
Deck Thickness: 0.625
EGR Port: No
Exhaust Port Location: +.125
Exhaust Runner Volume: 75
Family: Victor Jr.
Grade Type: Performance
Guide Material: Manganese Bronze
Guide Plates Included: Yes
Head Casting Number: N/A
Intake Runner Volume: 210
Material: Aluminum
Quantity: Sold Individually
Retainer Included: No
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Seat Angle: Exhaust 45 deg/Intake 45
Seat Material: Ductile Iron
Series: Victor Jr.
Valve Included: No
Valve Springs Included: No

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 22.1875 x 10.125 x 7.1875 inches
Weight: 25.8 PG
