Engine Cylinder Head

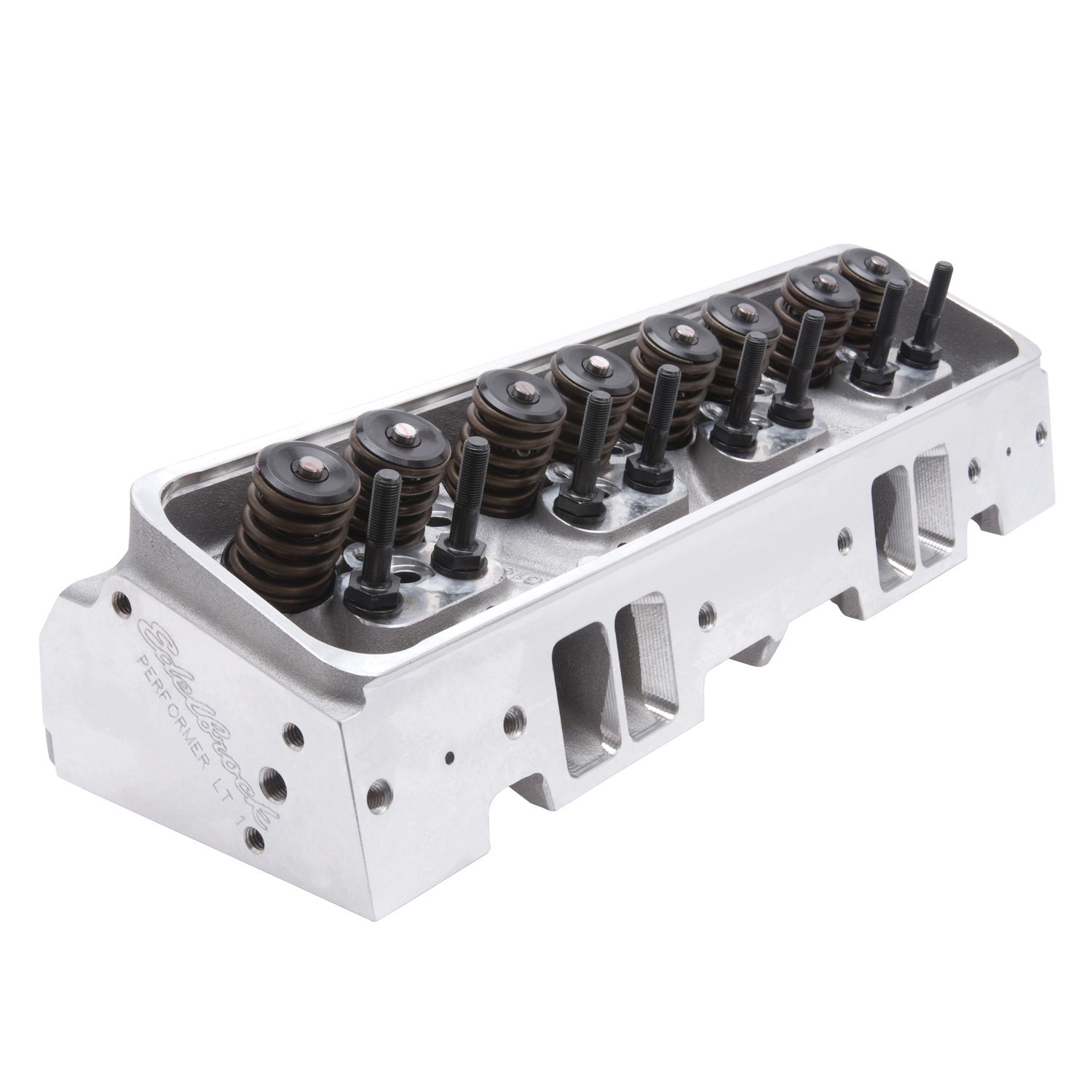

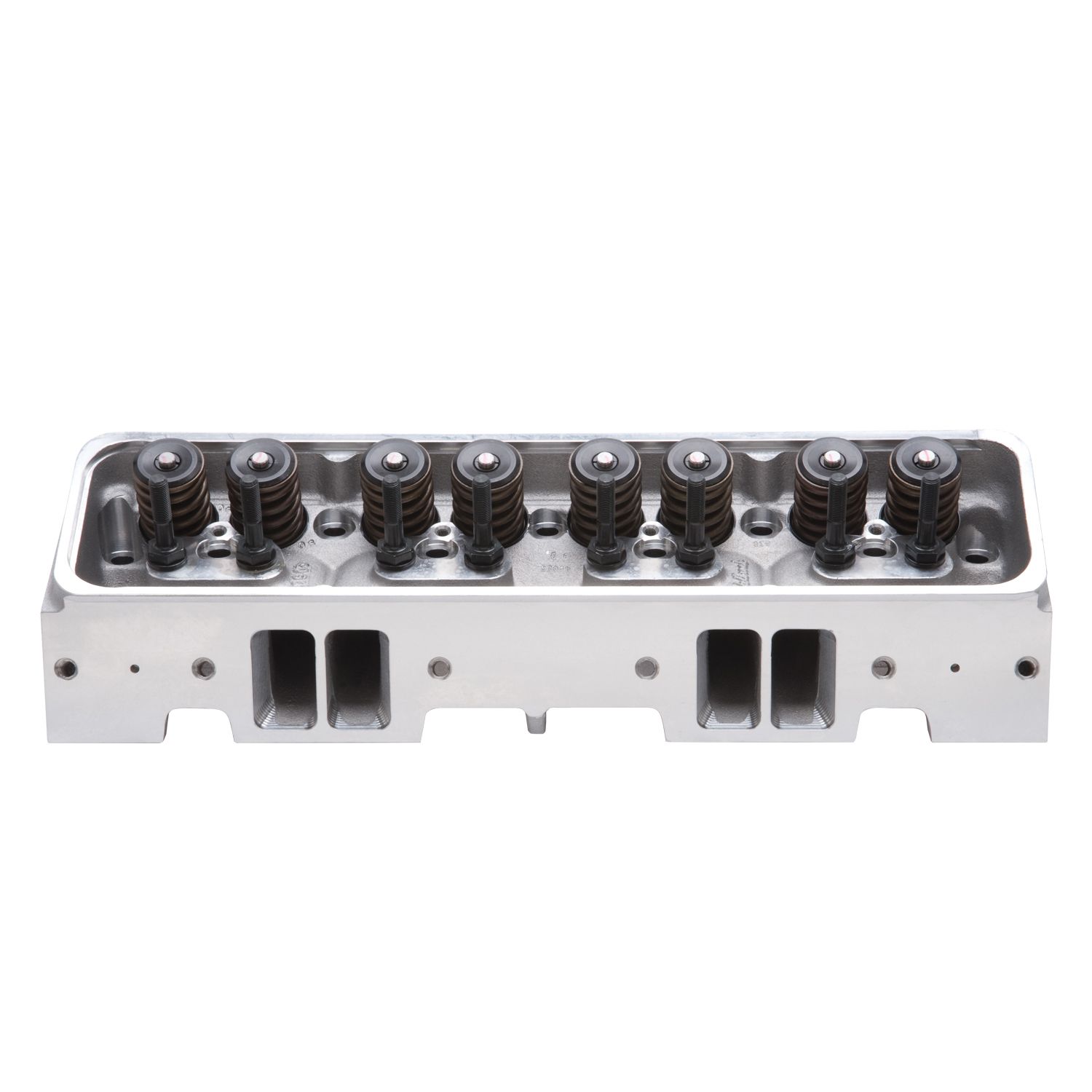

Edelbrock part #61905 Performer small-block Chevy LT1 (1992-97) Performer complete cylinder head delivers 24 horsepower over stock and raise the peak power level by 500 rpm. This head is designed to accept factory style self-aligning rockers. This Performer LT1 cylinder head is 50-state street legal and accept factory center bolt valve covers. It features exhaust ports in the stock location for use with stock or aftermarket exhaust manifolds and headers. Match with RPM Air-Gap intake #7107, throttle body #3809 and camshaft #2108 for the Total Power Package combo. Cylinder Head Specifications: – Exhaust port location: Stock – Spark plug fitment: 14mm x 3/4 reach, gasket seat

Additional Attributes:

GTIN: 00085347619054
9040: D-215-70
Camshaft Type: Hydraulic Roller
CNC Ported: No
Combustion Chamber Volume: 54
Construction Type: Complete
Deck Thickness: 0.625
EGR Port: No
Exhaust Port Location: Standard
Exhaust Runner Volume: 60
Exhaust Valve Diameter: 1.55
Family: Performer
Grade Type: Performance
Guide Material: Manganese Bronze
Guide Plates Included: No
Head Casting Number: N/A
Horsepower: 300-450
Intake Runner Volume: 170
Intake Valve Diameter: 1.94
Material: Aluminum
Push Rod Diameter: (Suggested) 0.375
Quantity: Sold Individually
Retainer Included: Yes
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Rocker Arm Stud Diameter: 0.4375
Seat Angle: Exhaust 45 deg/Intake 45
Seat Material: Ductile Iron
Series: Performer
Valve Angle: 23
Valve Included: Yes
Valve Spring Diameter: 1.46
Valve Spring Maximum Lift: 0.600
Valve Springs Included: Yes
Valve Stem Diameter: 0.3125

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 22.1875 x 10.125 x 7.1875 inches
Weight: 31.65 PG
