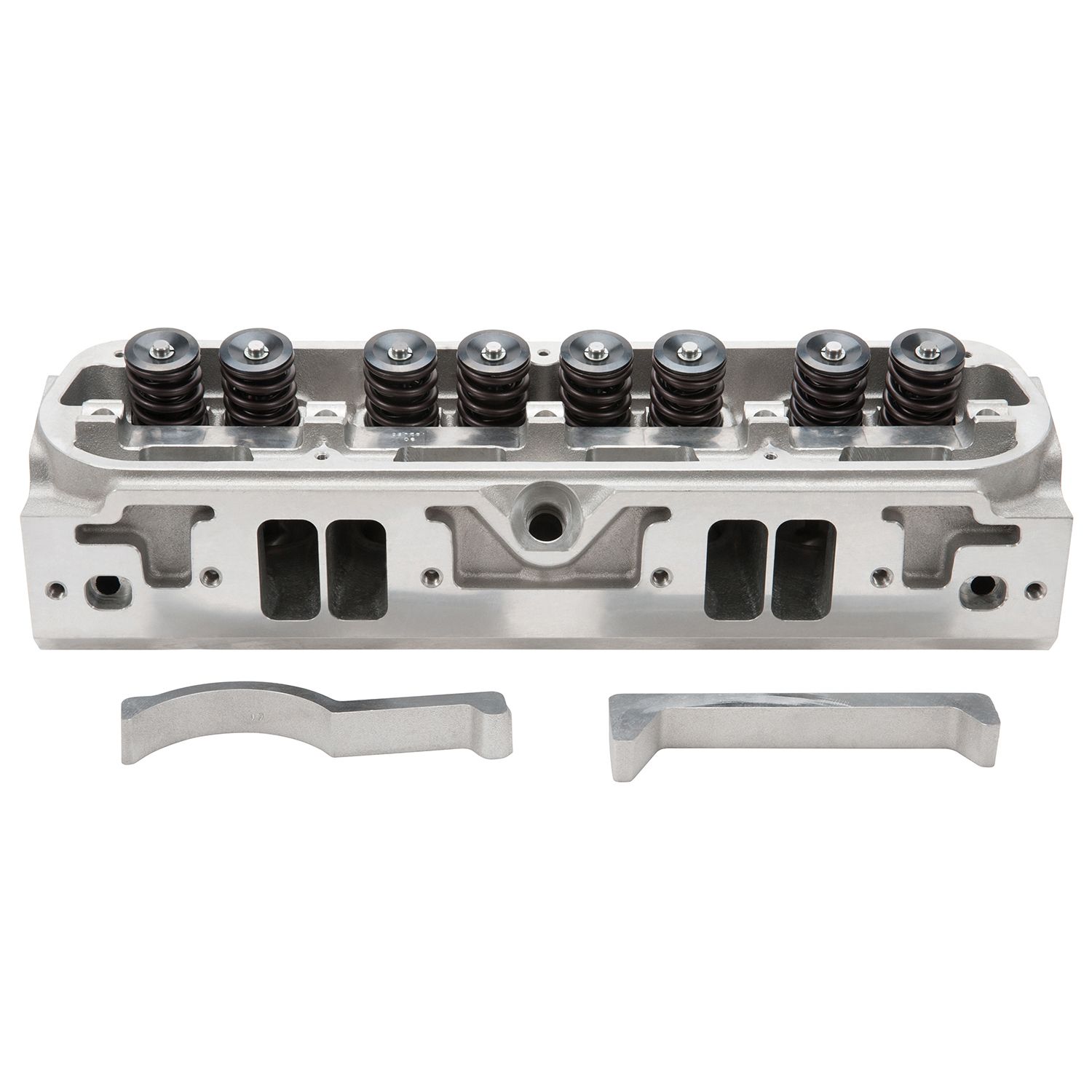

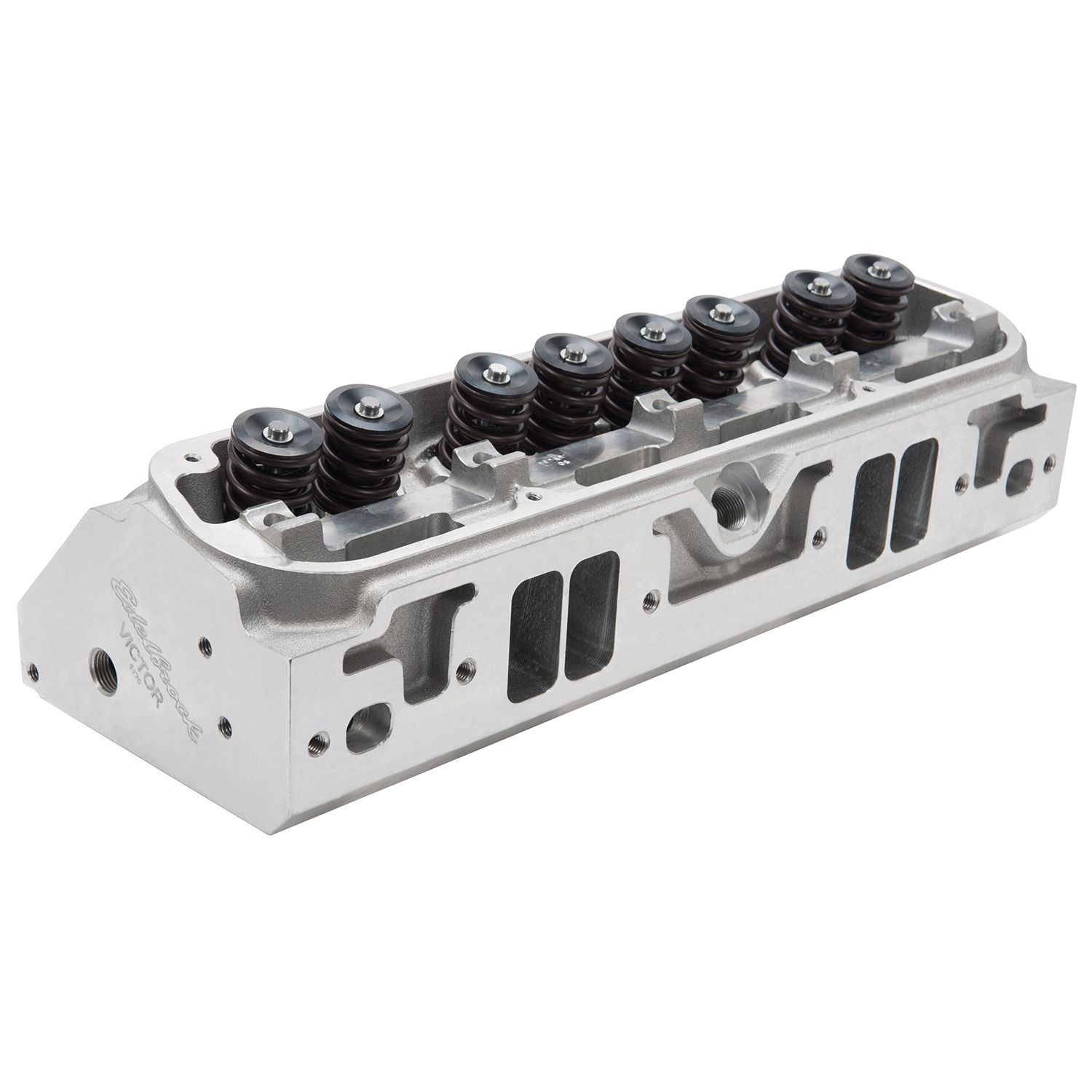

Engine Cylinder Head

bare, bare with valves, complete (for hydraulic/flat tappet cams and solid roller cams) and Pro Port Raw. End-seal spacers are provided.

Additional Attributes:

GTIN: 00085347617296
Camshaft Type: Solid Roller
CNC Ported: No
Combustion Chamber Volume: 60
Construction Type: Complete
Deck Thickness: 0.625
EGR Port: No
Exhaust Port Location: +.500
Exhaust Runner Volume: 62
Exhaust Valve Diameter: 1.60
Family: Victor
Grade Type: Performance
Guide Material: Manganese Bronze
Guide Plate Material: Hardened Steel
Guide Plates Included: No
Head Casting Number: N/A
Horsepower: 500-650
Intake Runner Volume: 225
Intake Valve Diameter: 2.15
Material: Aluminum
Quantity: Sold Individually
Retainer Included: Yes
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Seat Angle: Exhaust 45 deg/Intake 45
Seat Material: Ductile Iron
Series: Victor
Valve Angle: 16
Valve Included: Yes
Valve Spring Diameter: 1.55
Valve Spring Maximum Lift: 0.670
Valve Springs Included: Yes
Valve Stem Diameter: 0.3438

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 22.1875 x 10.125 x 7.1875 inches
Weight: 50 PG
