Engine Cylinder Head

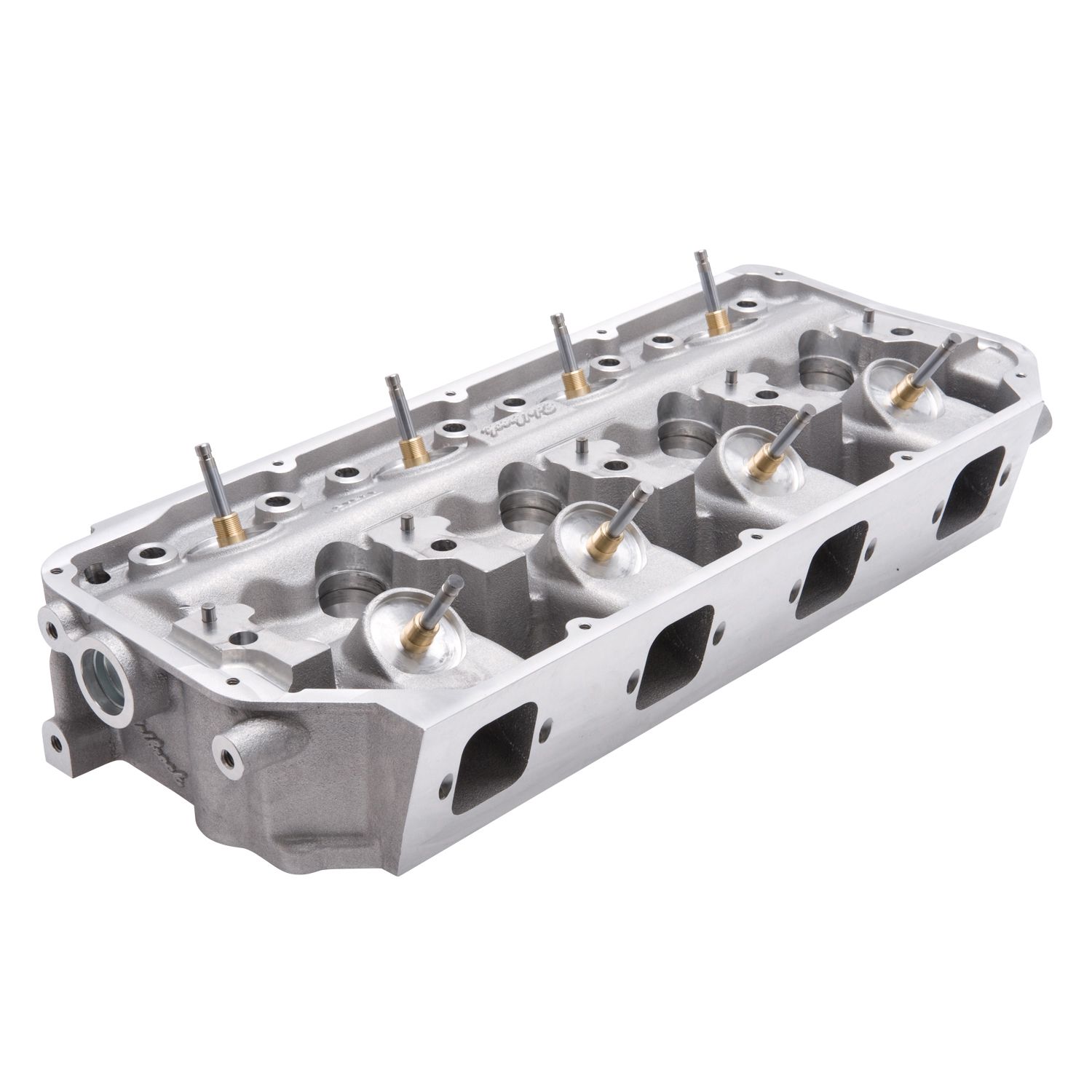

Our new Edelbrock #61189 Victor Jr. cylinder head is designed for high output 650+ hp Chrysler 426-572 HEMI engines. They feature fully CNC'd combustion chambers and CNC blended seats for optimal air flow performance. This cylinder head also feature a revised exhaust valve angle to accommodate larger intake valves. They also feature brass tubes installed in exhaust pushrod holes to allow maximum clearance with minimal port intrusion.

Additional Attributes:

GTIN: 00085347611898
CNC Ported: Yes
Combustion Chamber Volume: 170
Construction Type: Bare With Valves
Deck Thickness: 0.625
EGR Port: No
Exhaust Port Location: Standard
Exhaust Runner Volume: 105
Exhaust Valve Diameter: 1.94
Family: Victor Jr.
Grade Type: Performance
Guide Material: Manganese Bronze
Guide Plates Included: No
Head Casting Number: N/A
Intake Runner Volume: 245
Intake Valve Diameter: 2.320
Material: Aluminum
Quantity: Sold Individually
Retainer Included: No
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Seat Angle: Exhaust 45 deg/Intake 45
Seat Material: Ductile Iron
Series: Victor Jr.
Valve Angle: Exhaust (Tipped) 1.5-21.5 deg/Intake Stock
Valve Included: Yes
Valve Springs Included: No
Valve Stem Diameter: 0.3125

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 25.875 x 10.75 x 8.5 inches
Weight: 32.35 PG
