Engine Cylinder Head

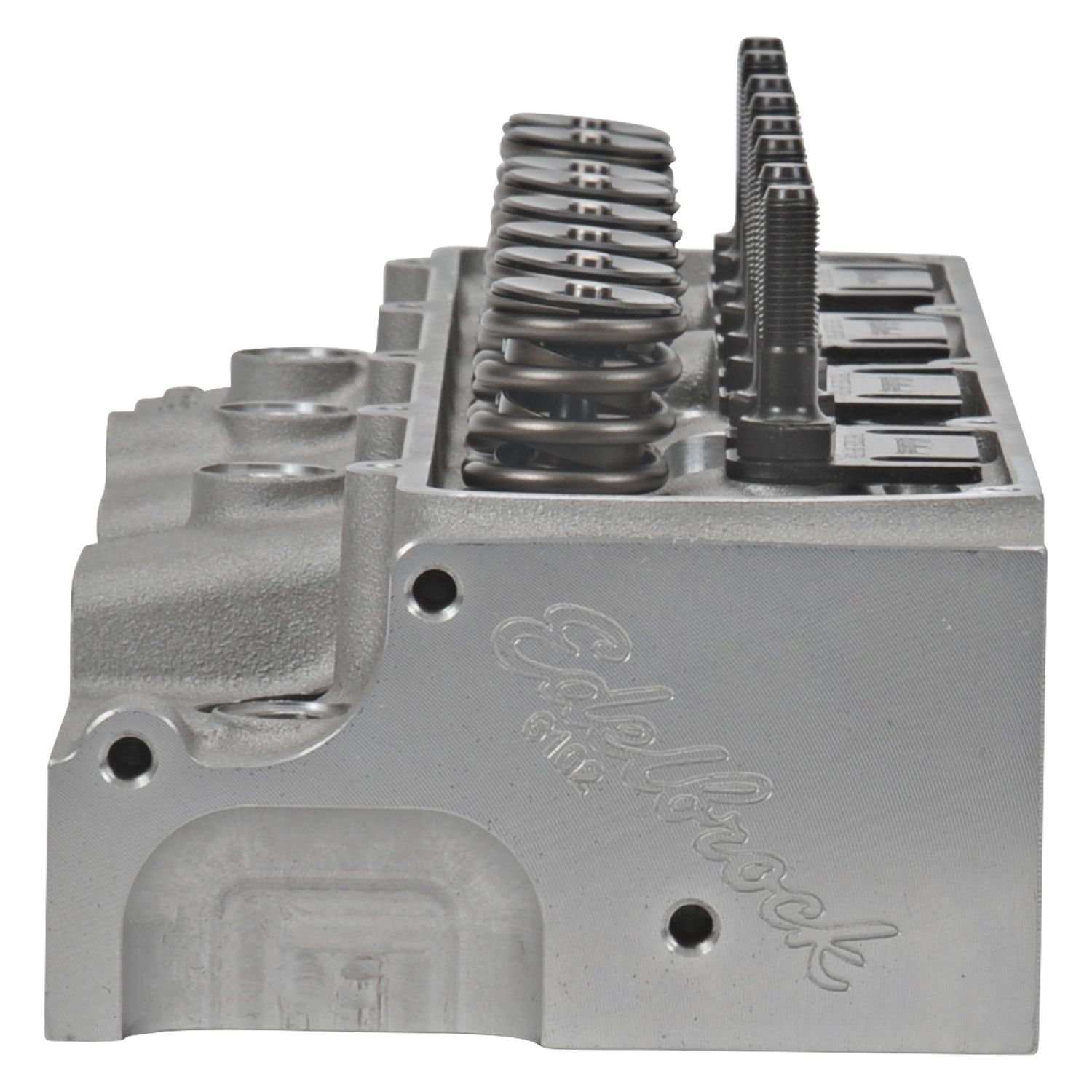

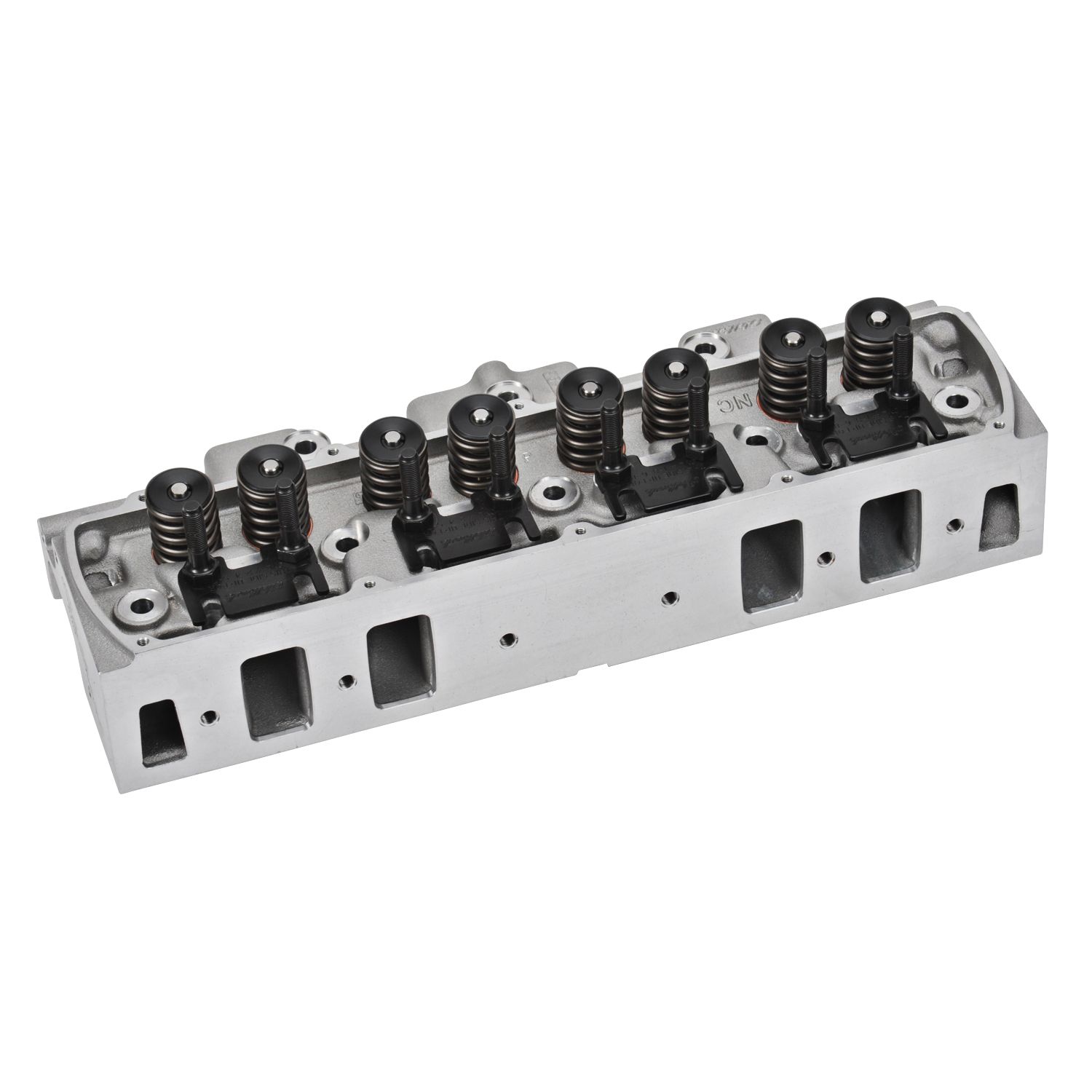

The Edelbrock #61029 Performer RPM Cylinder Head for 1965-76 Oldsmobile 400, 425 and 455 CID V8 engines with hydraulic flat tappet cam is a perfect performance upgrade for big-block Olds-powered street machines and muscle cars. This aluminum cylinder head supersedes the 60519 Olds head and features a redesigned 77cc combustion chamber, larger intake valves and refined bowl blending for improved flow. The #61029 Performer RPM head has improved accommodation for a factory-style mechanical fuel pump with spark plug locations moved slightly towards the exhaust valve for optimized combustion. Intake and exhaust ports have been improved over previous designs, and extra material has been added above the intake port for head work. Performer RPM #61029 heads are cast and machined by Edelbrock in the USA and comes complete with the highest quality intake and exhaust valves and valve springs.

Additional Attributes:

GTIN: 00085347610297
Camshaft Type: Flat Tappet
CNC Ported: No
Combustion Chamber Volume: 77
Construction Type: Complete
Deck Thickness: 0.625
EGR Port: No
Exhaust Port Location: Standard
Exhaust Runner Volume: 128
Exhaust Valve Diameter: 1.680
Family: Performer RPM
Grade Type: Performance
Guide Material: Manganese Bronze
Guide Plate Material: Hardened Steel
Guide Plates Included: Yes
Head Casting Number: N/A
Horsepower: 450-600
Intake Runner Volume: 218
Intake Valve Diameter: 2.150
Material: Aluminum
Push Rod Diameter: (Suggested) 0.375
Quantity: Sold Individually
Retainer Included: Yes
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Rocker Arm Stud Diameter: 0.4375
Seat Angle: Exhaust 60 deg/Intake 60
Seat Material: Ductile Iron
Series: Performer RPM
Valve Angle: 6
Valve Included: Yes
Valve Spring Diameter: 1.105
Valve Spring Maximum Lift: 0.600
Valve Springs Included: Yes
Valve Stem Diameter: 0.3438

Extended Information:

Emissions : EPA Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 25.9 x 11.1 x 8.9 inches
Weight: 35.75 PG
