Engine Cylinder Head

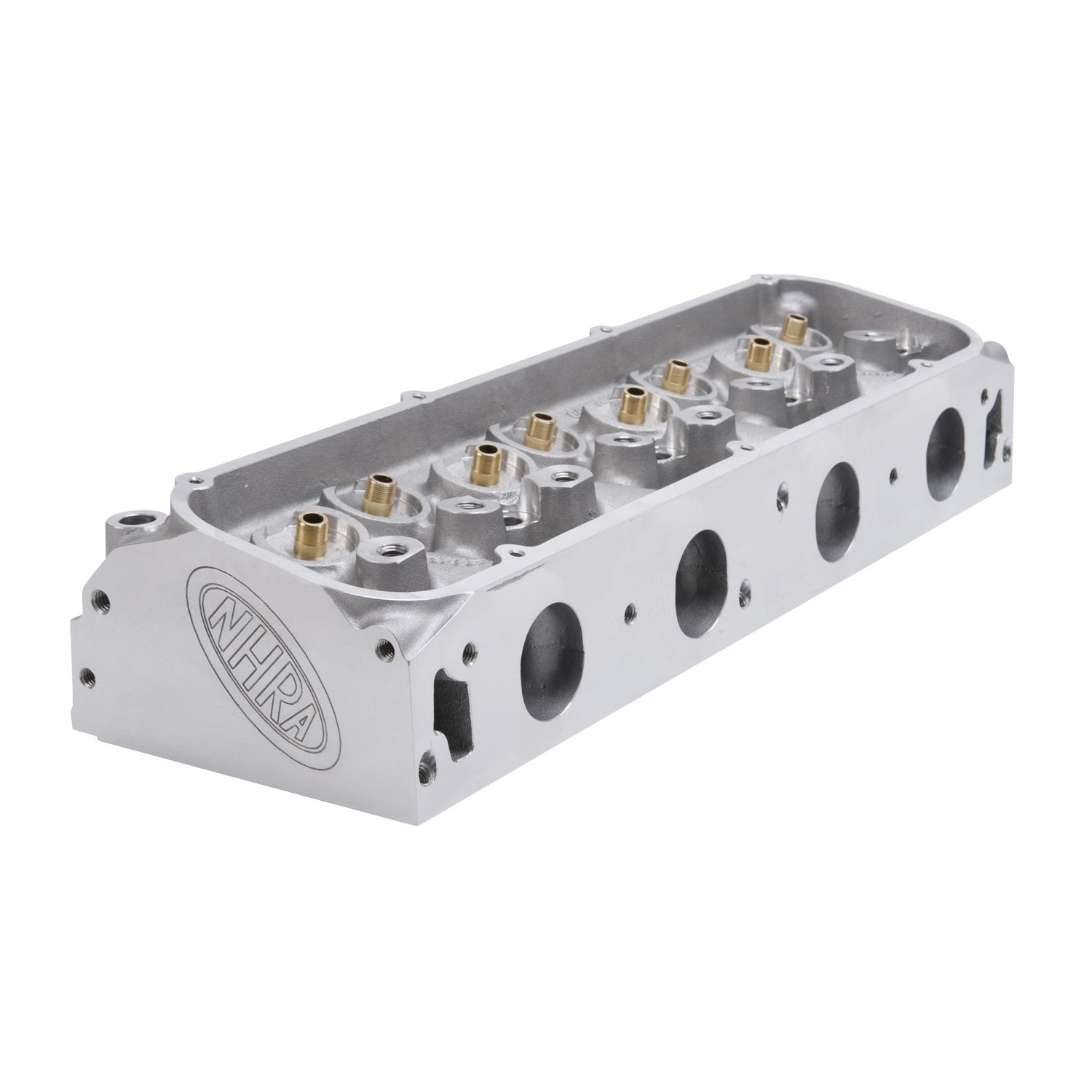

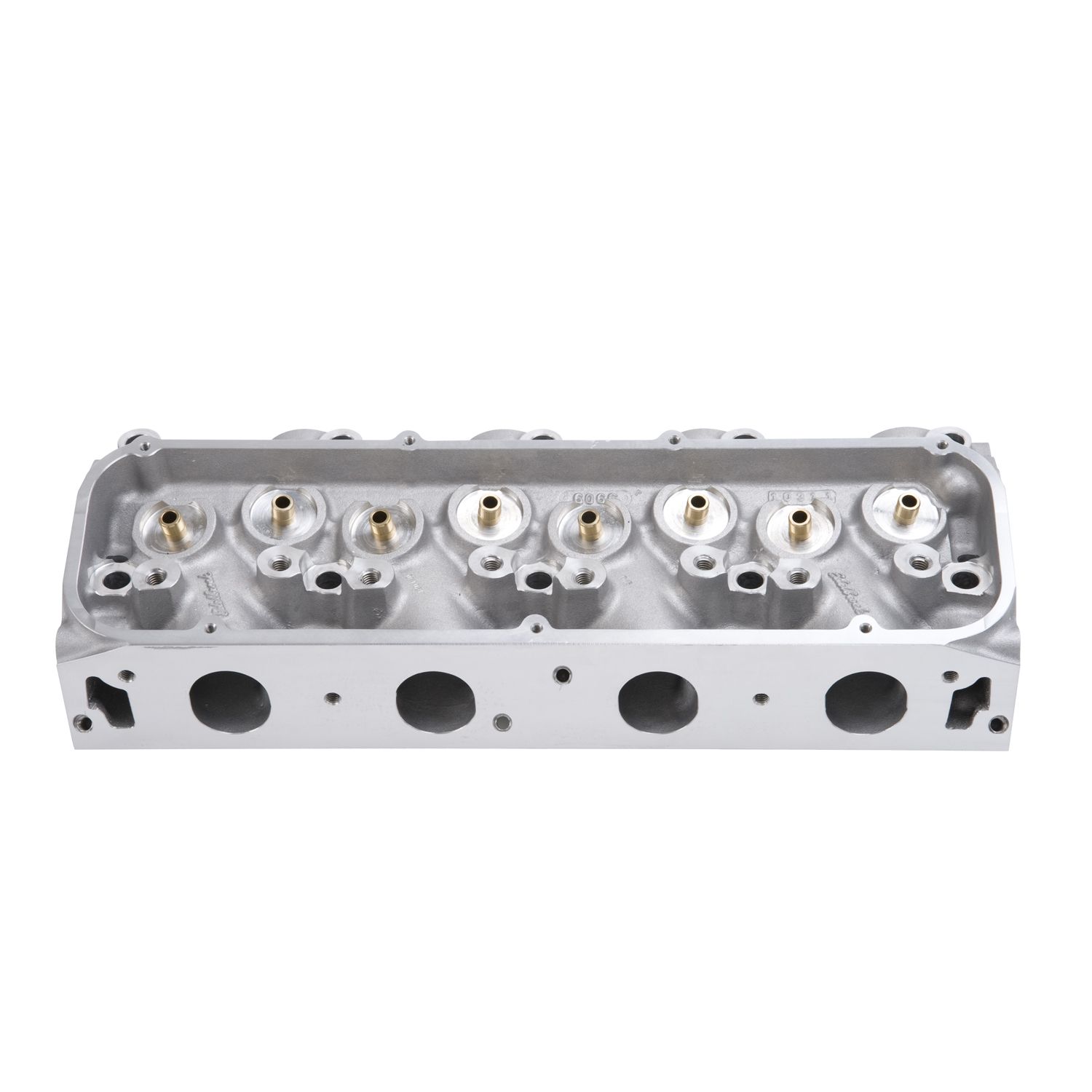

The Edelbrock #60687 Performer RPM NHRA Super Stock Bare cylinder head is designed for 1968-87 429/460 Big-Block Ford applications. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. Cast and heat treated at the Edelbrock Foundry and machined at Edelbrock's manufacturing facility in the USA, the Edelbrock head is the best in quality and performance. All Edelbrock cylinder head is designed from scratch using the latest in computer technology by our own highly skilled engineer's. Using highly efficient ports and state-of-the-art combustion chamber shapes, Edelbrock cylinder head offers improved performance throughout the rpm range for great throttle response and top-end horsepower. Top-quality features include threaded inserts in rocker stud and exhaust bolt holes for superior strength and durability, and manganese-bronze valve guides with ductile iron valve seats. These are features that some other companies don't include!

Additional Attributes:

GTIN: 00085347606870
CNC Ported: No
Combustion Chamber Volume: 95
Construction Type: Bare
Deck Thickness: 0.625
EGR Port: No
Exhaust Port Location: Standard
Exhaust Runner Volume: 100
Family: Performer RPM
Grade Type: Performance
Guide Material: Manganese Bronze
Guide Plate Material: Hardened Steel
Guide Plates Included: No
Head Casting Number: N/A
Intake Runner Volume: 292
Material: Aluminum
Quantity: Sold Individually
Retainer Included: No
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Seat Angle: Exhaust 45 deg/Intake 45
Seat Material: Ductile Iron
Series: Performer RPM
Valve Included: No
Valve Springs Included: No

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Obsolete

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 26 x 11 x 8.5 inches
Weight: 31.85 PG
