Engine Cylinder Head

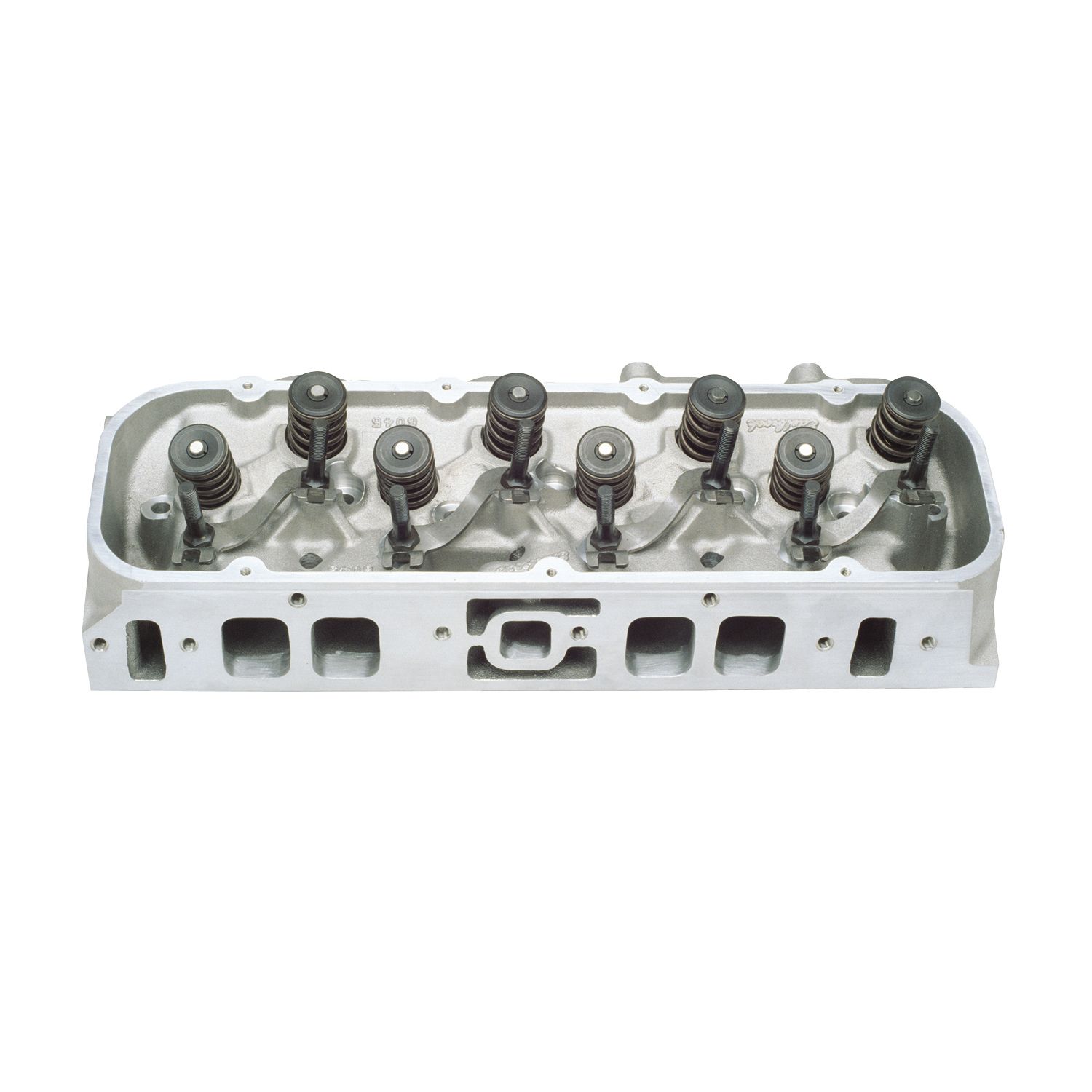

The Edelbrock #60479 Performer cylinder head is designed for Big-Block Chevy Oval Port V8 applications. These Edelbrock Performer Series cylinder head is 50-state street legal and provide outstanding performance from Idle-5,500 RPM's. The Edelbrock Performer head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. They also feature the highest quality intake and exhaust valves and valve springs.

Additional Attributes:

GTIN: 00085347604791
9040: D-215-94
Camshaft Type: Flat Tappet
CNC Ported: No
Combustion Chamber Volume: 110
Construction Type: Complete
Deck Thickness: 0.5625
EGR Port: No
Exhaust Port Location: Standard
Exhaust Runner Volume: 110
Exhaust Valve Diameter: 1.88
Family: Performer
Grade Type: Performance
Guide Material: Manganese Bronze
Guide Plate Material: Hardened Steel
Guide Plates Included: Yes
Head Casting Number: N/A
Horsepower: 450-550
Intake Runner Volume: 290
Intake Valve Diameter: 2.19
Material: Aluminum
Push Rod Diameter: (Suggested) 0.4375
Quantity: Sold Individually
Retainer Included: Yes
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Rocker Arm Stud Diameter: 0.4375
Seat Angle: Exhaust 45 deg/Intake 45
Seat Material: Ductile Iron
Series: Performer
Valve Angle: 26
Valve Included: Yes
Valve Spring Diameter: 1.50
Valve Spring Maximum Lift: 0.700
Valve Springs Included: Yes
Valve Stem Diameter: 0.3438

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Obsolete

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 26 x 11.3 x 9 inches
Weight: 43.8 PG
