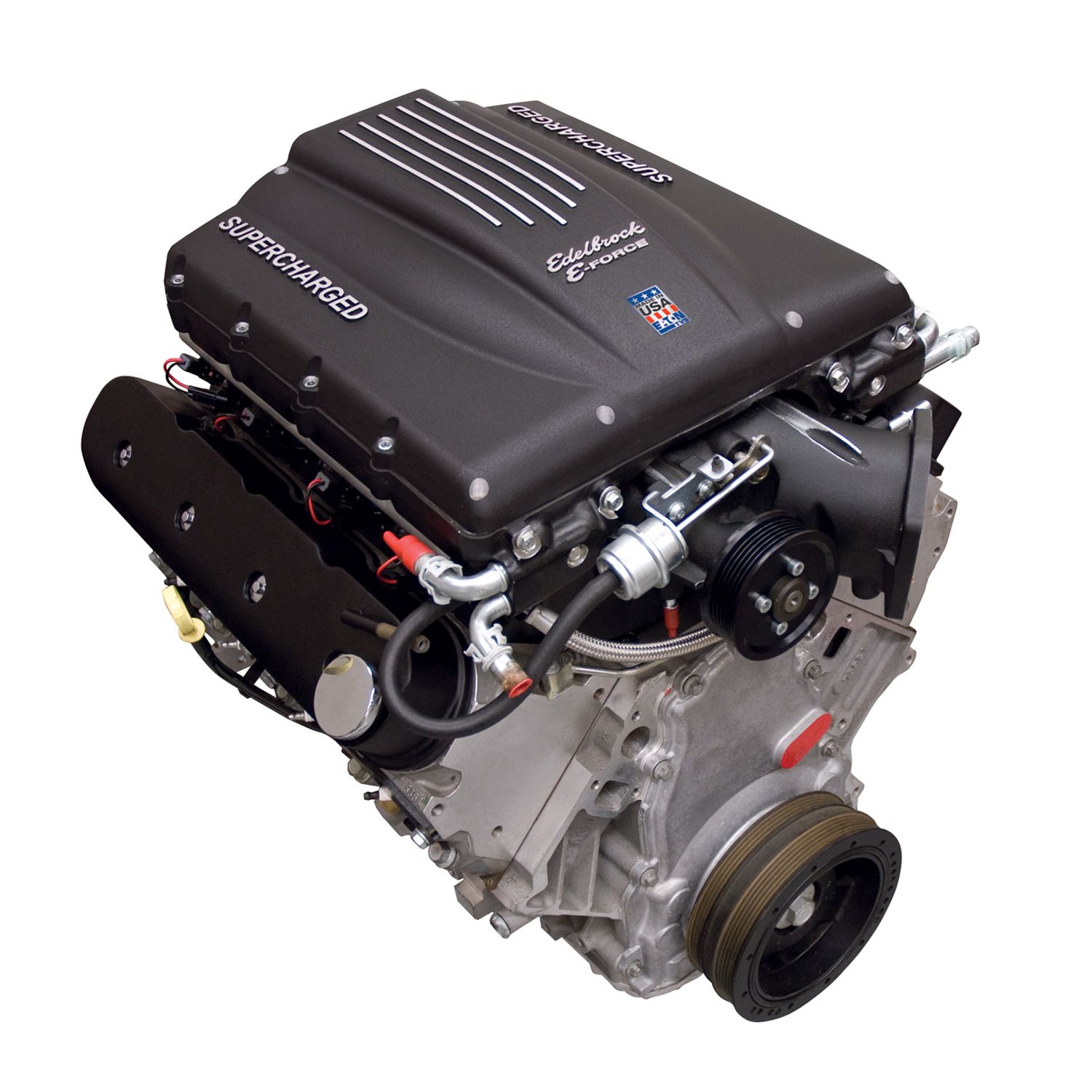

Engine Complete Assembly

Block: LS3 Aluminum

Additional Attributes:

GTIN: 00085347467600
Air Cleaner Type: Conical
Alternator Included: Yes
Calibration: Yes
Camshaft Type: 215deg/247deg, .629/.656, 121 LSA
Carburetor Choke Type: N/A
Carburetor Type: Not Included
Compression Ratio: 9.5:1
Construction Type: Assembled
Crankshaft Material: Forged Steel
Cylinder Head Material: Aluminum
Cylinder Head Type: GM LSA With Edelbrock Valve Springs #5768
Displacement: 416
Distributor Included: No
ECU Included: Yes
Engine Block Material: Cast Iron
Flywheel Included: No
Fuel Injectors Included: Yes
Grade Type: Performance
Hardware Included: Yes
Harmonic Balancer Included: Yes
Horsepower: 720
Idler Pulley Included: Yes
Induction Type: Supercharged
Intake Manifold Type: EFI
Main Bearing Cap Bolt Quantity: 4-Bolt
Manifold Material: Aluminum
Oil Filter Included: Yes
Oil Pan Included: Yes
Outside Pulley Diameter: Stock
Piston Type: Forged Aluminum
Plug Wire and Boot Included: Yes
Power Steering Pump Included: Yes
Pulley Belt Width: Stock
Quantity: Sold Individually
Rear Main Seal Type: 1-Piece
RGL: WARNING: This product can expose you to Chromium, Lead, and Zinc which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Rocker Arm Ratio: 1.7:1
Rocker Arm Type: LS3
Rotor Type: Eaton TVS 2300, Black Powder Coated
Spark Plugs Included: No
Throttle Body Included: Yes
Timing Cover Included: Yes
Torque: 695
Type: GM LS3 Gen V
Universal Or Specific Fit: Specific Fit
Valve Cover Included: Yes
Valve Cover Material: Cast Aluminum
Valve Cover Type: OEM, Black Powder Coated
Water Pump Included: Yes, Standard
Wire Harness Included: Yes

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 36.5 x 38.5 x 35.75 inches
Weight: 492 PG
