Engine Complete Assembly

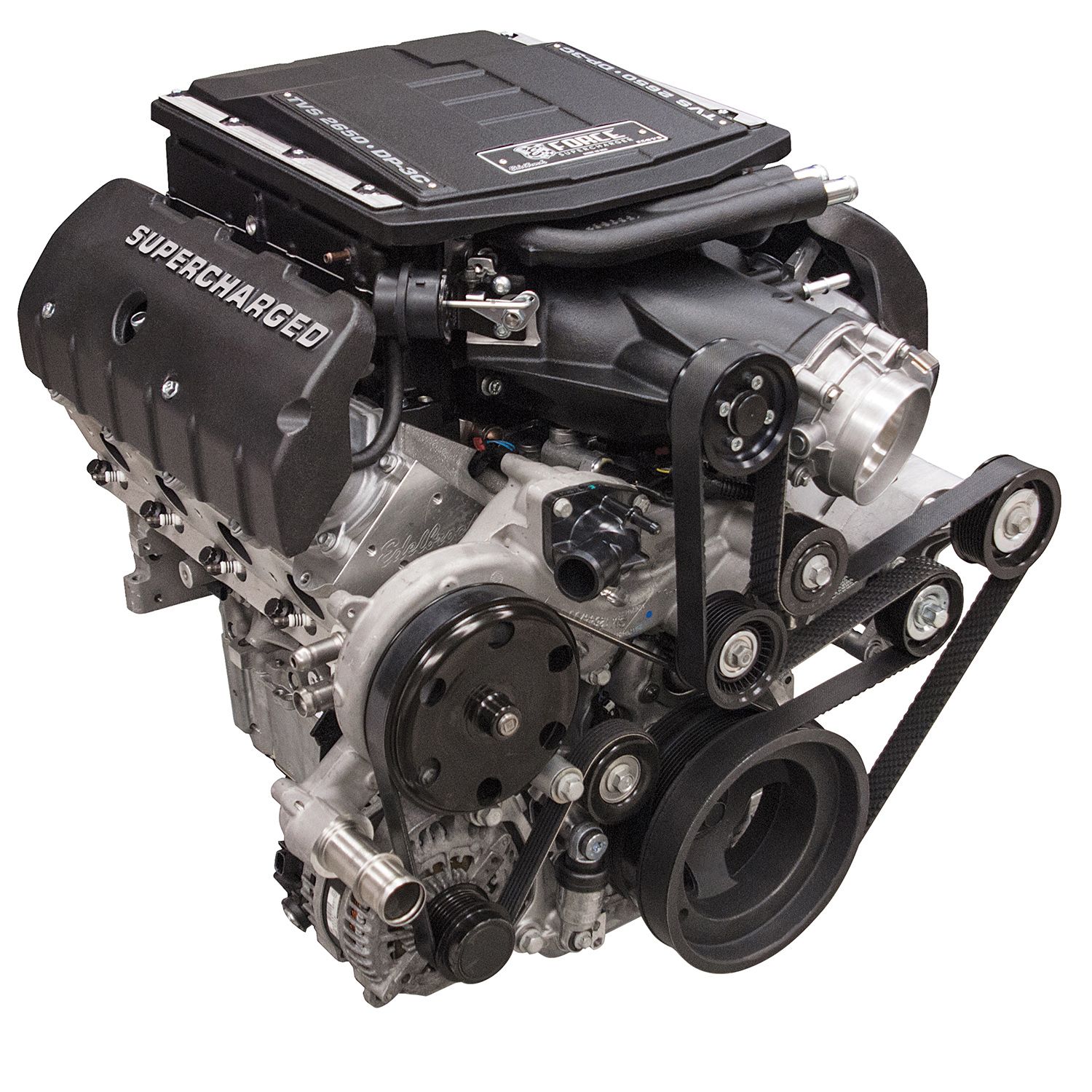

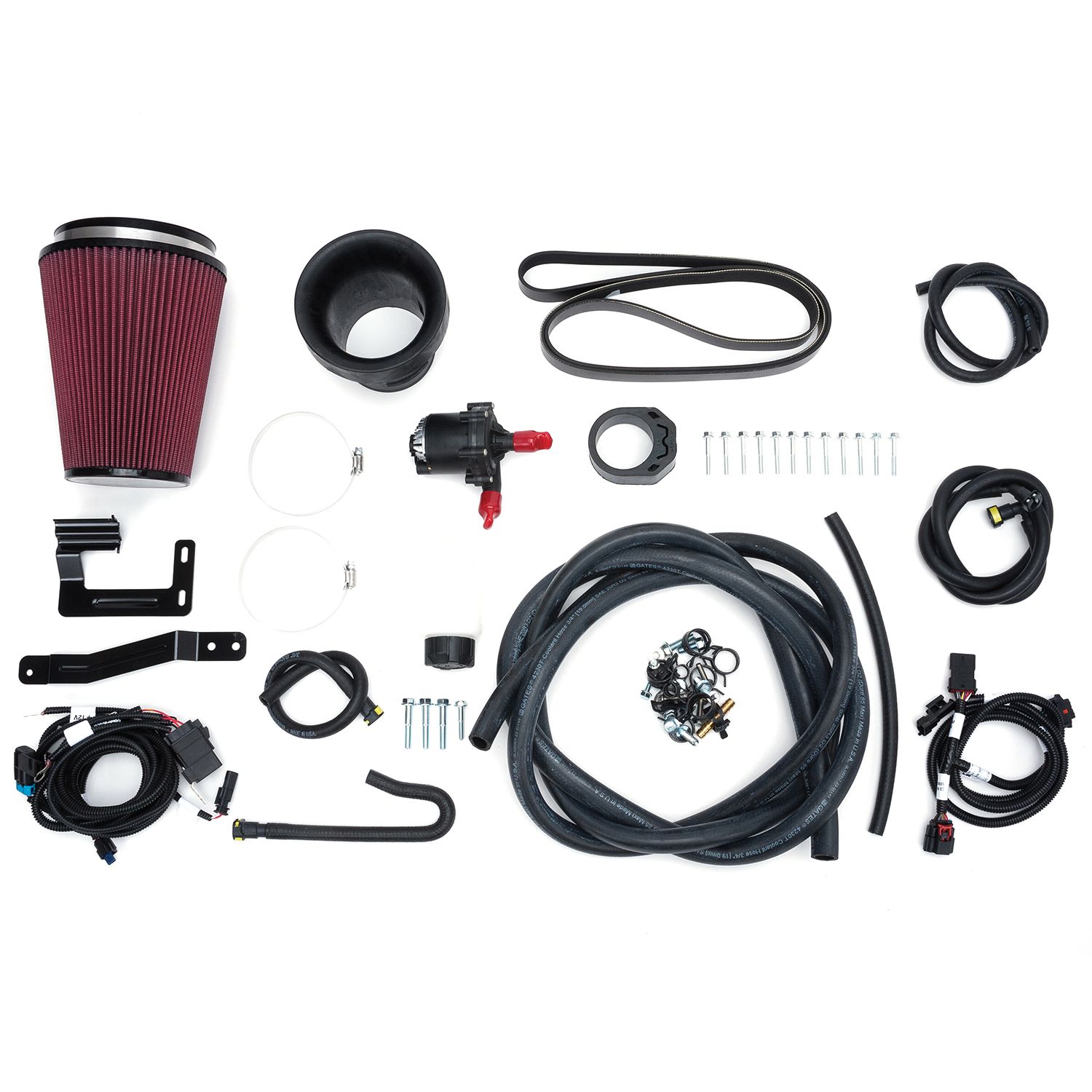

Edelbrock Supercharged LT1 crate engine. part #46757 produces an astounding 851 horsepower and 780 ft-lbs. of torque on 91 octane pump gas. The foundation of this engine is a brand new GM LT1 Gen V aluminum block with a forged and balanced Manley crankshaft, forged Manley H-Beam connecting rods and Manley forged aluminum pistons. Sitting on top is an Edelbrock supercharger system with a DP-3C intercooler and Eaton TVS R2650 rotors. This engine package comes complete with essential supercharger kit components, such as the electric intercooler water pump, intercooler plumbing, intercooler recovery tank, fuel rails, fuel injectors, mass air flow sensor (MAFS) housing and re-usable air filter. The supercharger equipped on this engine features a driver's side throttle body orientation for ease of intake routing and Camaro ZL1/ CTS-V LT4 belt offset for a compact installation. Pair with universal heat exchangers for a complete installation. Engine block is a GM LT1 Gen V with a Manley Forged 4340 crankshaft.

Additional Attributes:

GTIN: 00085347467570
Air Cleaner Type: Conical
Alternator Included: No
Calibration: Yes
Camshaft Type: 243deg/254deg, .660/.651, 114 LSA
Carburetor Choke Type: N/A
Carburetor Type: Not Included
Compression Ratio: 10.6:1
Construction Type: Assembled
Crankshaft Material: Forged Steel
Cylinder Head Material: Aluminum
Cylinder Head Type: Performer RPM
Displacement: 416
Distributor Included: No
ECU Included: No
Engine Block Material: Cast Iron
Flywheel Included: No
Grade Type: Performance
Hardware Included: Yes
Harmonic Balancer Included: Yes
Horsepower: 851
Idler Pulley Included: Yes
Ignition Coil Included: No
Induction Type: Supercharged
Intake Manifold Type: EFI
Main Bearing Cap Bolt Quantity: 4-Bolt
Manifold Material: N/A
Oil Filter Included: Yes
Oil Pan Included: Yes
Outside Pulley Diameter: 3.25
Piston Type: Forged Aluminum
Plug Wire and Boot Included: Yes
Pulley Belt Width: 8-Rib
Quantity: Sold Individually
Rear Main Seal Type: 1-Piece
RGL: WARNING: This product can expose you to Chromium, Lead, and Zinc which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Rocker Arm Ratio: GM OEM
Rocker Arm Type: LT1
Rotor Type: Eaton TVS 2650, Black Powder Coated
Spark Plugs Included: No
Throttle Body Included: Yes
Timing Cover Included: Yes
Torque: 779
Type: GM LT1 Gen V
Universal Or Specific Fit: Specific Fit
Valve Cover Included: Yes
Valve Cover Material: Cast Aluminum
Valve Cover Type: OEM, Black Powder Coated
Water Pump Included: Yes, Standard
Wire Harness Included: Yes

Extended Information:

Emissions : EPA Eligible
Life Cycle Status: Temporarily Unavailable

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 48 x 41 x 45 inches
Weight: 674 PG
