Engine Complete Assembly

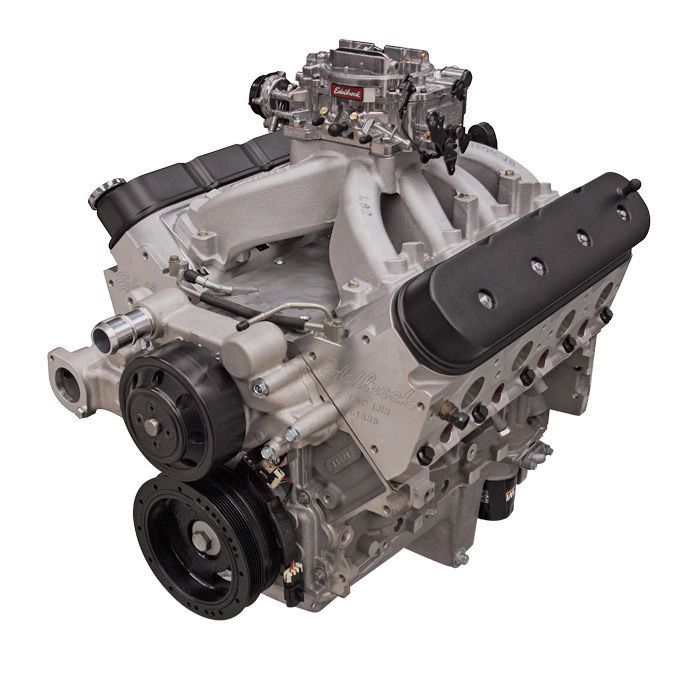

If you're looking for an LS powerplant for your vehicle, then look no further than the part #46726 Edelbrock Victor Jr. LS 416 crate engine. This engine delivers an impressive 602 horsepower and 538 ft-lbs. of torque on 91 octane pump gas. It features a GM aluminum LS3 block with a forged and balanced Manley crankshaft, forged Manley H-Beam connecting rods and Manley forged aluminum pistons to create a 416 c.i.d. LS3 stroker with 4.065" bore and 4.000" stroke. All of these high quality components make for a great foundation for any high performance LS build. The Victor Jr. LS 416 is topped off with a complete Edelbrock LS3 Top End that is designed to maximize performance. This Power Package combo includes Victor Jr. LS3 cylinder heads #61339, Victor Jr. LS3 Intake Manifold #28456 and Rollin' Thunder hydraulic roller camshaft #2219. Its compact profile makes this engine a great solution for a hassle-free swap into any muscle car, street rod or truck! The Edelbrock Victor Jr. LS 416 crate engine is the ultimate carbureted powerplant for your high performance build. Engine Specifications – Finish: Black powder coated – Displacement: 416 c.i.d. – Horsepower: 602 hp – Torque: 538 ft-lbs. – Compression: 11.2:1 – Block: NEW GM LS3 Aluminum – Crankshaft: Manley Forged 4340 – Pistons: Manley Forged Aluminum – Rods: Manley Forged H-Beam – Camshafts: Edelbrock Rollin' Thunder #2219 – Rocker Arms: LS3, 1.7 ratio – Manifold: Edelbrock Victor Jr. #28456 – Cylinder Heads: GM with Edelbrock Victor Jr. #61339 – Carburetor: 800 cfm Thunder AVS. #1813 – Water Pump: Victor #8894 with Pulley #8899 – Warranty: 2-year / Unlimited mileage

Additional Attributes:

GTIN: 00085347467266
Air Cleaner Type: Not Included
Alternator Included: No
Camshaft Type: Rollin’ Thunder, Hydraulic Roller
Carburetor Choke Type: Electric
Carburetor Type: AVS2 800 CFM, Satin
Compression Ratio: 9.0:1
Construction Type: Assembled
Crankshaft Material: Forged Steel
Cylinder Head Material: Aluminum
Cylinder Head Type: Victor Jr.
Displacement: 416
Distributor Included: No
Engine Block Material: Cast Iron
Flywheel Included: No
Grade Type: Performance
Hardware Included: Yes
Harmonic Balancer Included: Yes
Horsepower: 602
Ignition Coil Included: No
Induction Type: Carbureted
Intake Manifold Type: Victor Jr., Dual 4150, Satin
Main Bearing Cap Bolt Quantity: 4-Bolt
Manifold Material: Aluminum
Oil Filter Included: Yes
Oil Pan Included: Yes
Piston Type: Cast Aluminum
Plug Wire and Boot Included: No
Quantity: Sold Individually
Rear Main Seal Type: 1-Piece
RGL: WARNING: This product can expose you to Chromium, Lead, and Zinc which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Rocker Arm Ratio: 1.7:1
Rocker Arm Type: LS3
Spark Plugs Included: No
Throttle Body Included: No
Timing Cover Included: Yes
Torque: 538
Type: GM LS3 Gen V
Universal Or Specific Fit: Specific Fit
Valve Cover Included: Yes
Valve Cover Material: Cast Aluminum
Valve Cover Type: OEM, Black Powder Coated
Water Pump Included: Yes, Standard
Wire Harness Included: Yes

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 36.5 x 36 x 44.5 inches
Weight: 445 PG
