Engine Complete Assembly

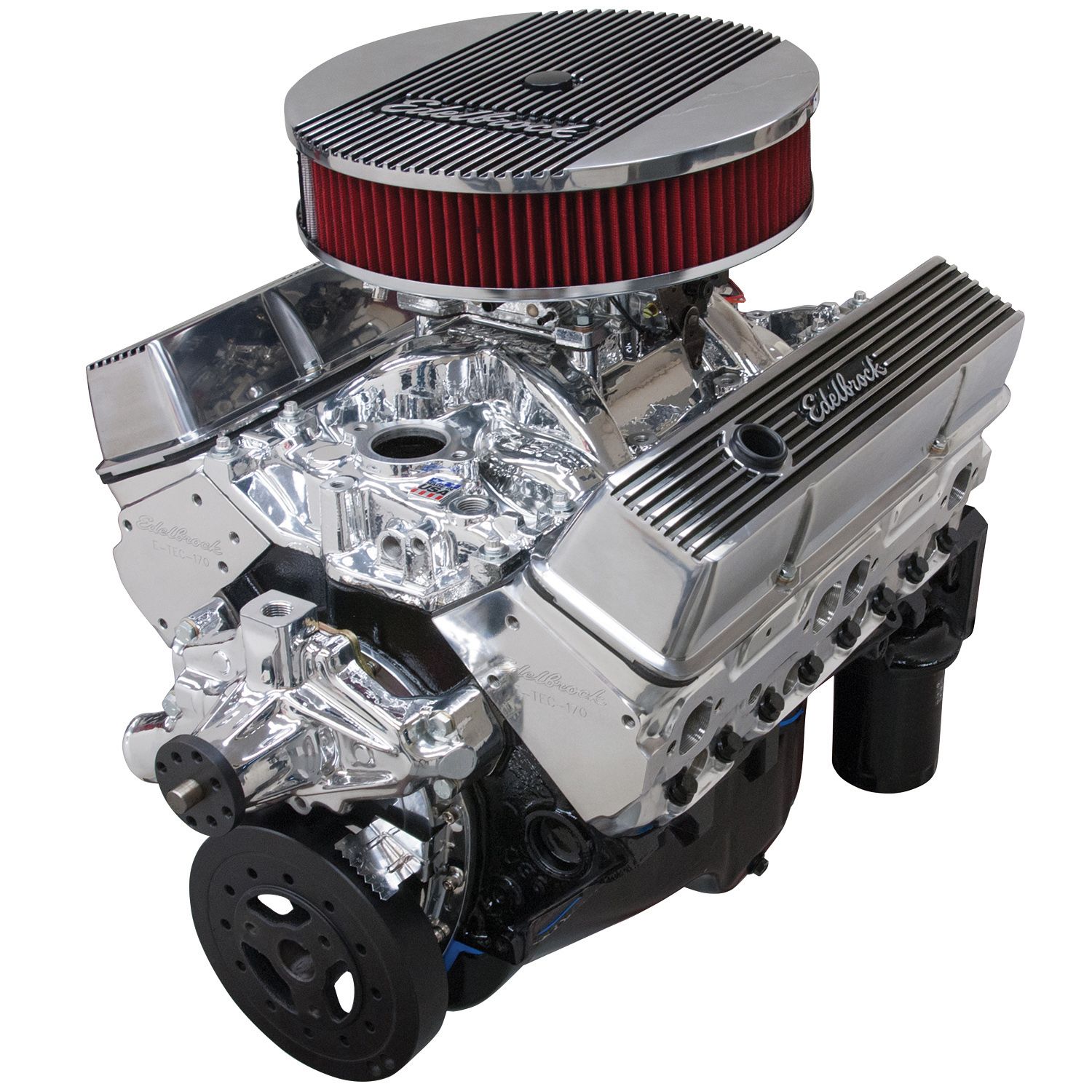

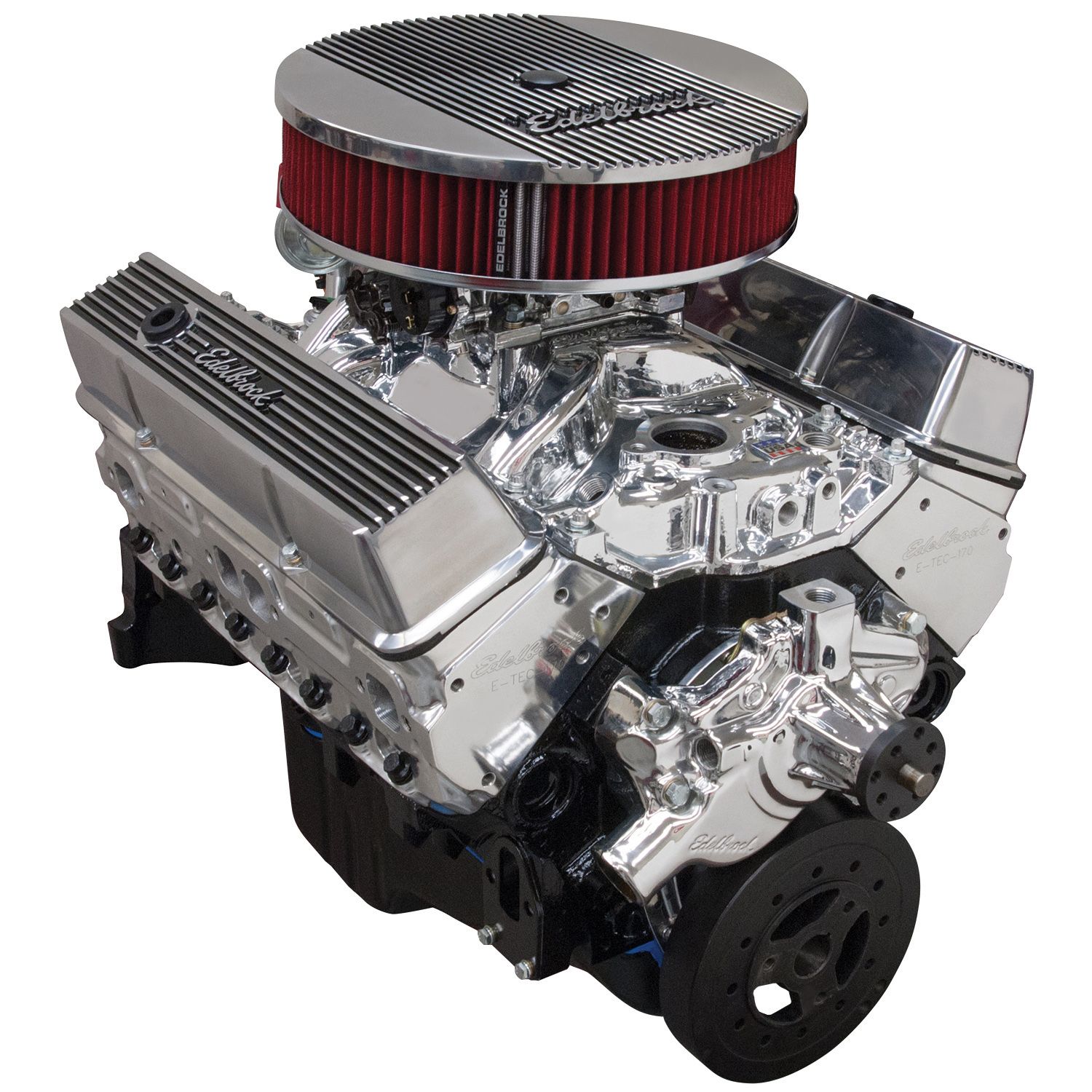

Edelbrock part #46414 Performer Hi-Torq small-block Chevy 350 crate engine offers the best of quality and performance right out of the crate. Take advantage of modern cylinder head and camshaft technology with 363 HP & 405 ft/lbs. of torque. This engine delivers high hp and a broad torque curve from off-idle through 5,500 RPM, thanks to the Performer-Plus Rollin' Thunder hydraulic roller camshaft. In addition to the performance, this combination provides exceptional vacuum at idle so you can easily operate power brakes and vacuum powered accessories. The Performer Hi-Torq crate engine is 100% brand new and include a 4-bolt main short block, Edelbrock E-Tec 170 heads, Rollin' Thunder hydraulic roller camshaft, roller rocker arms, EPS Vortec intake manifold with a EPS 750 cfm carb and short water pump. Engine Specifications: – Finish: EnduraShine – Displacement: 350 c.i.d. – Horsepower: 363 hp – Torque: 405 ft-lbs. – Compression: 9.0:1 – Block: New 4-bolt main w/ 2-piece rear main seal – Crankshaft: Cast Iron – Pistons: Cast Aluminum – Camshaft: Rollin' Thunder Hydraulic Roller #2208 – Rocker Arms: 1.5:1 Roller – Manifold: Performer EPS Vortec #27164 – Cylinder Heads: E-Tec 170 #609715 – Carburetor: EPS 750 cfm carb – Water Pump: Short style water pump #88104 – Distributor: Included – Valve Covers: Elite II – Warranty: 2-year / Unlimited mileage

Additional Attributes:

GTIN: 00085347464142
Air Cleaner Type: Not Included
Camshaft Type: Rollin’ Thunder, Hydraulic Roller
Carburetor Choke Type: Electric
Carburetor Type: Performer 750 CFM, Endura Shine
Compression Ratio: 9.0:1
Construction Type: Assembled
Crankshaft Material: Cast Iron
Cylinder Head Material: Aluminum
Cylinder Head Type: Performer RPM
Displacement: 350
Distributor Included: Yes
Engine Block Material: Cast Iron
Flywheel Included: No
Grade Type: Performance
Hardware Included: Yes
Harmonic Balancer Included: Yes
Horsepower: 363
Intake Manifold Type: Performer EPS, Dual 4150, EnduraShine
Main Bearing Cap Bolt Quantity: 4-Bolt
Manifold Material: Aluminum
Oil Filter Included: Yes
Oil Pan Included: Yes
Piston Type: Cast Aluminum
Plug Wire and Boot Included: No
Quantity: Sold Individually
Rear Main Seal Type: 2-Piece
RGL: WARNING: This product can expose you to Chromium, Lead, and Zinc which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Rocker Arm Ratio: 1.5:1
Rocker Arm Type: Roller
Spark Plugs Included: No
Throttle Body Included: No
Timing Cover Included: Yes
Torque: 405
Type: Small-Block Chevy
Universal Or Specific Fit: Specific Fit
Valve Cover Included: Yes
Valve Cover Material: Cast Aluminum
Valve Cover Type: Elite II, Low Profile, Polished
Water Pump Included: Yes, Short Pump
Wire Harness Included: No

Extended Information:

Emissions : EPA Eligible
Life Cycle Status: Obsolete

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 40 x 27 x 31 inches
Weight: 440 PG

PDF:

46414
