Engine Complete Assembly

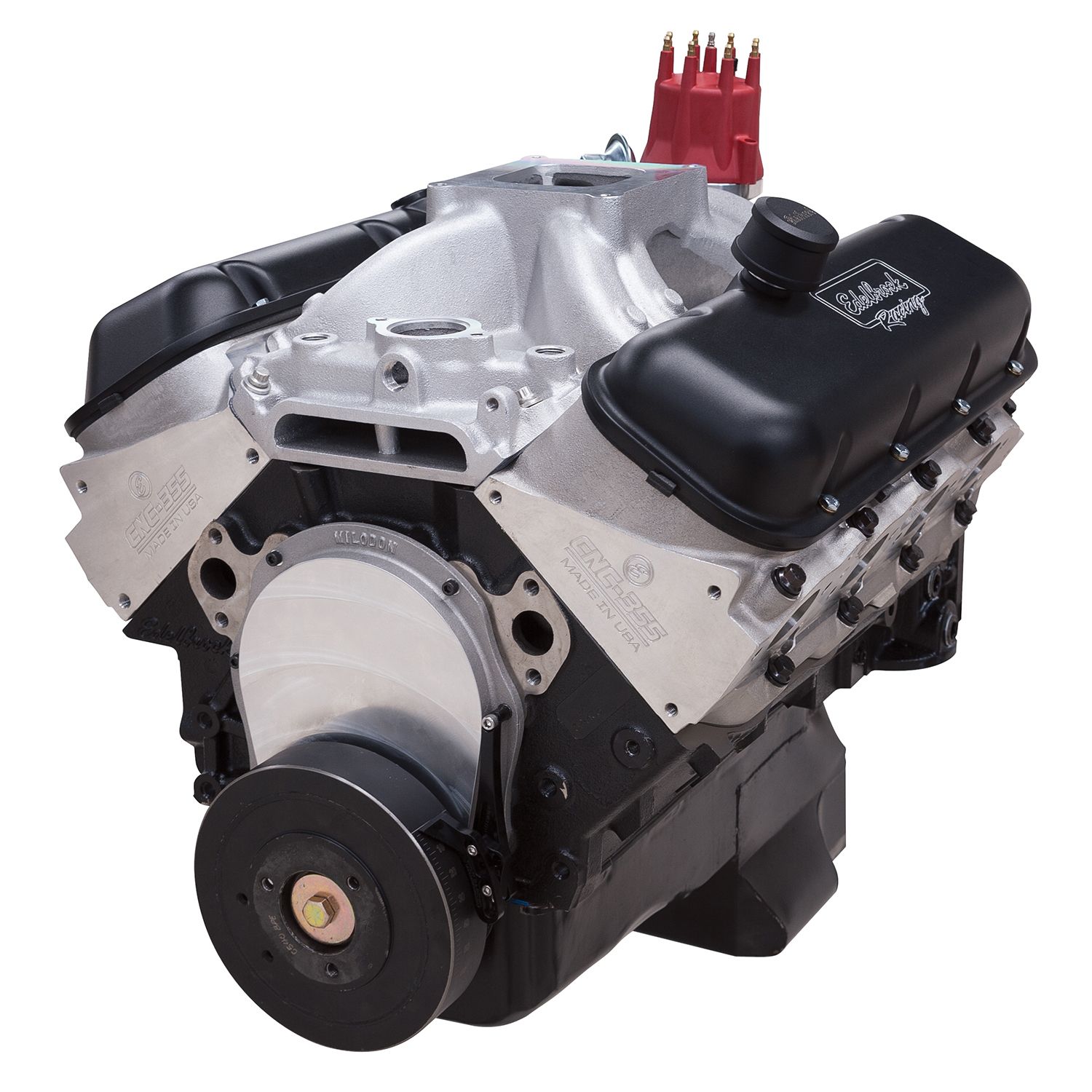

Edelbrock part #46230 540 c.i.d. crate engine is a great powerplant for any high performance build that delivers over 650 horsepower and 640 ft-lbs. of torque on pump gas. It features a top end package that includes a Victor Jr. intake manifold and E-CNC rectangular port cylinder heads that are 100% fully CNC ported for improved air flow. These heads also have stock exhaust port locations for use with off-the-shelf headers. This engine is sold without a carburetor, so you can select the best one for your performance goals. You can also special order this crate engine with an intake manifold with a 4500 series flange for even more power potential and any combination of valve covers to fit the look you want. Engine Specifications: – Displacement: 540 c.i.d. – Horsepower: 650+ hp – Torque: 640+ ft-lbs. – Compression: 10.0:1 – Block: Big-block 9.8" – Crankshaft: Forged Steel 4.250" – Pistons: Forged – Camshaft: Rollin' Thunder Hydraulic Roller #2264 – Rocker Arms: 1.7:1 Roller #77790 – Manifold: Victor Jr. 454-R #2902 – Cylinder Heads: E-CNC #79555 – Carburetor: Not Included – Distributor: Included – Valve Covers: Cast Aluminum – Warranty: 2-year / Unlimited mileage – Your engine is supplied with Edelbrock Break-In Oil in the crate. Before starting engine, you will need to prime the oil system. Do not turn engine over with starter motor for priming.

Additional Attributes:

GTIN: 00085347462308
Air Cleaner Type: Not Included
Alternator Included: No
Camshaft Type: Rollin’ Thunder, Hydraulic Roller
Carburetor Choke Type: N/A
Carburetor Type: Not Included
Compression Ratio: 10.0:1
Construction Type: Assembled
Crankshaft Material: Forged Steel
Cylinder Head Material: Aluminum
Cylinder Head Type: Performer E-CNC
Displacement: 540
Distributor Included: Yes
ECU Included: No
Engine Block Material: Cast Iron
Flywheel Included: No
Grade Type: Performance
Hardware Included: Yes
Harmonic Balancer Included: Yes
Horsepower: 650+
Idler Pulley Included: No
Induction Type: Carbureted
Intake Manifold Type: Victor Jr., Dual 4150, Satin
Main Bearing Cap Bolt Quantity: 4-Bolt
Manifold Material: Aluminum
Oil Filter Included: Yes
Oil Pan Included: Yes
Piston Type: Forged Aluminum
Plug Wire and Boot Included: No
Quantity: Sold Individually
Rear Main Seal Type: 1-Piece
RGL: WARNING: This product can expose you to Chromium, Lead, and Zinc which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Rocker Arm Ratio: 1.7:1
Rocker Arm Type: Roller
Spark Plugs Included: No
Throttle Body Included: No
Timing Cover Included: Yes
Torque: 640+
Type: Big-Block Chevy
Universal Or Specific Fit: Specific Fit
Valve Cover Included: No
Valve Cover Material: Cast Aluminum
Valve Cover Type: Victor, Low Profile, Black Textured Powder Coated
Water Pump Included: No
Wire Harness Included: No

Extended Information:

Emissions : 2
Life Cycle Status: Obsolete

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 36.5 x 36 x 44.5 inches
Weight: 577 PG
