Engine Complete Assembly

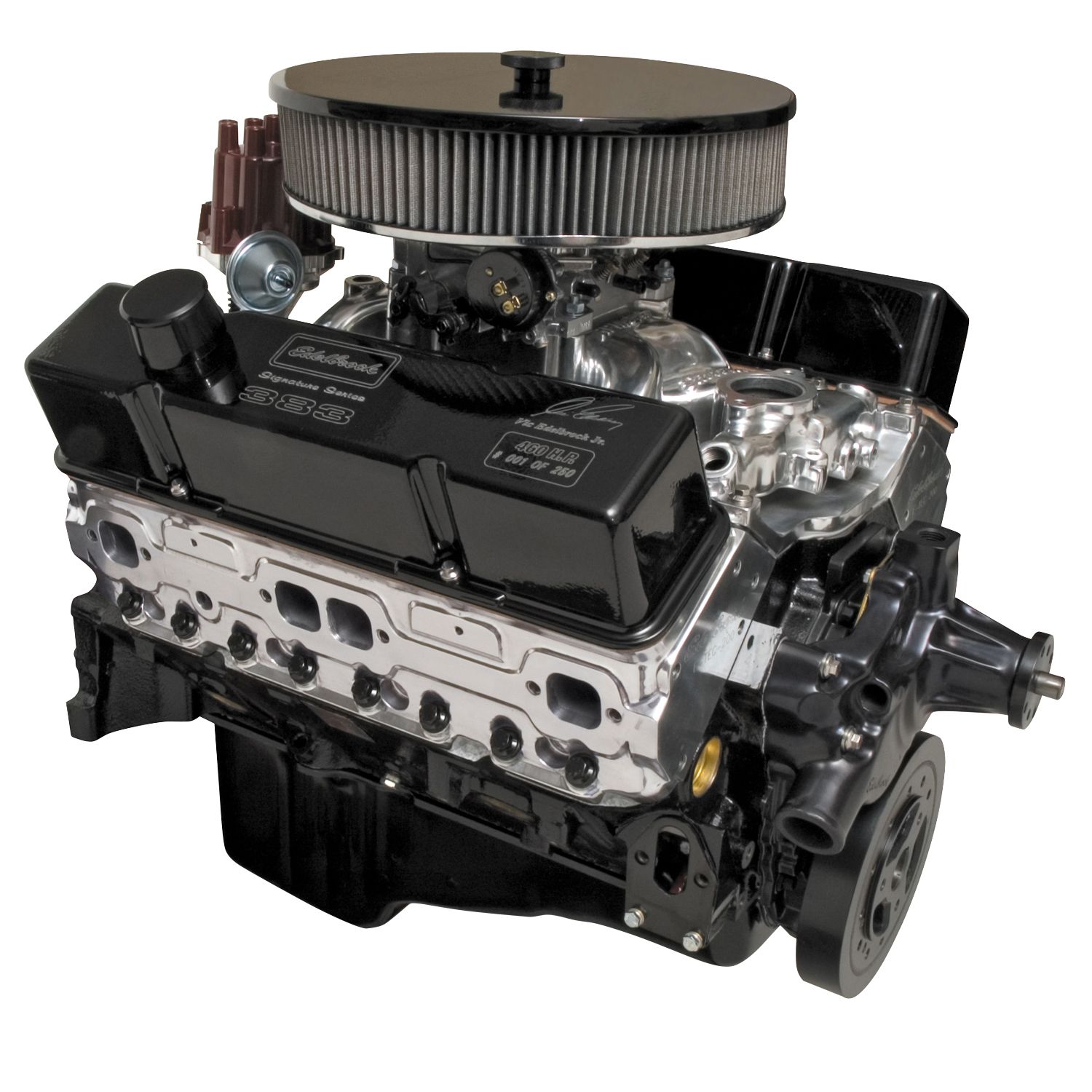

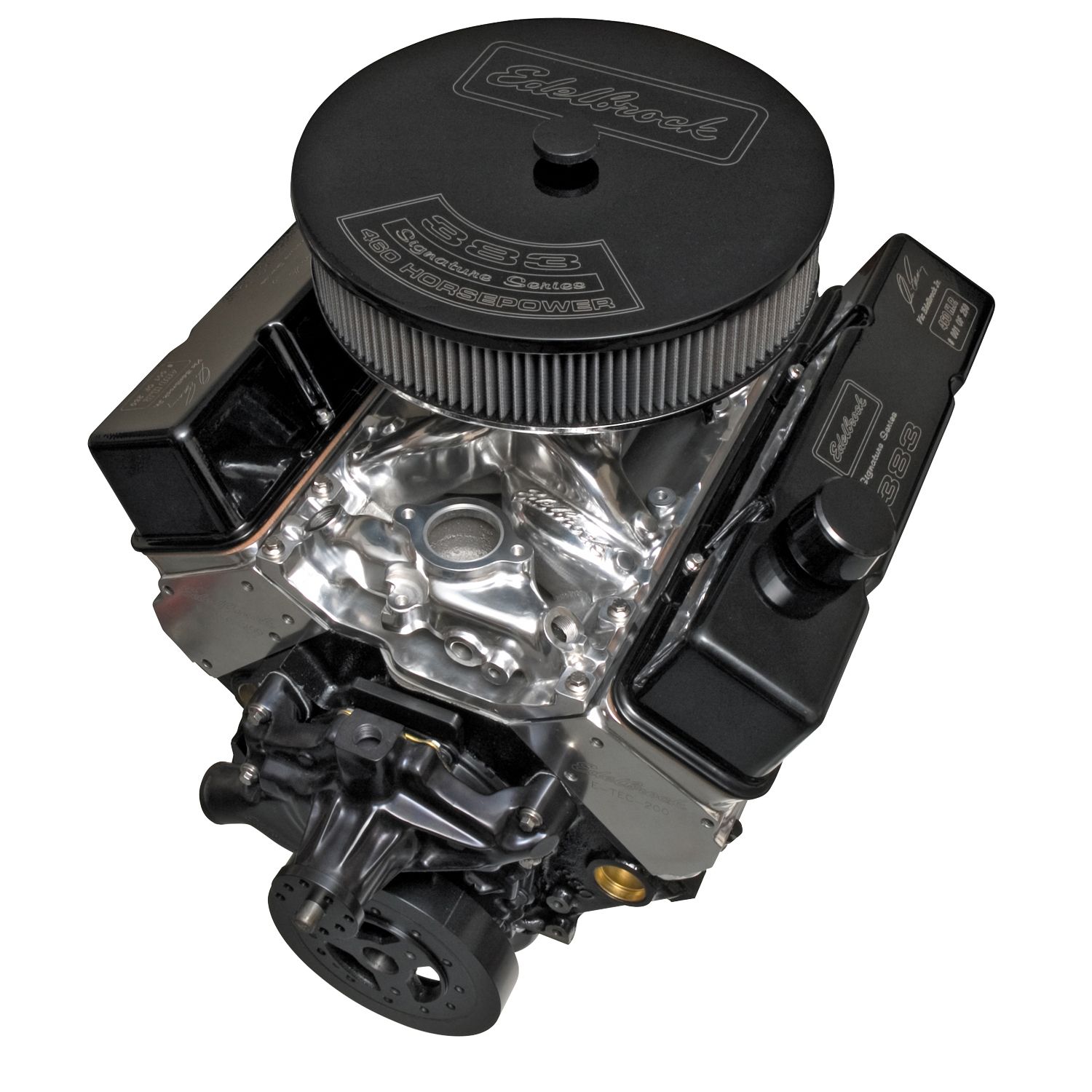

Edelbrock part #46213 Signature Series 383 is truly a unique crate engine, designed for those with an appreciation for Edelbrock performance and collectability. This 383 cubic inch Chevy delivers 460 horsepower and 460 ft-lbs. of torque. Qualities include: 100% brand new, 383 short block with forged steel crankshaft, powdered metal rods and hypereutectic pistons, Edelbrock E-TEC 200 heads, Rollin' Thunder hydraulic roller camshaft, roller rocker arms, RPM Air-Gap intake manifold, Thunder Series AVS 800 cfm carburetor and short water pump. Unique to the SS383, the water pump, valve covers and air cleaner are styled with a black finish. The valve covers are then laser engraved with Vic Edelbrock's signature and the engines serial number. Only 250 will be made – get one while you still can. Engine Specifications: – Displacement: 383 c.i.d. – Horsepower: 460 hp – Torque: 460 ft-lbs. – Compression: 9.5:1 – Block: NEW 383 4 bolt main with 1-piece rear main seal – Crankshaft: Forged steel – Pistons: Hypereutectic – Camshaft: Rollin' Thunder Hydraulic Roller #2207 – Rocker Arms: 1.5:1 Roller – Manifold: RPM Air-Gap #75161 – Cylinder Heads: Polished E-Tec 200 #609815 – Carburetor: Thunder Series AVS – Water Pump: Victor Series aluminum – Distributor: Included – Valve Covers: Cast aluminum – Warranty: 2-year / Unlimited mileage

Additional Attributes:

GTIN: 00085347462131
Air Cleaner Type: Signature
Camshaft Type: Signature Performer RPM, Hydraulic Roller
Carburetor Choke Type: Electric
Carburetor Type: AVS2 800 CFM, Satin
Compression Ratio: 9.5:1
Construction Type: Assembled
Crankshaft Material: Forged Steel
Cylinder Head Material: Aluminum
Cylinder Head Type: E-Tec 200
Displacement: 383
Distributor Included: Yes
Engine Block Material: Cast Iron
Flywheel Included: No
Grade Type: Performance
Hardware Included: Yes
Harmonic Balancer Included: Yes
Horsepower: 460
Intake Manifold Type: Performer RPM Air-Gap, Dual 4150, Polished
Main Bearing Cap Bolt Quantity: 4-Bolt
Manifold Material: Aluminum
Oil Filter Included: Yes
Oil Pan Included: Yes
Piston Type: Hypereutectic Aluminum
Plug Wire and Boot Included: Yes
Quantity: Sold Individually
Rear Main Seal Type: 1-Piece
RGL: WARNING: This product can expose you to Chromium, Lead, and Zinc which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Rocker Arm Ratio: 1.5:1
Rocker Arm Type: Roller
Spark Plugs Included: Yes
Throttle Body Included: No
Timing Cover Included: Yes
Torque: 460
Type: Small-Block Chevy
Universal Or Specific Fit: Specific Fit
Valve Cover Included: Yes
Valve Cover Material: Cast Aluminum
Valve Cover Type: Victor, Tall Profile, Black Textured Powder Coated
Water Pump Included: No
Wire Harness Included: No

Extended Information:

Emissions : EPA Eligible
Life Cycle Status: Obsolete

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 1 x 1 x 1 inches
Weight: 470 PG

PDF:

46213
