Engine Complete Assembly

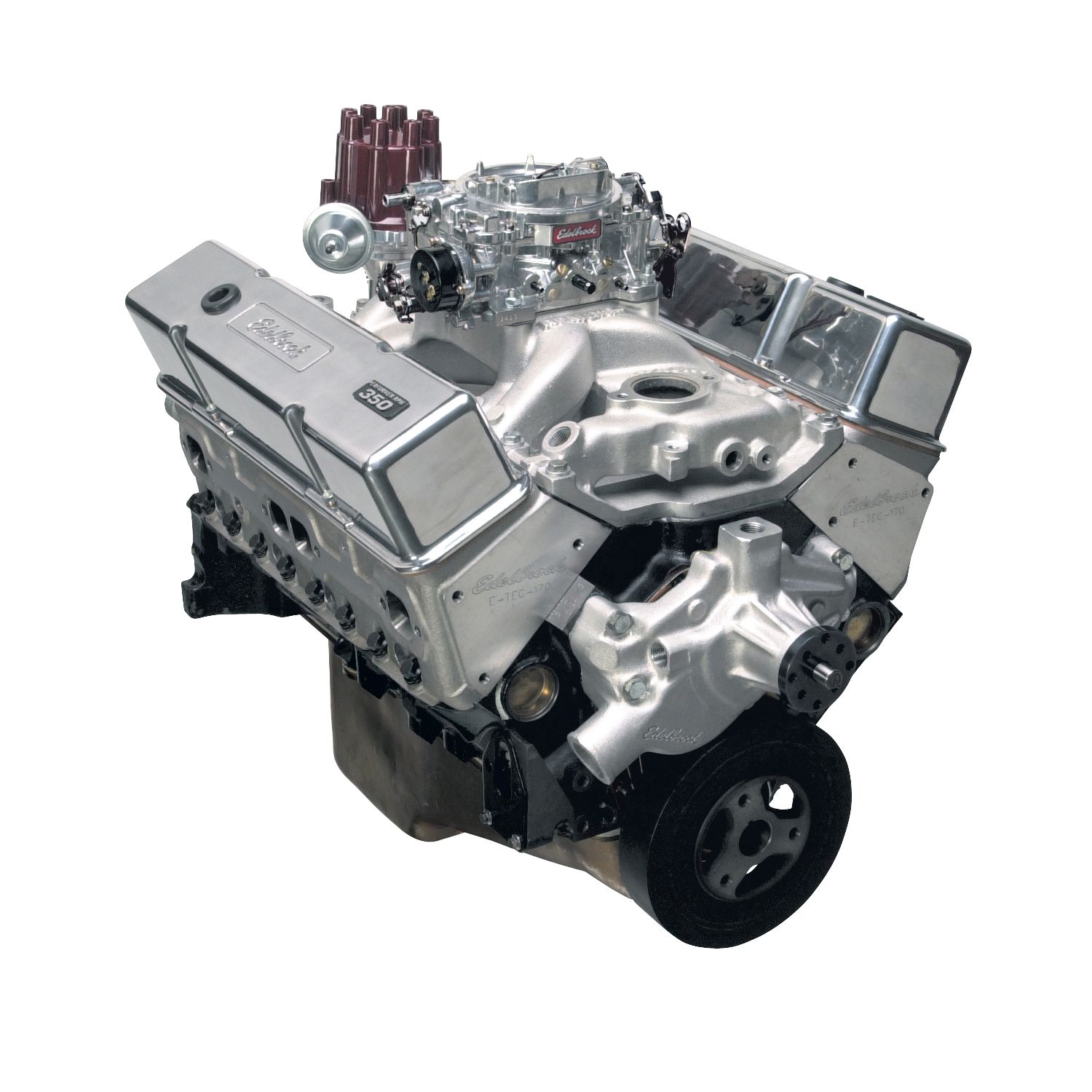

Edelbrock part #45910 Performer RPM E-Tec small-block 350 Chevy crate engine offers the best of quality and performance with 435 HP & 435 ft/lbs. of torque right out of the crate. This crate engine is the ultimate 350 cubic inch small-block Chevy for muscle cars, street rods and trucks. Performer RPM E-Tec crate engines are 100% brand new and include a 4-bolt main short block, Edelbrock E-Tec 170 heads, Rollin' Thunder hydraulic roller camshaft, roller rocker arms, RPM Air-Gap intake manifold with 800 cfm carb and short water pump. Engine Specifications: – Finish: Satin – Displacement: 350 c.i.d. – Horsepower: 435 hp – Torque: 435 ft-lbs. – Compression: 9.5:1 – Block: New 4 bolt main with 1-piece rear seal – Crankshaft: Forged steel – Pistons: Hypereutectic – Camshaft: Rollin' Thunder Hydraulic Roller #2204 – Rocker Arms: 1.5:1 Roller – Manifold: RPM Air-Gap Vortec #7516 – Cylinder Heads: E-Tec 170 #60975 – Carburetor: Thunder Series AVS 800 cfm – Water Pump: Short style water pump – Distributor: Included – Valve Covers: Elite II Series – Warranty: 2-year / Unlimited mileage

Additional Attributes:

GTIN: 00085347459100
Air Cleaner Type: Elite II
Camshaft Type: Rollin’ Thunder, Hydraulic Roller
Carburetor Choke Type: Electric
Carburetor Type: AVS2 800 CFM, Satin
Compression Ratio: 9.5:1
Construction Type: Assembled
Crankshaft Material: Forged Steel
Cylinder Head Material: Aluminum
Cylinder Head Type: E-Tec 170
Displacement: 350
Distributor Included: Yes
Engine Block Material: Cast Iron
Flywheel Included: No
Grade Type: Performance
Hardware Included: Yes
Harmonic Balancer Included: Yes
Horsepower: 435
Intake Manifold Type: Performer RPM Air-Gap, Dual 4150, Satin
Main Bearing Cap Bolt Quantity: 4-Bolt
Manifold Material: Aluminum
Oil Filter Included: Yes
Oil Pan Included: Yes
Piston Type: Hypereutectic Aluminum
Plug Wire and Boot Included: No
Quantity: Sold Individually
Rear Main Seal Type: 1-Piece
RGL: WARNING: This product can expose you to Chromium, Lead, and Zinc which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Rocker Arm Ratio: 1.5:1
Rocker Arm Type: Roller
Spark Plugs Included: No
Throttle Body Included: No
Timing Cover Included: Yes
Torque: 435
Type: Small-Block Chevy
Universal Or Specific Fit: Specific Fit
Valve Cover Included: Yes
Valve Cover Material: Cast Aluminum
Valve Cover Type: Edelbrock, Tall Profile, Polished
Water Pump Included: Yes, Short Pump
Wire Harness Included: No

Extended Information:

Emissions : EPA Eligible
Life Cycle Status: Obsolete

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 40 x 27 x 31 inches
Weight: 440 PG

PDF:

45910
