Engine Complete Assembly

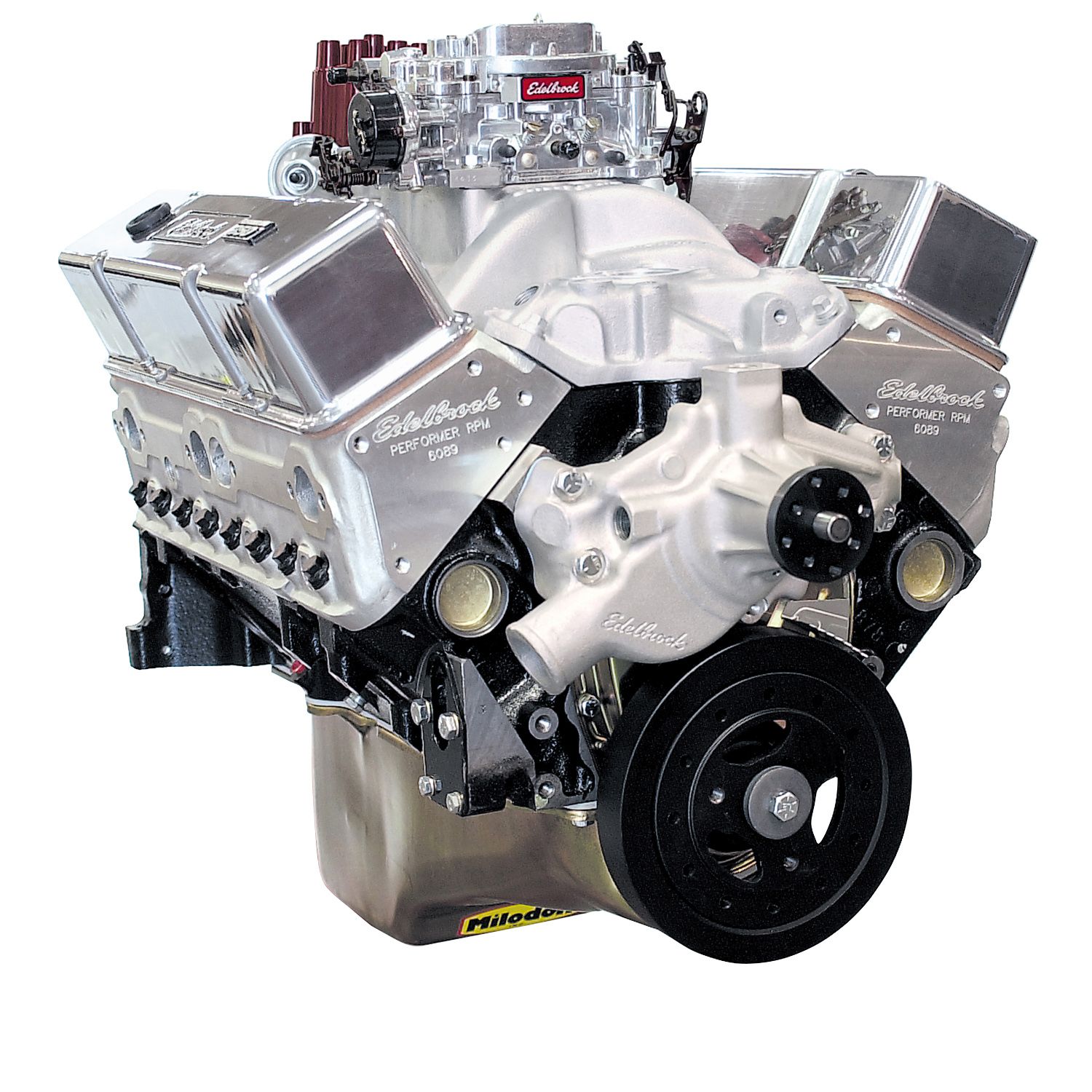

Edelbrock part #45610 Performer RPM small-block Chevy 350 crate engine offers the best of quality and performance right out of the crate. This Crate Engine delivers outstanding street high performance with 410 HP & 408 ft/lbs. of torque. Performer RPM crate engines are 100% brand new and include a 4-bolt main block, Edelbrock Performer RPM heads, hydraulic camshaft, roller rocker arms, RPM intake manifold with a 800 cfm AVS carb and short water pump. Engine Specifications: – Finish: Satin – Displacement: 350 c.i.d. – Horsepower: 410 hp – Torque: 408 ft-lbs. – Compression: 9.5:1 – Block: New 4 bolt main with 1-piece rear seal – Crankshaft: Forged steel – Pistons: Hypereutectic – Camshaft: Performer RPM #7102 – Rocker Arms: 1.5:1 Roller – Manifold: Performer RPM 7101 – Cylinder Heads: Performer RPM #60899 – Carburetor: Thunder Series AVS 800 cfm – Water Pump: Short Water pump #8810 – Distributor: Included – Valve Covers: Cast aluminum – Warranty: 2-year / Unlimited mileage

Additional Attributes:

GTIN: 00085347456109
Air Cleaner Type: Not Included
Camshaft Type: Performer RPM, Hydraulic Flat Tappet
Carburetor Choke Type: Electric
Carburetor Type: Thunder AVS2 800 CFM, Satin
Compression Ratio: 9.5:1
Construction Type: Assembled
Crankshaft Material: Forged Steel
Cylinder Head Material: Aluminum
Cylinder Head Type: Performer RPM
Displacement: 350
Distributor Included: Yes
Engine Block Material: Cast Iron
Flywheel Included: No
Grade Type: Performance
Hardware Included: Yes
Harmonic Balancer Included: Yes
Horsepower: 410
Intake Manifold Type: Performer RPM, Dual 4150, Satin
Main Bearing Cap Bolt Quantity: 4-Bolt
Manifold Material: Aluminum
Oil Filter Included: Yes
Oil Pan Included: Yes
Piston Type: Hypereutectic Aluminum
Plug Wire and Boot Included: No
Quantity: Sold Individually
Rear Main Seal Type: 1-Piece
RGL: WARNING: This product can expose you to Chromium, Lead, and Zinc which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Rocker Arm Ratio: 1.5:1
Rocker Arm Type: Roller
Spark Plugs Included: No
Throttle Body Included: No
Timing Cover Included: Yes
Torque: 408
Type: Small-Block Chevy
Universal Or Specific Fit: Specific Fit
Valve Cover Included: Yes
Valve Cover Material: Cast Aluminum
Valve Cover Type: Edelbrock, Tall Profile, Polished
Water Pump Included: Yes, Short Pump
Wire Harness Included: No

Extended Information:

Emissions : EPA Eligible
Life Cycle Status: Obsolete

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 40 x 27 x 31 inches
Weight: 440 PG

PDF:

45610
