Engine Complete Assembly

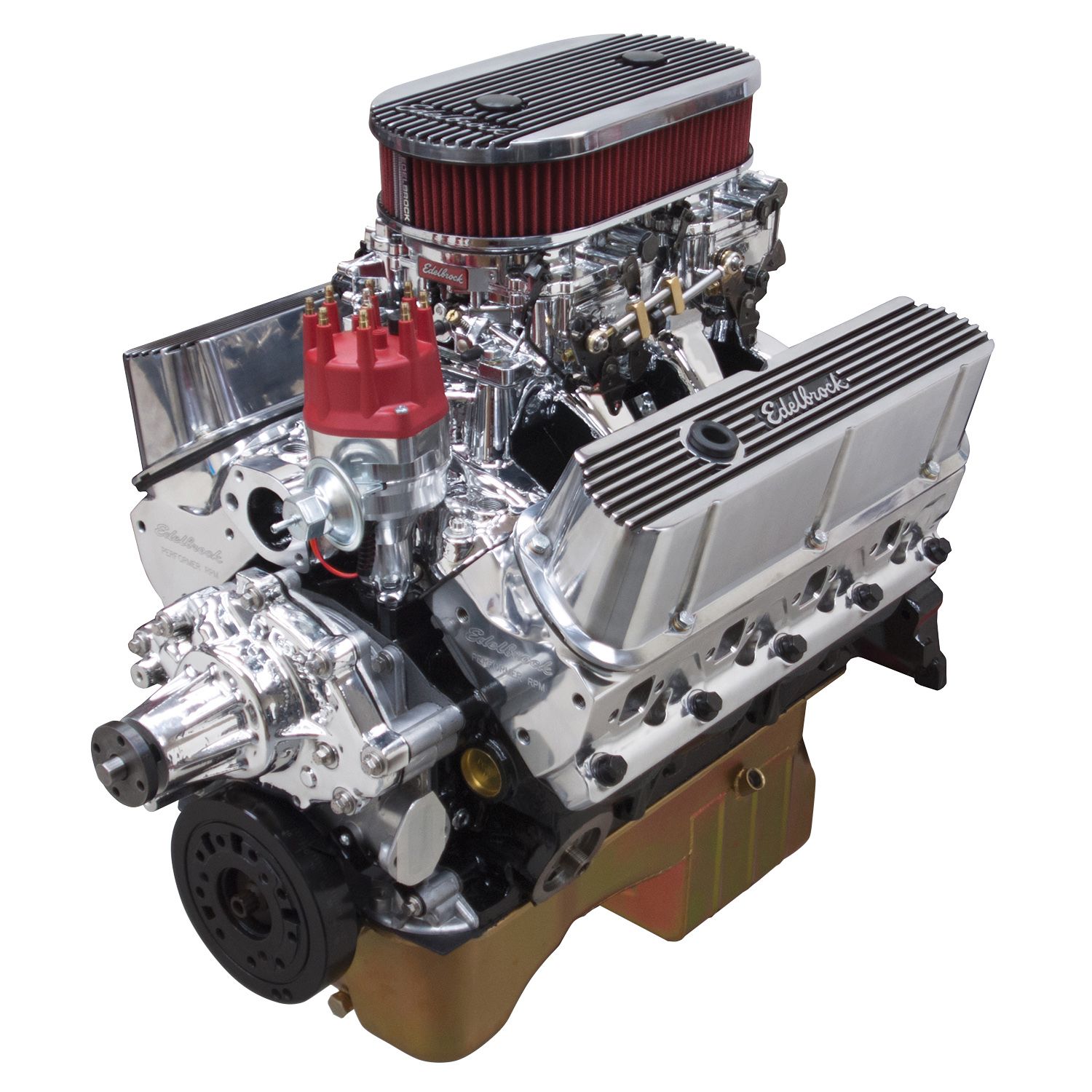

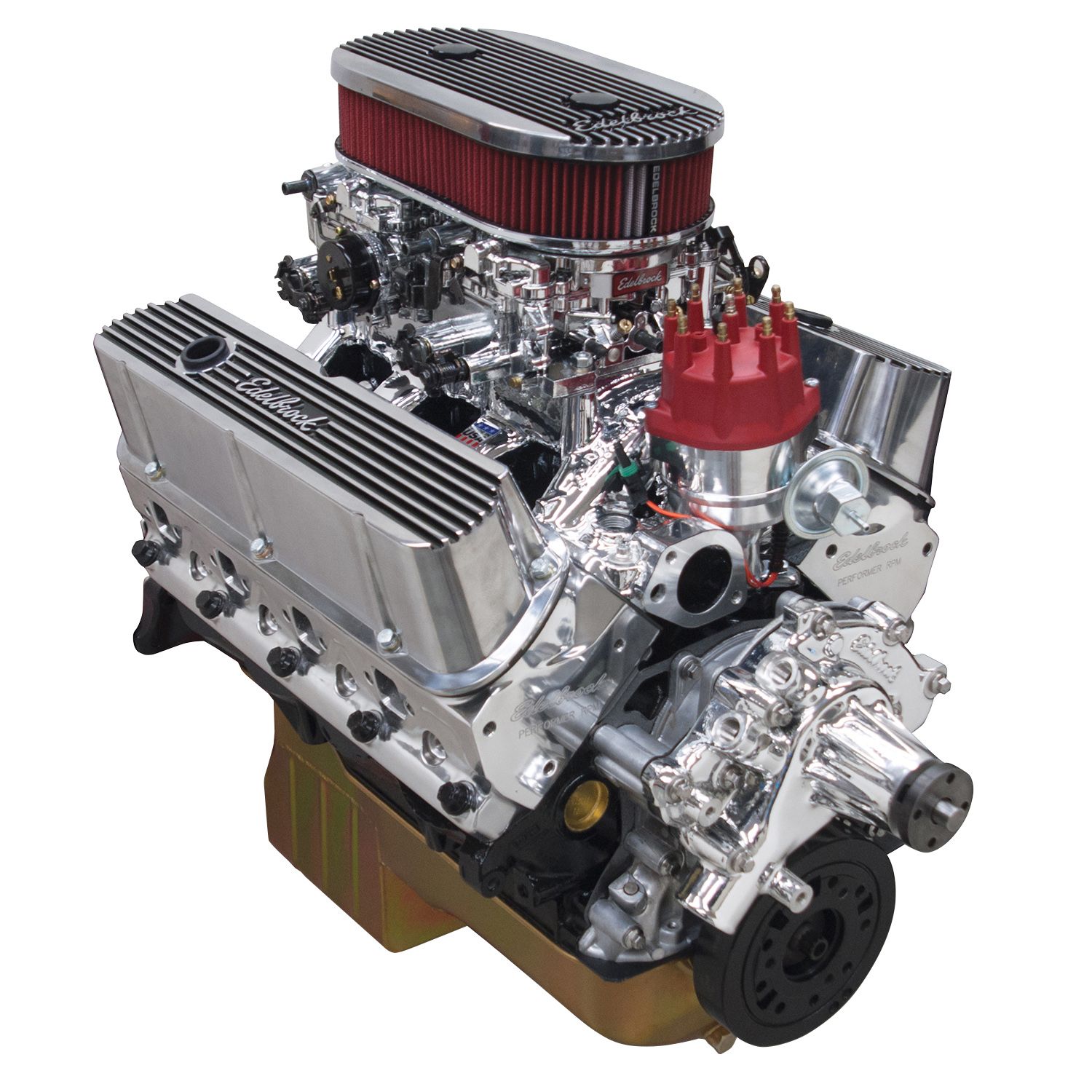

Edelbrock part #45474 Performer RPM Dual-Quad small-block Ford 347 crate engine offers the best of quality and performance with 438 HP & 413 ft/lbs. of torque right out of the crate. This 347 engine combines a Dart cast iron 4 bolt main block and a forged Scat rotating assembly which is then paired with our proven Edelbrock Power Package parts. This Performer RPM 347 engine includes a Milodon oil pan and pickup designed for use with 1974 and later applications as well as street rods that require a rear sump to clear the crossmember and/or suspension. Engine Specifications: – Finish: EnduraShine – Displacement: 347 c.i.d. (4.030" bore x 3.400" stroke) – Horsepower: 438 hp – Torque: 413 ft-lbs. – Compression: 9.5:1 – Block: Small-block (8.2" deck height) – Crankshaft: Forged Steel – Pistons: Forged – Camshaft: Rollin' Thunder Hydraulic Roller #2281 – Rocker Arms: 1.6:1 Roller #77780 – Manifold: RPM Air-Gap Dual-Quad #75354 – Cylinder Heads: Performer RPM #602515 – Carburetor: Thunder Series AVS – Water Pump: Victor series aluminum #88414 – Distributor: Included – Valve Covers: Elite II – Warranty: 2-year / Unlimited mileage

Additional Attributes:

GTIN: 00085347454747
Air Cleaner Type: Elite II
Camshaft Type: Rollin’ Thunder, Hydraulic Roller
Carburetor Choke Type: Electric Or Manual
Carburetor Type: Thunder AVS2 500 CFM, EnduraShine
Compression Ratio: 9.5:1
Construction Type: Assembled
Crankshaft Material: Forged Steel
Cylinder Head Material: Aluminum
Cylinder Head Type: Performer RPM
Displacement: 347
Distributor Included: Yes
Engine Block Material: Cast Iron
Flywheel Included: No
Grade Type: Performance
Hardware Included: Yes
Harmonic Balancer Included: Yes
Horsepower: 449
Intake Manifold Type: Performer RPM Air-Gap, Dual-Quad/Multi-Carb 4150, EnduraShine
Main Bearing Cap Bolt Quantity: 4-Bolt
Manifold Material: Aluminum
Oil Filter Included: Yes
Oil Pan Included: Yes, Rear Sump
Piston Type: Forged Aluminum
Plug Wire and Boot Included: No
Quantity: Sold Individually
Rear Main Seal Type: 1-Piece
RGL: WARNING: This product can expose you to Chromium, Lead, and Zinc which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Rocker Arm Ratio: 1.6:1
Rocker Arm Type: Roller
Spark Plugs Included: No
Throttle Body Included: No
Timing Cover Included: Yes
Torque: 417
Type: Small-Block Ford
Universal Or Specific Fit: Specific Fit
Valve Cover Included: Yes
Valve Cover Material: Cast Aluminum
Valve Cover Type: Elite II, Tall Profile, Polished
Water Pump Included: Yes
Wire Harness Included: No

Extended Information:

Emissions : EPA Eligible
Life Cycle Status: Obsolete

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 40 x 27 x 31 inches
Weight: 460 PG
