Engine Complete Assembly

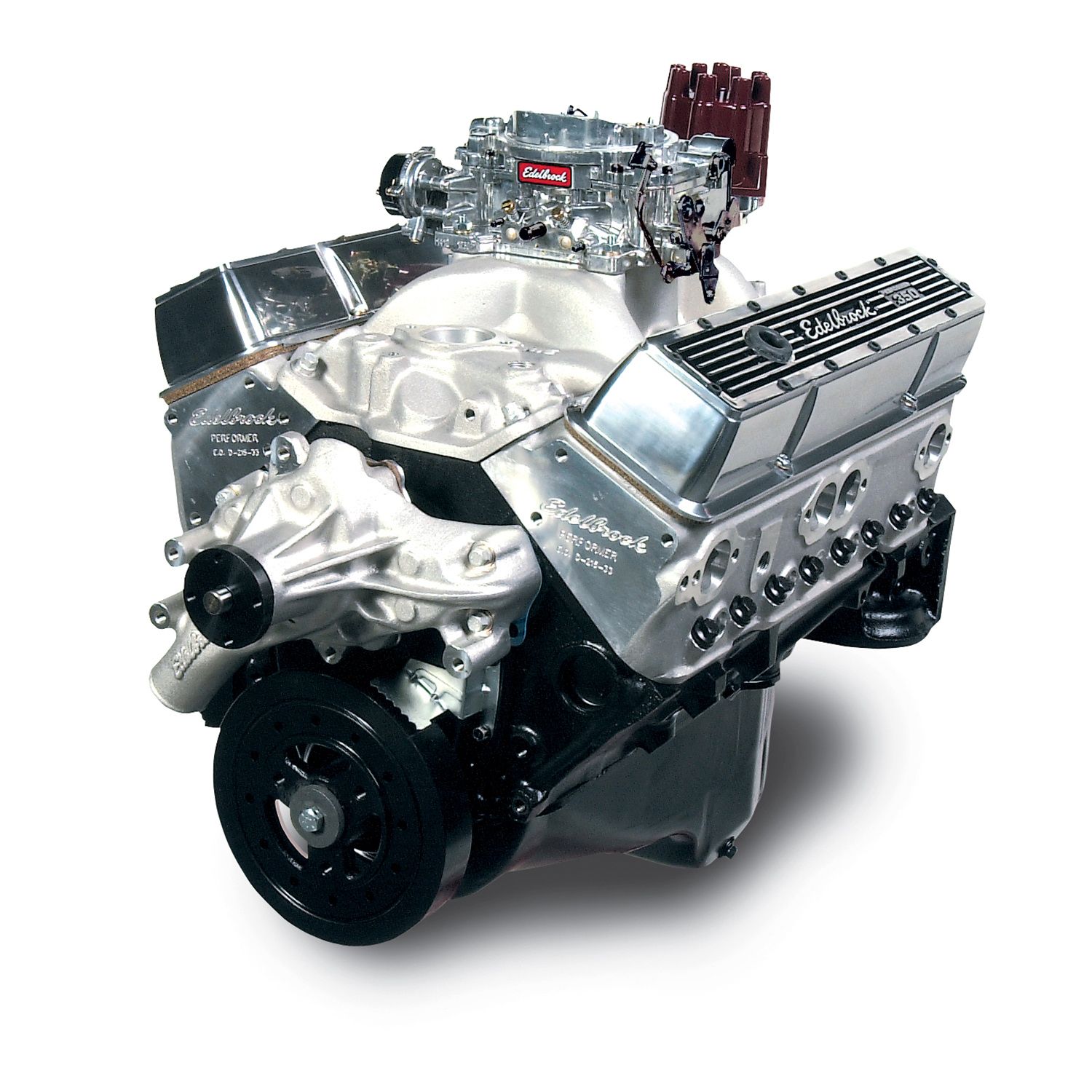

Edelbrock part #45420 Performer small-block Chevy 350 crate engine offers the best of quality and performance with 320 HP & 382 ft/lbs. of torque right out of the crate. This small-block Chevy 350 crate engine is ideal for any street rod, muscle car or truck owner looking for 300+ hp performance on 87-octane fuel. Performer crate engines are 100% brand new and include a 4-bolt main block, Edelbrock Performer heads, hydraulic camshaft, roller rocker arms, EPS intake manifold with a AVS2 650 cfm carb and long water pump. Specifications: – Finish: Satin – Displacement: 350 c.i.d. – Horsepower: 320 hp – Torque: 382 ft-lbs. – Compression: 9.0:1 – Block: New 4-bolt main w/ 2-piece rear main seal – Crankshaft: Cast Iron – Pistons: Cast Aluminum – Camshaft: Performer #2102 – Rocker Arms: 1.5:1 Roller – Manifold: Performer EPS – Cylinder Heads: Performer RPM – Carburetor: AVS2 650 cfm – Water Pump: Long style water pump – Distributor: Included – Valve Covers: Elite II – Warranty: 2-year / Unlimited mileage

Additional Attributes:

GTIN: 00085347454204
Air Cleaner Type: Not Included
Camshaft Type: Performer, Flat Tappet
Carburetor Choke Type: Electric
Carburetor Type: Thunder AVS2 650 CFM, Satin
Compression Ratio: 9.0:1
Construction Type: Assembled
Crankshaft Material: Cast Iron
Cylinder Head Material: Aluminum
Cylinder Head Type: Performer RPM
Displacement: 350
Distributor Included: Yes
Engine Block Material: Cast Iron
Flywheel Included: No
Grade Type: Performance
Hardware Included: Yes
Harmonic Balancer Included: Yes
Horsepower: 320
Intake Manifold Type: Performer EPS, Dual 4150, Satin
Main Bearing Cap Bolt Quantity: 4-Bolt
Manifold Material: Aluminum
Oil Filter Included: Yes
Oil Pan Included: Yes
Piston Type: Forged Aluminum
Plug Wire and Boot Included: No
Quantity: Sold Individually
Rear Main Seal Type: 2-Piece
RGL: WARNING: This product can expose you to Chromium, Lead, and Zinc which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Rocker Arm Ratio: 1.5:1
Rocker Arm Type: Roller
Spark Plugs Included: No
Throttle Body Included: No
Timing Cover Included: Yes
Torque: 382
Type: Small-Block Chevy
Universal Or Specific Fit: Specific Fit
Valve Cover Included: Yes
Valve Cover Material: Cast Aluminum
Valve Cover Type: Elite II, Low Profile, Polished
Water Pump Included: Yes, Long Pump
Wire Harness Included: No

Extended Information:

Emissions : EPA Eligible
Life Cycle Status: Obsolete

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 40 x 27 x 31 inches
Weight: 440 PG

PDF:

45420
