Engine Complete Assembly

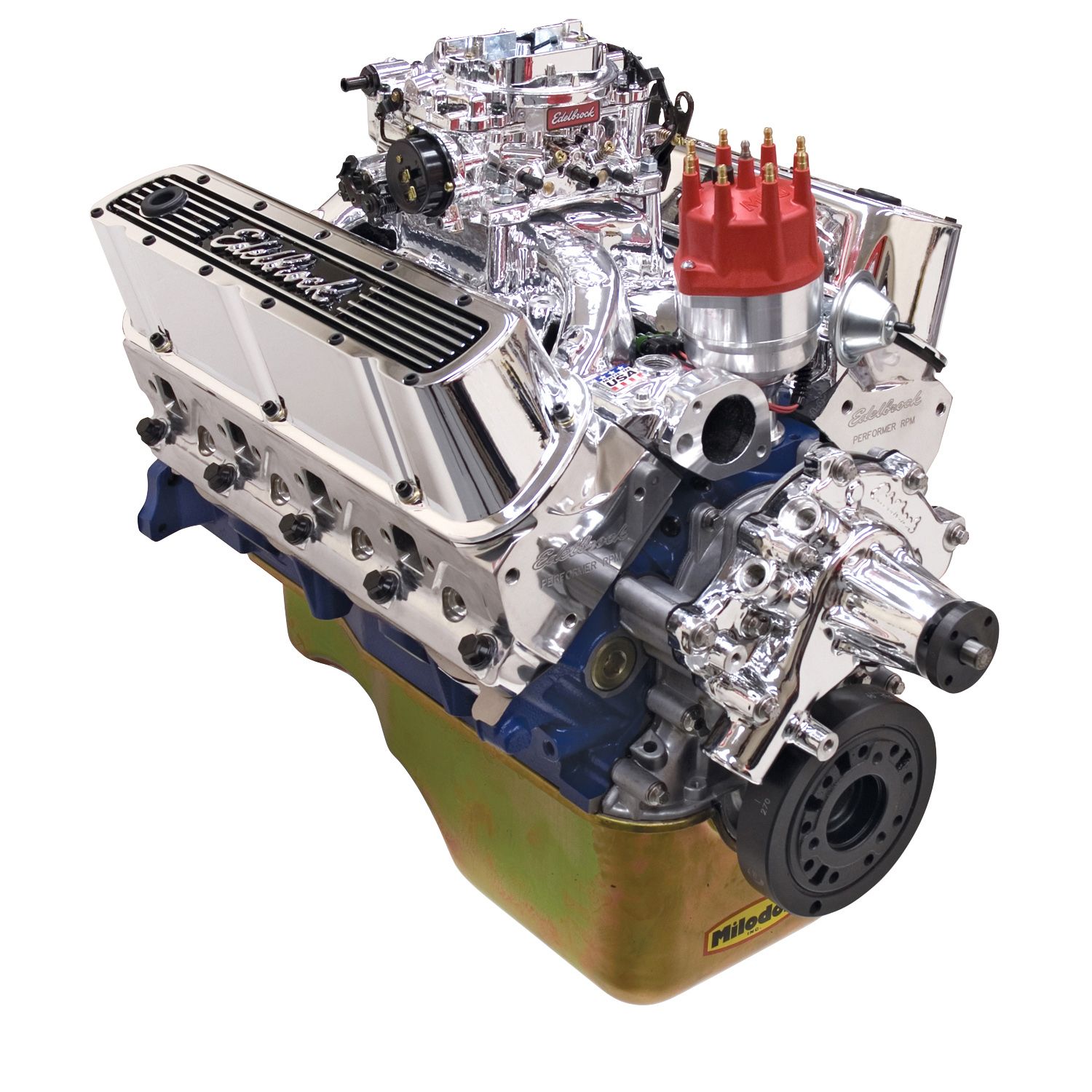

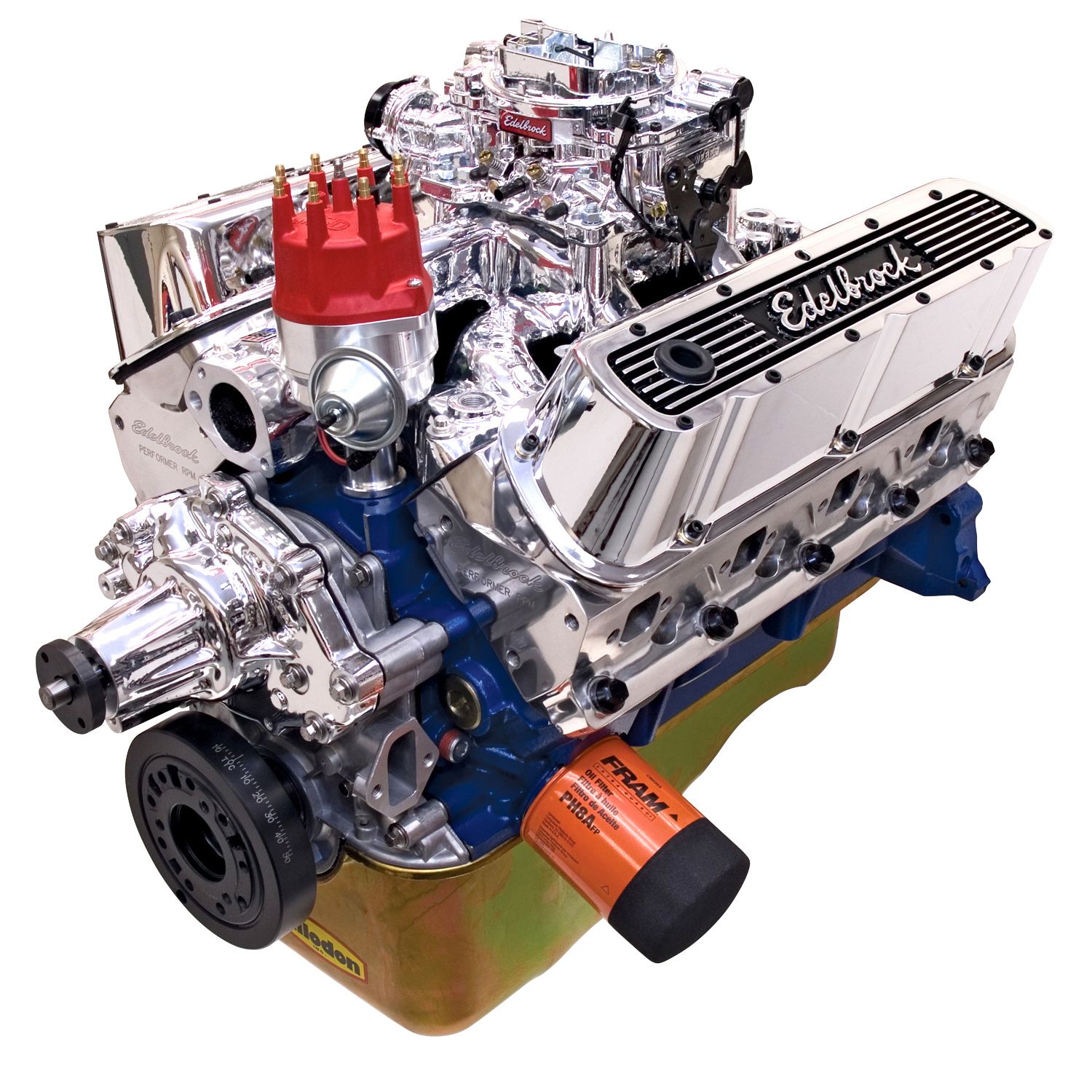

Edelbrock part #45264 Performer RPM small-block Ford 347 crate engine offers the best of quality and performance with 438 HP & 413 ft/lbs. of torque. This engine combines a Dart cast iron 4 bolt main block and a forged Scat rotating assembly which is then paired with our proven Edelbrock Power Package parts. This Performer RPM 347 engine includes a Milodon oil pan and pickup designed for use with 1973 and earlier applications that require a front sump to clear the crossmember and/or suspension. Engine Specifications: – Finish: EnduraShine – Displacement: 347 c.i.d. (4.030" bore x 3.400" stroke) – Horsepower: 438 hp – Torque: 413 ft-lbs. – Compression: 9.5:1 – Block: Dart Small-block (8.2" deck height) – Crankshaft: Scat Forged Steel – Pistons: Scat Forged – Camshaft: Rollin' Thunder Hydraulic Roller #2281 – Rocker Arms: 1.6:1 Roller #77780 – Manifold: RPM Air-Gap #75214 – Cylinder Heads: Performer RPM #602515 – Carburetor: Thunder Series AVS 800 cfm – Water Pump: Victor series aluminum #88414 – Distributor: Included – Valve Covers: Elite II – Warranty: 2-year / Unlimited mileage

Additional Attributes:

GTIN: 00085347452644
Air Cleaner Type: Not Included
Camshaft Type: Rollin’ Thunder, Hydraulic Roller
Carburetor Choke Type: Electric
Carburetor Type: Thunder AVS 800 CFM, EnduraShine
Compression Ratio: 9.5:1
Construction Type: Assembled
Crankshaft Material: Forged Steel
Cylinder Head Material: Aluminum
Cylinder Head Type: Performer RPM
Displacement: 347
Distributor Included: Yes
Engine Block Material: Cast Iron
Flywheel Included: No
Grade Type: Performance
Hardware Included: Yes
Harmonic Balancer Included: Yes
Horsepower: 438
Intake Manifold Type: Performer RPM Air-Gap, Dual 4150, EnduraShine
Main Bearing Cap Bolt Quantity: 4-Bolt
Manifold Material: Aluminum
Oil Filter Included: Yes
Oil Pan Included: Yes, Front Sump
Piston Type: Forged Aluminum
Plug Wire and Boot Included: No
Quantity: Sold Individually
Rear Main Seal Type: 1-Piece
RGL: WARNING: This product can expose you to Chromium, Lead, and Zinc which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Rocker Arm Ratio: 1.6:1
Rocker Arm Type: Roller
Spark Plugs Included: No
Throttle Body Included: No
Timing Cover Included: Yes
Torque: 413
Type: Small-Block Ford
Universal Or Specific Fit: Specific Fit
Valve Cover Included: Yes
Valve Cover Material: Cast Aluminum
Valve Cover Type: Elite II, Tall Profile, Polished
Water Pump Included: Yes, Standard
Wire Harness Included: No

Extended Information:

Emissions : EPA Eligible
Life Cycle Status: Obsolete

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 40 x 27 x 31 inches
Weight: 430 PG
