Engine Camshaft

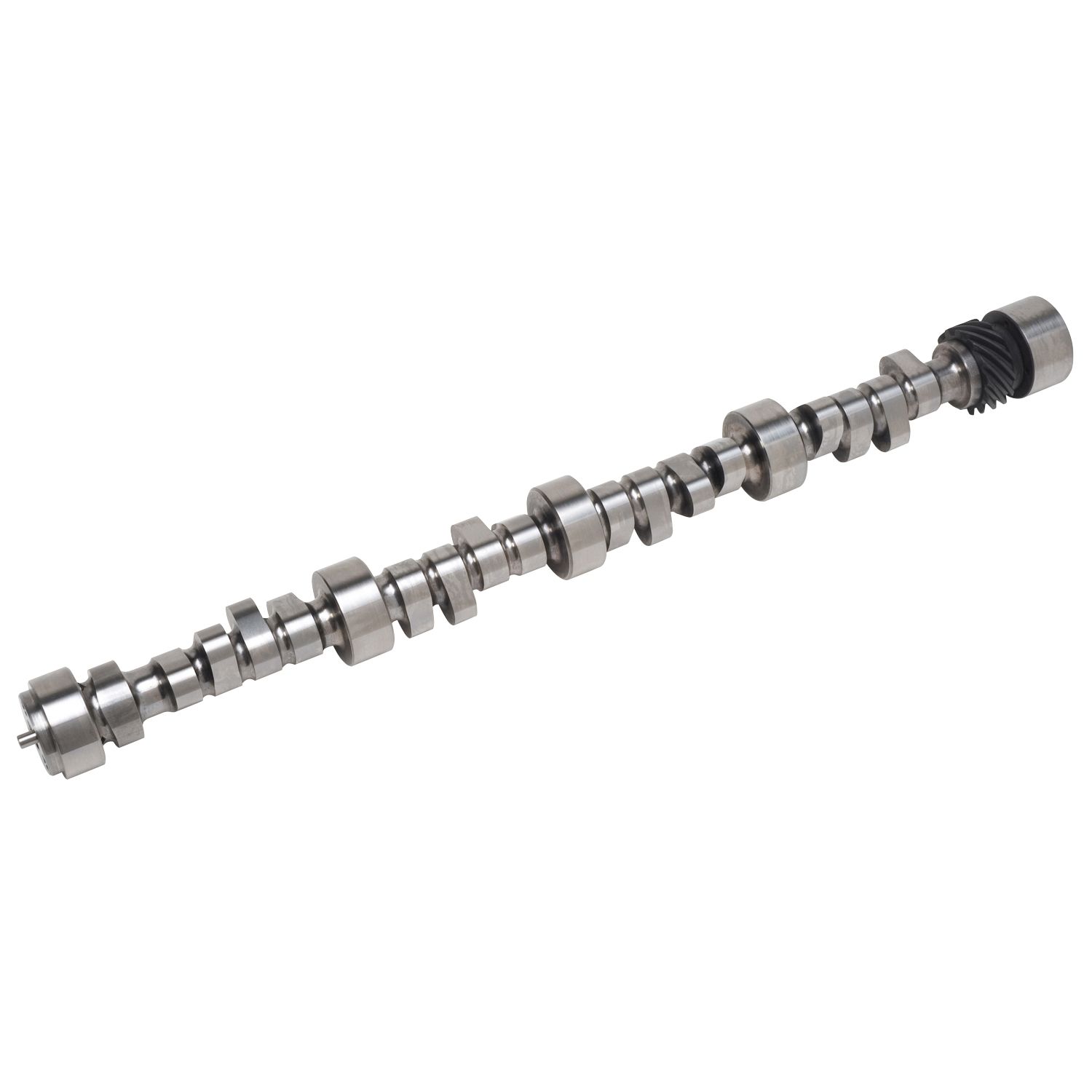

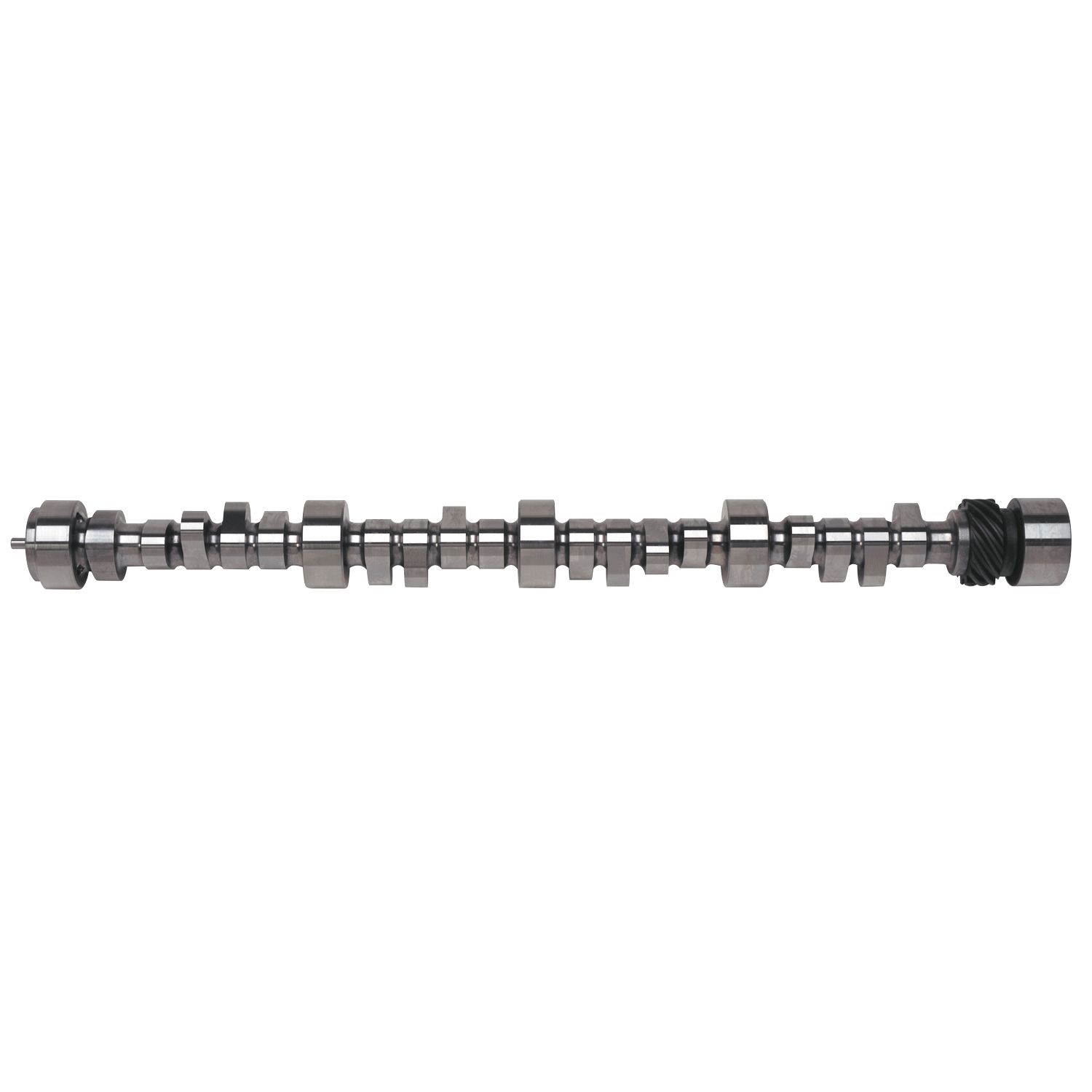

Edelbrock Rollin' Thunder Camshaft #2207 is designed for 283-400 V8 Chevy engines from 1987-Later and produces optimum torque from the low-end to the mid-range. Rollin' Thunder camshafts should be matched with Performer manifolds for vehicles operating from off-idle to 5500 rpm. They are smooth idling cams for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions. This camshaft produced 460HP and 460 Ft Lbs of Torque when paired with Performer RPM Air-Gap intake manifold #7516, Thunder Series AVS carb #1813 and Performer RPM E-Tec cylinder heads #60985 on a 383 c.i.d. Small Block Chevy engine. Use with a high stall torque converter and stock ratio rocker arms only. Camshaft specifications: – Intake duration: 242 Degrees – Exhaust duration: 240 Degrees – Intake lift: .594" – Exhaust lift: .594" – Lobe separation: 112 Degree – Intake Center Line: 107 Degree – Vacuum: 11"

Additional Attributes:

GTIN: 00085347022076
Advertised Exhaust Duration: 314
Advertised Intake Duration: 305
Cam Type: Roller
Computer Controlled Compatible: No
Exhaust Duration at .050 inch Lift: 240
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.594
Exhaust Valve Lift: 0.396
Intake Duration at .050 Inch Lift: 305
Intake Valve Lift with Factory Rocker Arm Ratio: 0.594
Intake Valve Lift: 0.396
Lifter Type: Roller
Lobe Separation: 112
RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.

Extended Information:

Emissions : EPA Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 25.62 x 2 x 2 inches
Weight: 8.665 PG

PDF:

2207_Card
