Engine Block

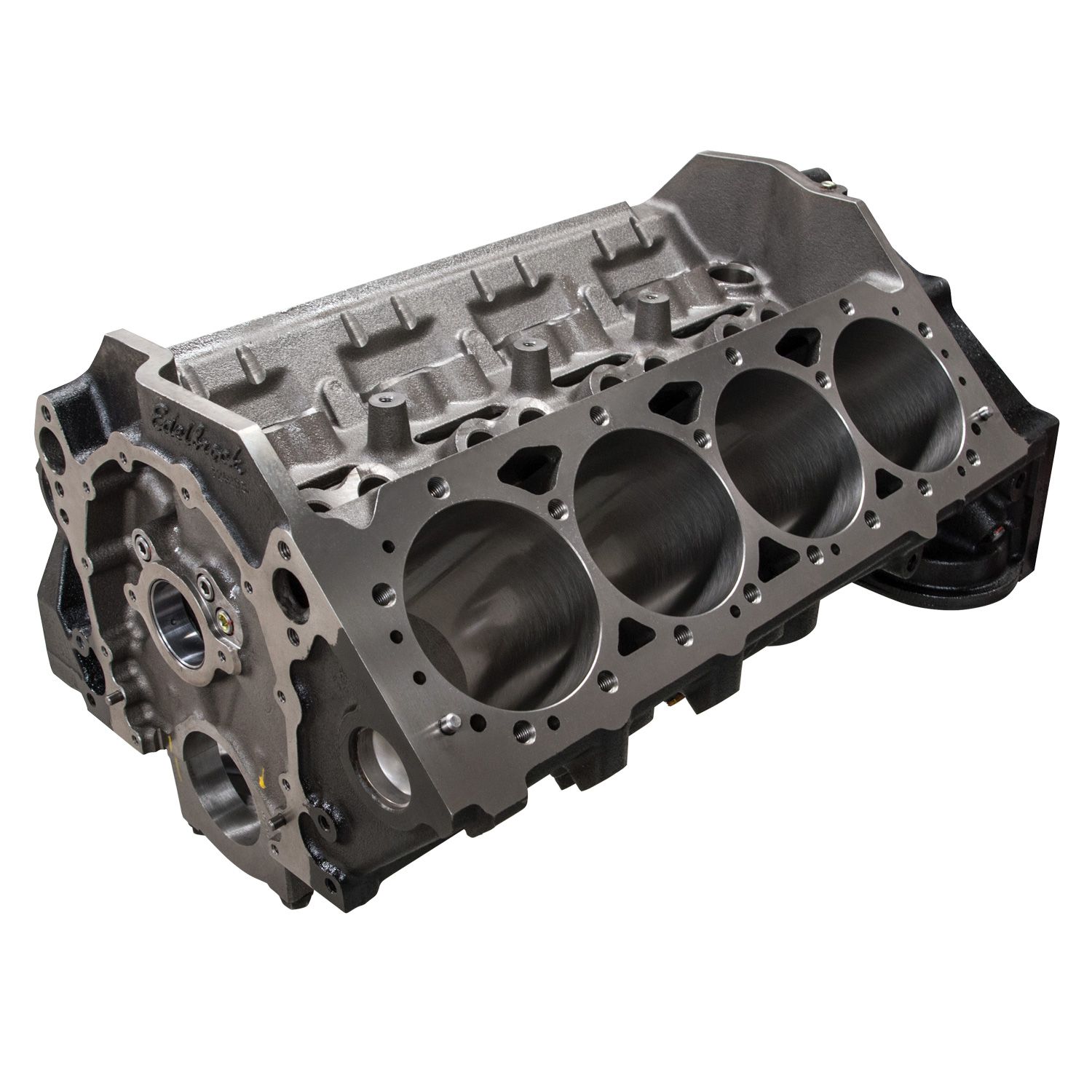

Edelbrock engine blocks are the ideal starting point for any high-performance build that demands the quality and precision of an American-manufactured product. The Edelbrock 400 Small-Block Chevy Block #4500209 is a semi-finished bare cast-iron engine block with a rough bore size of 4.120 inches (+/- .001), a rough deck height of 9.031 inches, and a cam bearing bore ID of 2.00 inches with a two-piece rear main seal. The semi-finished deck and bores allow an engine builder to machine the block to nominal deck heights and bore diameters using their own finish specifications. This SBC #4500209 Block features Siamese cylinder bores and splayed four-bolt mains to meet the demands of a high-horsepower build. Features include a standard SBC head bolt pattern and camshaft position, standard 400 SBC main bearing size, standard SBC starter location, and compatibility with standard SBC timing chain, gears and 8-or 10-bolt timing cover.

Additional Attributes:

GTIN: 00085347895823
Cam Bearing Bore ID: 2.000
Cap Material: Nodular Iron
Construction Type: Bare Block
Cylinder Bore Diameter: (Rough) 4.120 +/- .001
Cylinder Quantity: 8
Cylinder Wall: Siamese
Deck Height: (Rough) 9.031
Engine Stroke: (Max Recommended) 3.750
Fuel Type: Gasoline
Grade Type: Performance
Inside Head Stud Bosses: No
Lifter Bore Diameter: Standard Small-Block Chevy
Main Bearing Bore Diameter: (Rough) 2.8408 +/- .0004
Main Bearing Cap Bolt Quantity: 4-Bolt
Main Cap Type: Splayed
Material: Cast Iron
Mount Hole Shape: Standard
Piston Bore Sleeve Material: Cast Iron
Quantity: Sold Individually
Rear Main Seal Type: 2-Piece
RGL: WARNING: This product can expose you to Chromium, Lead, and Zinc which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Standard Or Reverse Rotation: Standard
Stud And Bolt Holes: Standard
Timing Chain Type: Standard Small-Block Chevy
Timing Cover: 8 Or 10-Bolt
Type: Small-Block Chevy

Extended Information:

Emissions : EPA Eligible
Life Cycle Status: Obsolete

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 24 x 21.5 x 18 inches
Weight: 255 PG
