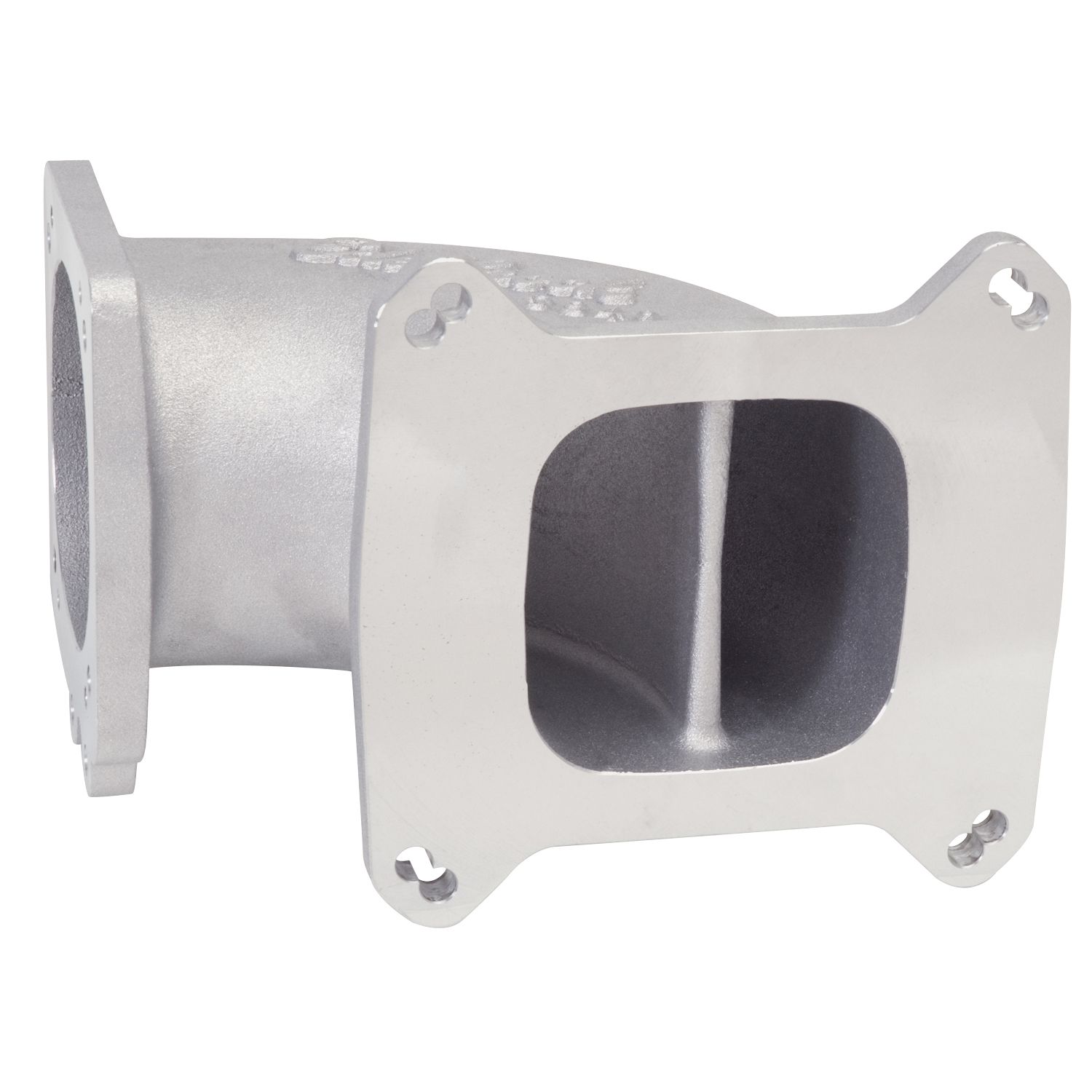

Engine Air Intake Deceleration Elbow

The Edelbrock 3849 Intake elbows was developed by the Edelbrock engineering team using the latest in Computational Fluid Dynamic (CFD) software. Edelbrock Throttle Body Elbows are the best way to adapt LS1, LS2 and Ford 5.0L-based throttle bodies to EFI manifolds with traditional square-bore mounting pads. An internal divider optimizes flow quantity and distribution into the manifold and they can be mounted forward, backward, or sideways on Victor EFI square-bore manifolds. Three versions allow EFI tuners to position the throttle body low for hood clearance or higher for maximum airflow. Available in satin or black powder coated finish. All Edelbrock Throttle Body Elbows include a universal throttle cable bracket. High Flow Intake Elbow 3849 can be used with up to a 95mm Throttle Body.

Additional Attributes:

GTIN: 00085347038497
Adapter Included: No
Bore Centerline Height: 4.5
Finish: Satin
Flange Angle: 90
Gasket Or Seal Included: Yes
Length: 5.50
Material: Aluminum
Overall Height: 7.75
Quantity: Sold Individually
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Size: 90
Type: High Flow

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 13.5 x 6.81 x 6.5 inches
Weight: 5.85 PG
